Remote control with button | 2 zones | wall mounting
€39.00
Available, delivery time: 3-5 days

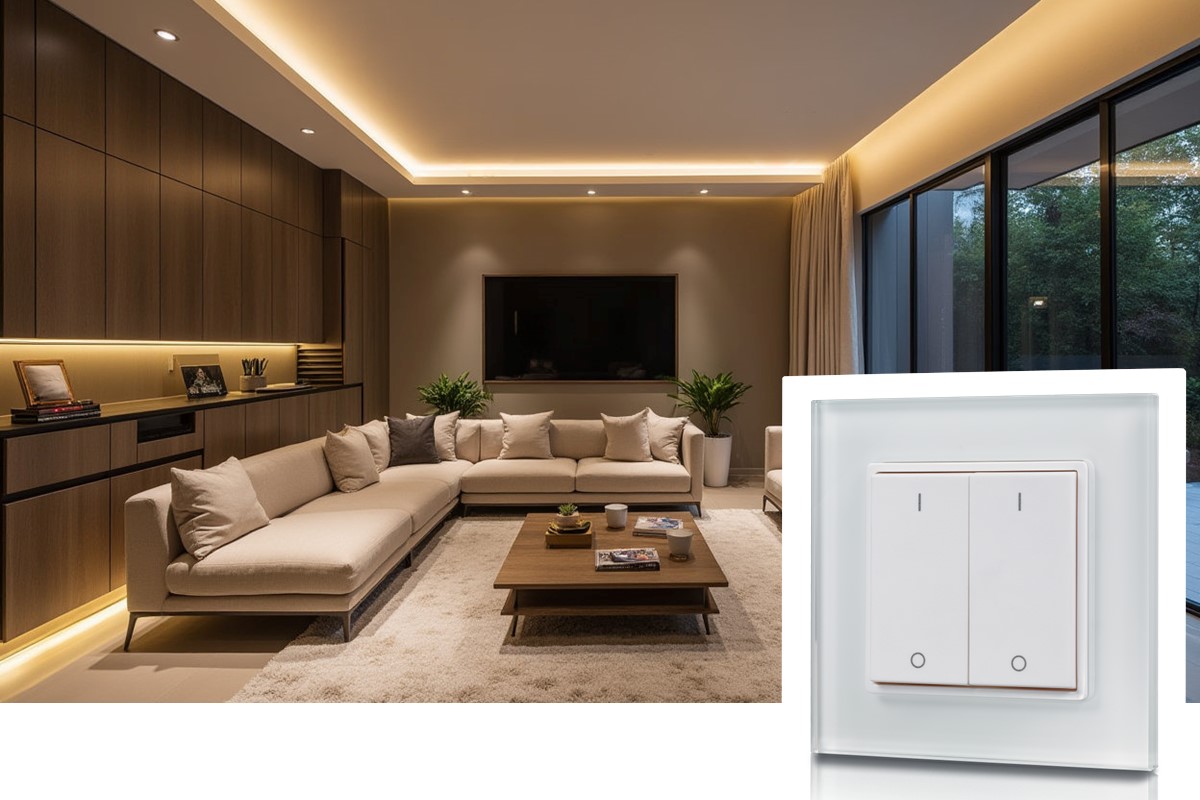

Pushbutton/dimmer for wall mounting or, thanks to the ultra-flat design, directly for gluing or screwing onto the wall.
- for universal driver of the LK55 series
- Operateable zones: 2
- Power supply: 3V CR2430 battery
Use in a standard switch series
Since the stylus uses the standardized 55mm dimension (55x55mm), another frame can also be used. The central pushbutton can be removed and inserted into the frame of a known switch series, e.g. JUNG AS 500, MERTEN M, GIRA System 55 or GIRA E2. All major manufacturers have switch series in their program that fit the 55 standard dimension.
LK55 series
All remote controls can operate all drivers / receivers of the LK55 series and, if required, also the WiFi driver LK35.
It is also possible for several remote controls to operate one driver. E.g. a handheld remote control and an additional wireless wall panel or several wireless wall panels at different positions in the room. If required, up to 8 remote controls can operate 1 driver.
The range of the radio signal is up to 30m. Visual contact is not necessary. Solid walls made of concrete, brick or similar naturally weaken the radio signal.
NOTICE:
The LK55 remote control for pure dimming should not be used in combination with CCT LED strips (adjustable color temperature) or RGBW LED strips, but only for pure white LED strips with fixed color temperature. Background: When dimming via you would lose all color settings here, because the LED drivers drive all outputs (RGBW or WW/KW) down or up identically. Instead, dim via the appropriate CCT or RGBW remote controls.
Technical data:
| Item no. | LK55K |
| Power supply | 3V CR2430 batteries |
| Dimensions (BxWxD) | 86x86, Installation depth: 13mm |
Installation:
Recommended driver
Alternative Funkwandsteuerungen
