WAGO's new COMPACT connection terminal 221 is suitable for all types of conductors. The operating levers move smoothly, yet you have a wide range for the cross-section and a secure connection.
Technical data:
Total number of potentials
1
Color
transparent
Design data according to 1
EN 60664
Rated voltage EN (1) [V]
450
Rated surge voltage (1) [kV]
4
Rated current (1) [A]
32
Connection technology (1)
CAGE CLAMP®
Ladder type 1
solid + stranded
Cross section from
0.2 mm² / 24AWG
Cross section until
4 mm² / 12 AWG
Ladder type 2
finely stranded
Cross section from
0.14 mm² / 24 AWG
Cross section until
4 mm² /12 AWG
Stripping length from
11 mm
Wiring type
Side wiring
Flammability class according to UL 94
V2
Weight [g]
2,5
Width 2/3/5 pole
13.1/18.7/29.9 mm
Height
8.3 mm
Depth
18.6 mm
Compact holders for the narrow D2411 feed-through connectors from WAGO. In each case, 3 or 5 terminals fit next to each other, thus enabling clean installation, e.g., in the control cabinet or in a light cove.
Waterproof gel box for WAGO terminals. Simple, fast and safe handling Immediately ready for use and accessible again Silicone-free Label-free Can be stored indefinitely Complete system consisting of gel boxes and WAGO terminal blocks is VDE-tested and IPX8-certified Dimensions: W 46 x H 18 x D 34mm, width inside 35mmSuitable for: 2 x W221-2 or 1 x W221-5
Holders for WAGO's 221 terminal blocks. One terminal can be inserted into each holder. Several holders can be plugged together, and different ones can also be combined. Each holder can be screwed on via holes. In addition, there are lugs for cable ties. However, these tabs can be easily removed if they are not needed. The tabs can simply be broken off for this purpose.
Barrel socket as counterpart for DC connection power supplies or similar with spring-loaded terminals for connection cables up to max. 2.5mm².Max. current: 3A
Barrel socket as counterpart for DC connection power supplies or similar with spring-loaded terminals for connection cables up to max. 2.5mm², quick assembly possible.
Max. current: 3A
Barrel plug as counterpart for DC connection power supplies or similar with spring-loaded terminals for connection cables up to max. 2.5mm², quick assembly possible
Max. current: 3A
Plug connector plug/coupling MR30 for up to 15A rated current Solder connection AWG 16 - 1,5mm² twist-proof Dimensions: 12 x 5 x 15mm / 12 x 5 x15mm
This version comes with approximately 5cm of cable already soldered.
Plug connector 3-pin plug/coupling MT60 for up to 30A Solder connection up to AWG12 - 4mm² Gold contacts twist-proofDimensions: 12.5 x 12.5 x 32 mm / 12.5 x 12.5 x 33 mm
Set of plug and socket for strips or similar connections
Connector plug/socket 2-pole for voltage connection dig. Stripes
Max. connection power: 3 Ampere per contact
each approx. 10cm connection cable pre-crimped
Set of plug and socket for digital stripes or CCT connections with 3 connectors.
Please note: The assignment of the plugs/sockets can be different in different deliveries!
Max. connection power: 3 Ampere per contact
each approx. 10cm connection cable pre-crimped
Set of plug and socket for digital stripes or similar connections with 4 connectors.
The wires have a cross-section of 0.519mm² (20AWG) each.
Please note: The assignment of the plugs/sockets can be different in different deliveries!
Max. Connected load: 3 Ampere per contact
each approx. 10cm connection cable pre-crimped
Set of plug and socket for RGBW LED strips or other connections with 5 connectors
Max. Connected load: 3 Ampere per contact
Width: 19mm
height: 9mm
each approx. 10cm connection cable pre-crimped
Set of plug and socket for RGBW LED strips or other connections with 5 connectors
IP67 waterprotected with 2 x 1m cable
Max. Connected load: 5 Ampere per contact
Diameter: 16mm
Lenght of complete connectors: 82mm
Cable (1m pre-crimped) with 2 x 1mm² and 3 x 0.3mm²

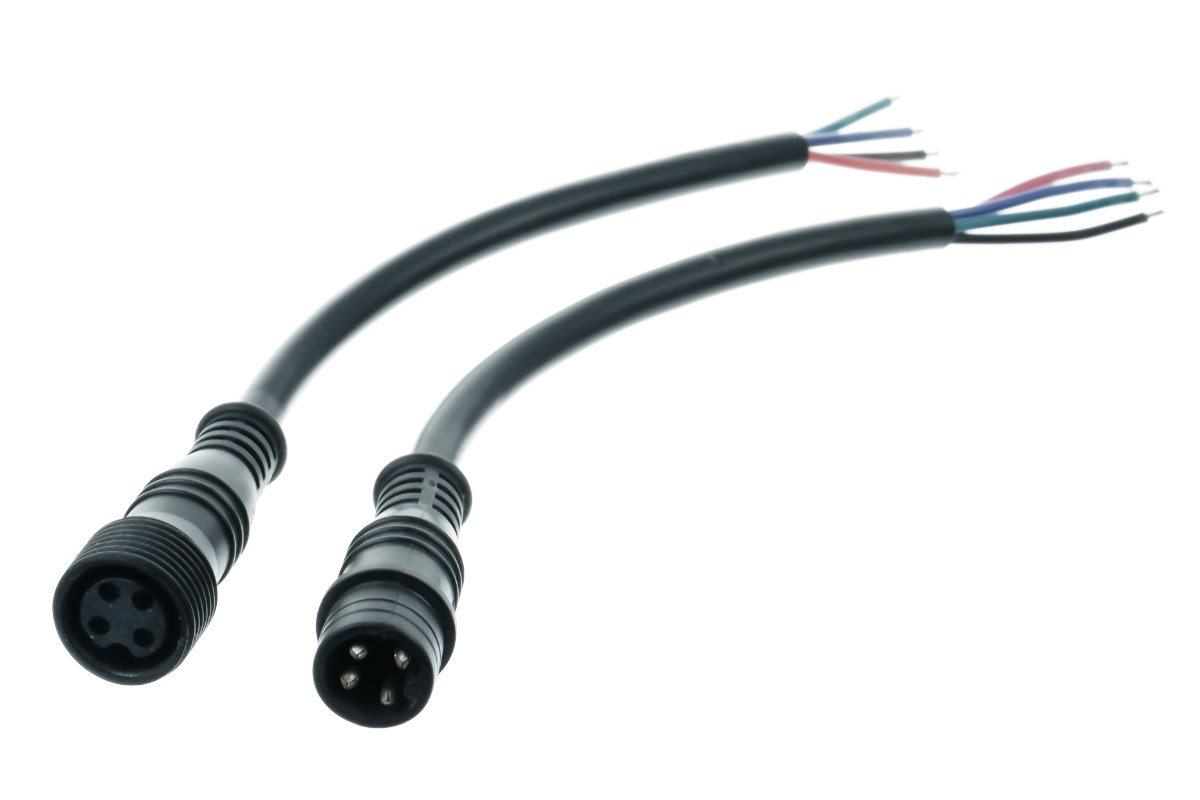

Set of plug and socket for digital stripes or similar connections with 4 connectors, waterproof design, round.
cable cross section: 0,75mm² with PVC jacket
diameter of connector: max. 20mm
each approx. 10cm connection cable potted
