LED starter sets radio controled and ZigBee

Our LED sets contain attuned components with which you can also accomplish bigger LED-installations. Hereby we offer solutions for installations with either a fixed or an adjustable colour temperature as well as with coloured RGBW effects. All sets contain:

LED-stripes with a length of 5, 10, 15 or 20m
a suitable power supply
a suitable controller (receiver) for the LEDs
a selection of remote controls to set the LED lighting

LED sets with classic radio controls

These sets work with our LK55 controllers and can be operated with various radio controls (no visual contact required)

:Classic hand-held remote controls
Radio wall control with push-button, rotary knob or touch control
Built-in modules for normal wall switches (GIRA, BJ, JUNG, etc.)
Optional app control via WLAN controller

LED sets with RF-control

These sets work with our LK55 RF-controllers and can be controlled via different remotes:

classical hand-remotes
wall mounted button, rotary or touch controls
fitting modules for nomal wall mounted pushbuttons (BUSCH JÄGER, JUNG etc.)
optinally controllable via app with our wifi-controller

Because of the RF-technology a line-of-sight connection between the controller and remote is not required. Connections of up to 25m can be realised outdoors. Light construction walls like plasterboard or wood can reduce the range. Massive walls like (reinfoced) concrete or brickwall can heavily reduce the range or block the connection completely.

RF LED sets for accent lighting

Set for accent lighting - White LEDs

Product number: Set-26b-mas

€0.00*

Details

Set for accent lighting - Adjustable colour temperature

Product number: Set-9d-mas

€237.00*

Details

Set for accent lighting - colour effects with RGBW LEDs

Product number: Set-6r-mas

€0.00*

Details

RF LED sets for main lighting

Set for bright main lights - White LEDs

Product number: Set-14b-mas

€229.00*

Details

Set for bright main lights - Adjustable colour temperature

Product number: Set-9f-mas

€286.00*

Details

Set for bright main lighting plus colour effects - RGB+WW

Product number: Set-6o-mas

€303.00*

Details

LED sets for smart home control

These sets work via the ZigBee wireless protocol and can therefore be integrated into popular smart home systems such as:

PHILIPS HUE
IKEA SMARTHOME
and many more.

Voice control of the lighting, e.g. via AMAZON ALEXA or GOOGLE HOME, can then also be realized.

LED sets for smarthome-control

These sets work with the ZigBee-protocol (ZigBee 3.0) and thus can be integrated into popular smarthome-systems like

PHILIPS HUE
IKEA TRÅDFRI
and much more.

Furthermore the lighting can be controlled by voice command, i.e. via AMAZON ALEXA or GOOGLE HOME.

Smarthome LED sets for accent lighting

ZigBee LED set for accents - White LEDs

Product number: Set-zigbee-26b

€162.00*

Details

ZigBee LED set for accents - Adjustable colour temperature

Product number: Set-zigbee-9d

€213.00*

Details

ZigBee LED set for accents - colour effects with RGBW LEDs

Product number: Set-zigbee-6d

€213.00*

Details

Smarthome LED sets for main lighting

ZigBee LED set for main light - White LED

Product number: Set-zigbee-14b

€223.00*

Details

ZigBee LED set for main light - Adjustable colour temperature

Product number: Set-zigbee-9f

€254.00*

Details

ZigBee LED set for main light - Plus colour effects - RGB + WW

Product number: Set-zigbee-6o

€264.00*

Details

How are the LED strips supplied?

We supply the LED strips in the sets on 5m rolls with a 10cm connection cable. Cables can be extended quickly and safely, e.g. with WAGO terminals.

Can the LED strips be shortened / divided?

You can shorten all the ribbons at the marked points (every 5 cm or 10 cm). The remaining pieces can be reused. Corresponding contacts for new connection cables are available on all cut markings.

Connectors or soldering?

Connectors / clips for LED strips tend to oxidize and lose their contact over time. At higher currents, scorched connections (cable fire) cannot be ruled out. We only recommend soldering for new connection cables and can offer corresponding services if required.

Are the LED strips self-adhesive?

Yes, all tapes have high-quality 3M adhesive tape on the back.

Are additional components required?

Depending on the projectextension cablesandWAGO terminalsrequired for installation. We always recommend bonding all LED strips to metal / aluminum for heat dissipation. Ideally suited for this are ouraluminum LED profileswith covers, e.g. the smallPL1.

I have a project with a circumference of over 20m? Are there also sets for this?

We also offer all components that are offered in the sets individually, so that all necessary components can be put together individually, even for larger projects. You are welcome to make an appointment for a consultation.

Further tips and assistance

In our blog posts (german), we provide lots more tips and information on installing your project. Find out, for example, about important aspects of LED installations or the optimum cabling for small and large projects. We also offer tools for calculating amperage, cable cross-sections and much more.

Aluminum profiles

Glue all LED strips to aluminum profiles so that the LEDs can dissipate their heat loss and achieve a long service life. We offer a large selection of aluminum profiles with covers for this purpose.

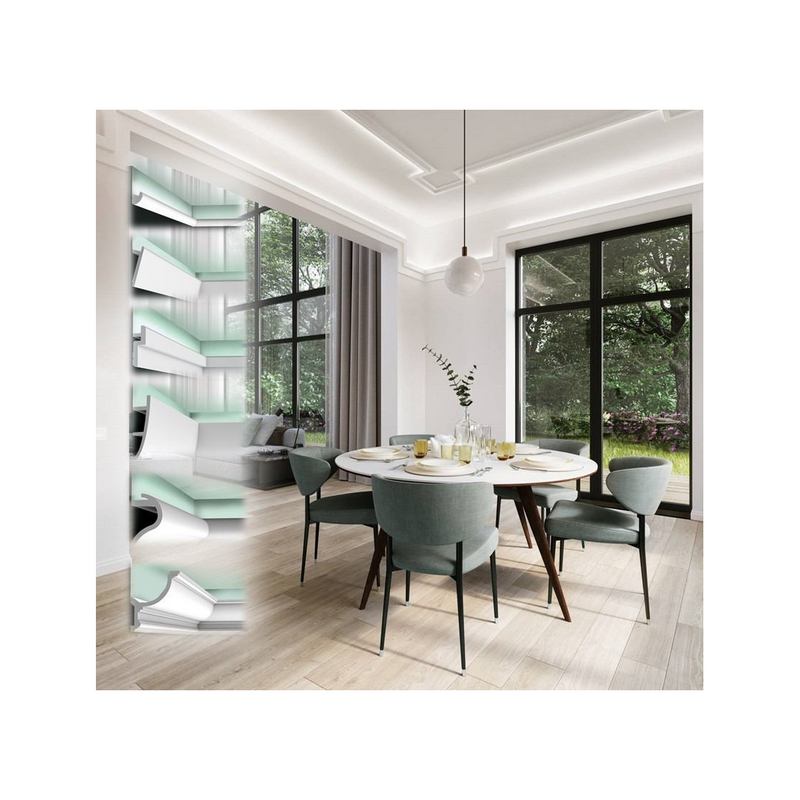

Light coves

The stucco strips are made of high-density DUROPOLYMER or PUROTOUCH and are easy to stick to the wall and/or ceiling. Equipped with our LED sets, this creates high-quality indirect lighting.

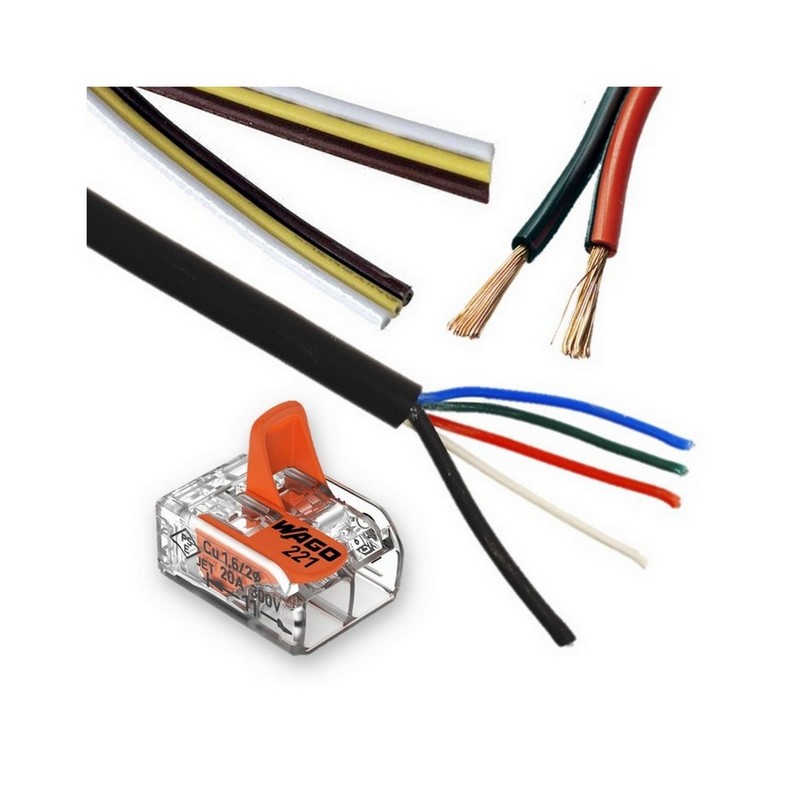

Cables and connectors

To set up the installation, you may need extension cables and WAGO terminals to connect all LED strips to the controllers.

Why we do not offer sets with COB LED strips

We receive many inquiries about COB LED strips - i.e. special LED strips without visible individual LEDs. However, in 90% of inquiries, COB variants are not necessary or even disadvantageous. You only need COB LEDs if you are implementing direct LED lighting in the visible area with very flat aluminum profiles (such as PL1). For all other applications, e.g. indirect lighting, normal LED strips are better than COB. COB have a significantly higher voltage and brightness drop and cost more than normal LED strips. Only use COB if the project requires it!

For these cases, we naturally also offer corresponding COB LED strips as FreeCut, in CCT or RGB and will be happy to put together individual COB LED sets for you.

We receive many inquiries about COB LED strips - i.e. special LED strips without visible individual LEDs. However, in 90% of inquiries, COB variants are not necessary or even disadvantageous.

You only need COB LEDs if you are implementing direct LED lighting in the visible area with very flat aluminum profiles (such as PL1). For all other applications, e.g. indirect lighting, normal LED strips are better than COB.

COB have a significantly higher voltage and brightness drop and cost more than normal LED strips. Only use COB if the project requires it!

For these cases, we naturally also offer corresponding COB LED strips as FreeCut, in CCT or RGB and will be happy to put together individual COB LED sets for you.
