LK55 Universal Controller | 4 x 4A

€59.00*

Prices incl. VAT plus shipping costs

Available, delivery time: 3-5 days

Driver version

4 x 4A

4 x 6A

4x4A, water protected

Product number: LK55

Available stock: 93

Universal driver with 4 outputs, each capable of carrying 4 amps.

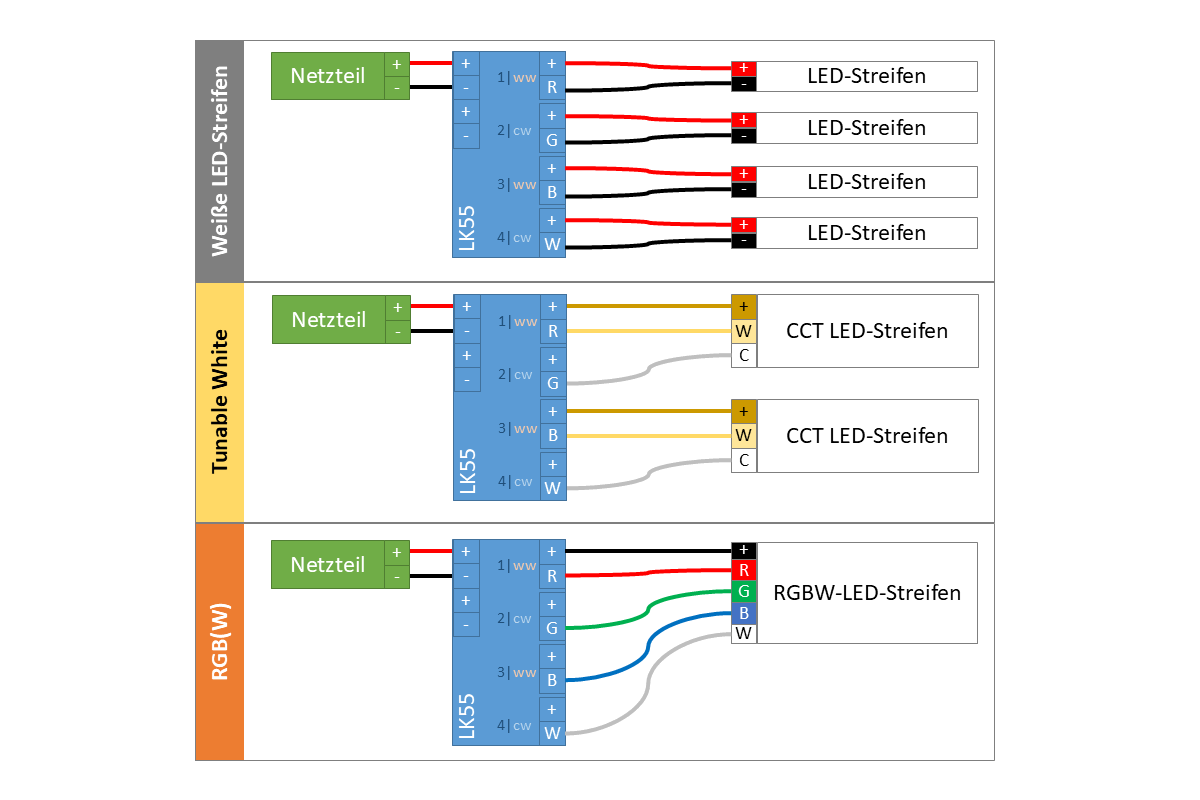

When used as a dimmer, 4 parallel outputs are available, which are controlled identically. The designations "RGBW" and "cw" and "ww" can be ignored in this case.

When used as a color temperature driver, 2 outputs each are available for warm white ("ww") and cool white ("kw") LEDs. Note the corresponding labeling on the driver.

When used as an RGB(W) driver, the 4 outputs take over the separate control of the red (R), green (G), blue (B) and possibly white (W) LEDs. The outputs are labeled accordingly.

The driver is installed between the power supply and the LED components (e.g. LED strips, LED panels).

Notes:

All drivers of our LK55 series remember the last setting even in case of power loss.

If you want to operate several light zones independently of each other, several drivers are always necessary. Drivers with several outputs (like here 4 x 4A) are not suitable to operate several zones, because the outputs can only be controlled together (parallel).

Technical data:

Voltage: 12V-36V DC
Power: Power connection via external switching power supply (not included)
Load: 4A per output port
Min. dim level: <1% (for RGB/W <3%)
Connection: input: V+/ground; output: 4x minus,V+
IP class: IP20

Dimensions: LxWxH 179x46x22mm

Note: The driver has double voltage inputs (++--). For high connected load (> 200 Watt), use our special connection cables for high connected loads (> 200 watts) in order to divide the current load between the two inputs. The large power supplies HLG-480 and HLG-600 already have double voltage outputs, so that both voltage inputs of the driver can be used directly here.
