Aluminium profiles
Aluminum profiles, also called LED bars or LED profiles, are an ideal and often even necessary addition to your LED installation.
- They are made of anodized aluminum that dissipates the heat loss of the LEDs and thus ensures a long service life of the LEDs.
- Covers (transparent or milky opal) are available for all profiles to protect the LEDs. This also allows the installation to be wiped clean.
- If the LED installation is in the visible area, it is visually enhanced by a profile. You get an elegant, slim LED luminaire.
- Surface-mounted profiles in U-shape for mounting on suspensions, coving, furniture, etc.
- Insert profiles for mounting in (milled) grooves or between 2 panels
- Angle or corner profiles for slanting the LED strips
- Drywall profiles for mounting on or in plasterboard, etc.
- Tile profiles for mounting LED strips on or in tile mirrors
If needed, you can order 10cm samples of the profiles.
2m LED-Micro-profile PL1
€15.40*
The LED micro profile PL1 looks very inconspicuous due to its particularly narrow and flat design. It is mainly used indoors. The groove of the profile can hold up to 12 mm wide LED strips. In addition, this aluminum profile provides improved heat dissipation from the LED strips, which increases their service life.
Technical data:
Width: 16.8 mm
Height: 6 mm
Length: 2 m
Width inside for LED strips: 12.4 mm
Other mounting options and accessories for line lights
If you want to realize long line lights, pendant lights or a hidden cable routing with this profile, choose the matching mounting rail PL10 with corresponding accessories.
The mounting rail is available in silver, black & white.
Further are available:
Rail connectors straight and angled
Cable suspensions
Mounting springs for fastening in drywall
Product number:
AL21bund
2m LED-Top-profile PL2
€17.00*
The LED top profile PL2 looks very inconspicuous due to its narrow and design. It is mainly used for indoor applications. The groove of the profile can hold up to 12 mm wide LED strips. In addition, this aluminum profile provides heat dissipation from the LED strips, which increases their service life.Technical data:
Width: 16.8 mm
Height: 13.1 mmLength: 2m
Width inside for LED strips: 12.4 mm
Other mounting options and accessories for line lights
If you want to realize long line lights, pendant lights or a hidden cable routing with this profile, choose the matching mounting rail PL10 with corresponding accessories.
The mounting rail is available in silver, black & white.
Further are available:
Rail connectors straight and angled
Cable suspensions
Mounting springs for fastening in drywall
Product number:
AL24bund
2m LED profile EL12
€17.40*
The small E12 LED corner profile has a very unobtrusive appearance thanks to its slim and flat design. It is mainly used indoors. The groove of the profile can hold LED strips up to 20 mm wide. This aluminum profile also ensures improved heat dissipation from the LED strips, which increases their service life. Please note that due to the compact design of the profile, LED strips with less than 180 LEDs/m will show the first LED dots in the profile cover. Use COB LED strips if necessary. Technical data:
Width: 17 mm
Height: 8 mm
Length: 10 cm sample
Width inside for LED strips: 12 mm
Other mounting options and accessories for line lights
If you want to realize long line lights, pendant lights or a hidden cable routing with this profile, choose the matching mounting rail PL10 with corresponding accessories.
The mounting rail is available in silver, black & white.
Further are available:
Rail connectors straight and angled
Cable suspensions
Mounting springs for fastening in drywall
Technical data:
Width: 17 mm
Height: 8 mm
Width inside for LED strips: 12.2 mm
Product number:
AL53bund
2m LED profile DL12
€18.40*
The LED top-mounted profile D12 is very unobtrusive thanks to its slimline design. It is mainly used indoors. The groove of the profile can hold LED strips up to 12 mm wide. This aluminum profile also dissipates heat from the LED strips, which significantly increases their service life. The installation depth of over 14 mm means that LED points are completely avoided with LED strips with a density of 72 LED/m or more, resulting in a perfect, homogeneous light line.Technical data:
Width: 17 mm
Height: 14.6 mm
Length: 10 cm sample
Width inside for LED strips: 12 mm
Other mounting options and accessories for line lights
If you want to realize long line lights, pendant lights or a hidden cable routing with this profile, choose the matching mounting rail PL10 with corresponding accessories.
The mounting rail is available in silver, black & white.
Further are available:
Rail connectors straight and angled
Cable suspensions
Mounting springs for fastening in drywall
Technical data:
Width: 17 mm
Height: 14.6 mm
Width inside for LED strips: 12 mm
Product number:
AL54bund
2m LED top profile S16 (for LED strips up to 16mm wide)
€19.00*
The S16 LED profile is very unobtrusive thanks to its slim and flat design. It is mainly used indoors. The groove of the profile can hold LED strips up to 16 mm wide. This aluminum profile also ensures improved heat dissipation from the LED strips, which increases their service life. It is also suitable for more powerful LED strips with e.g. 20W/m.
Technical data:
Width: 21 mm
Height: 9 mmLength: 2 m
Width inside for LED strips: 16 mm
Product number:
AL47bund
2m LED top profile PN4 wide (for 2 parallel LED strips)
€28.80*
The PN4 LED surface-mounted profile has a slim design and is suitable for LED flexbands up to 24 mm wide. It can be used in a variety of indoor applications. In combination with the PL10 universal cable channel, it can be used as a pendant luminaire with wire suspension or as a permanently mounted LED luminaire with mounting springs. It is suitable for general room and object lighting as well as for decorative lighting effects.Technical data: Width: 26.8 mm Height: 11.7 mm Length: 5cm sample Width inside for LED strips: 24.1 mm
Other mounting options and accessories for line lights
If you want to realize long line lights, pendant lights or a hidden cable routing with this profile, choose the matching mounting rail PL10 with corresponding accessories.
The mounting rail is available in silver, black & white.
Further are available:
Rail connectors straight and angled
Cable suspensions
Mounting springs for fastening in drywall
Product number:
AL29bund
24mm LED surface mount profile PN6
€36.70*
The PN6 LED surface-mounted profile is a larger profile and is designed for LED strips with a maximum width of 24 mm (including 2 adjacent strips). It is mainly used indoors (also as a stand-alone LED pendant luminaire with wire suspension or as a fixed LED luminaire with mounting springs).Technical data:
Width: 33.6 mm
Height: 26 mmLength: 2 m
Width inside for LED strips: max. 20 mm
Other mounting options and accessories for line lights
If you want to realize long line lights, pendant lights or a hidden cable routing with this profile, choose the matching mounting rail PL10 with corresponding accessories.
The mounting rail is available in silver, black & white.
Further are available:
Rail connectors straight and angled
Cable suspensions
Mounting springs for fastening in drywall
Product number:
AL20bund
2m LED corner profile 45° W12
€17.40*
The small LED corner profile W12 is very unobtrusive thanks to its compact design and aligns the LEDs at 45°, e.g. to illuminate larger areas from a corner. It is mainly used indoors. The profile can hold LED strips up to 12 mm wide. This aluminum profile also ensures improved heat dissipation from the LED strips, which increases their service life. Please note that due to the compact design of the profile, LED strips with less than 180 LEDs/m will show the first LED dots in the profile cover. Use COB LED strips if necessary.
Technical data:
Width: 16 mm
Height: 16 mmLength: 2 m
Width inside for LED strips: 12.8 mm
Product number:
AL46bund
2m LED corner profile 45° W20
€29.00*
The medium-sized LED corner profile W20 aligns the LEDs at 45°, e.g. to illuminate larger areas from a corner. Thanks to its rounded shape, it can also be used precisely in corners that are not perfectly formed and even offers a small space for cable routing, for example. It is mainly used indoors. The profile can hold LED strips up to 20 mm wide. This aluminum profile also ensures improved heat dissipation from the LED strips, which increases their service life. Due to the large distance between the LEDs and the opal cover, LED points are completely avoided with LED strips with a density of 60 LEDs/m or more, creating a perfect, homogeneous line of light.
Technical data:
Width: 30 mm
Height: 30 mmLength: 2 m
Width inside for LED strips: 20 mm
Product number:
AL58bund
2m LED insert profile PL8
€15.40*
The LED insert profile PL8 looks very inconspicuous due to its particularly narrow and flat design. It is mainly used indoors. The groove of the profile can hold up to 12 mm wide LED strips. In addition, this aluminum profile provides improved heat dissipation from the LED strips, which increases their service life.
Technical data:
Width: 23.1 mm
Height: 6 mm
Length: 2 m
Width inside for LED strips: 12.4 mm Dimensions of the milling groove: width min. 17mm | depth min. 5mm
Other mounting options and accessories for line lights
If you want to realize long line lights, pendant lights or a hidden cable routing with this profile, choose the matching mounting rail PL10 with corresponding accessories.
The mounting rail is available in silver, black & white.
Further are available:
Rail connectors straight and angled
Cable suspensions
Mounting springs for fastening in drywall
Product number:
AL22bund
2m LED insert profile PL3
€18.00*
The LED insert profile PL3 looks very inconspicuous due to its narrow design. It is mainly used indoors. The groove of the profile can hold up to 12 mm wide LED strips. In addition, this aluminum profile provides improved heat dissipation from the LED strips, which increases their service life.
Technical data:
Width: 23.1 (insert: 16.8 mm)
Height: 13.1 mmLength: 2m
Width inside for LED strip: 12.4 mm
Other mounting options and accessories for line lights
If you want to realize long line lights, pendant lights or a hidden cable routing with this profile, choose the matching mounting rail PL10 with corresponding accessories.
The mounting rail is available in silver, black & white.
Further are available:
Rail connectors straight and angled
Cable suspensions
Mounting springs for fastening in drywall
Product number:
AL37bund
2m LED insert profile PN5
€28.80*
The PN5 LED recessed profile has a narrow design and is designed for LED flex strips with a maximum width of 24 mm.Technical data:Width: 33.6 mm (insert: 26.8mm) ´Height: 11.7mm Length: 2m Width inside for LED strips: max. 24mm
Other mounting options and accessories for line lights
If you want to realize long line lights, pendant lights or a hidden cable routing with this profile, choose the matching mounting rail PL10 with corresponding accessories.
The mounting rail is available in silver, black & white.
Further are available:
Rail connectors straight and angled
Cable suspensions
Mounting springs for fastening in drywall
Product number:
Al38bund
2M LED-Einbauprofil PN7
€36.70*
The PN7 LED insert profile is a larger profile and is designed for LED strips with a maximum width of 24 mm (including 2 adjacent strips). It is mainly used indoors.Technical data:
Width: 33.7 mm
Height: 26 mmLength: 2 m
Width inside for LED strips: 24 mm
Other mounting options and accessories for line lights
If you want to realize long line lights, pendant lights or a hidden cable routing with this profile, choose the matching mounting rail PL10 with corresponding accessories.
The mounting rail is available in silver, black & white.
Further are available:
Rail connectors straight and angled
Cable suspensions
Mounting springs for fastening in drywall
Product number:
AL25bund
2m IPA profile for indirect lighting
€22.75*
€32.50*
(30% saved)
IPA aluminum profile offers a very simple way to realize indirect lighting. IPA can be mounted directly on edges of plasterboard and other panels, thus forming a light cove and possibly also have space for power supplies and controllers. In the simplest case, a simple ceiling suspension with wooden slats and plasterboard mounted on them, onto which the IPA profiles are then plugged, is sufficient. The profile itself accommodates LED strips, which can be appropriately protected via transparent or milky opal covers.
Choose the number of profiles you need and a suitable cover.
Example of IPA assembly:
Technical data:
Width inside for LED strips: 12mm
Panel thickness: 12.5mm (16mm on request)
Dimensions:
Product number:
AL33bund
SALE: 2m APA profile for indirect lighting
€22.75*
€32.50*
(30% saved)
APA aluminum profile offers a very simple way to realize indirect lighting. APA can be mounted directly on edges of plasterboard and other panels, thus forming a light cove and possibly also have space for power supplies and controllers. In the simplest case, a simple ceiling suspension with wooden slats and plasterboard mounted on them, onto which the APA profiles are then plugged. The profile itself accommodates LED strips, which can be appropriately protected via transparent or milky opal covers.
Choose the number of profiles you need and a suitable cover.
Example of APA assembly:
Technical data:
Width inside for LED strips: 12mm
Panel thickness: 12.5mm (16mm on request)
Dimensions:
Product number:
AL40bund
2m LED drywall profile TBP4 - only on request!
€24.00*
Drywall profile for use on the edge of standard 12mm thick gypsum board.
The drywall profile TBP4 is currently only available on request. Delivery time approx. 3 weeks.
Technical data:
Width: 47 mm
Height: 13.5 mmLength: 2 m
Width inside for LED strips: 14 mm
Product number:
AL52bund
2m LED drywall profile TBP3 - only on request!
€33.50*
Drywall profile for use in standard 12mm thick gypsum board.
The drywall profile TBP3 is currently only available on request. Delivery time approx. 3 weeks
Technical data:
Width: 77 mm
Height: 13,5 mmLength: 2 m
Width inside for LED strips: 14 mm
Product number:
AL57bund
2m LED light cove profile for indirect lighting
€23.50*
Our cove lighting profile offers the ideal solution for sophisticated, indirect ceiling lighting. It is positioned on the front edge of the plasterboard cove and then filled to ensure seamless integration into the ceiling structure. The 45° angled alignment of the LEDs creates a harmoniously wide, soft light effect, while the front visible edge prevents the light source from being directly visible and causing glare.
A decisive factor for the lighting result is the opal cover of the LEDs. It not only protects against dust and dirt, but also ensures pleasant light distribution. The milky appearance of the opal cover mixes the hard LED light, resulting in uniform, soft illumination of the ceiling. Without this cover, the front visible edge creates a hard shadow on the ceiling, which detracts from the overall appearance. In addition, the cover visually compensates for minor irregularities - such as slight waves when gluing in the LED strip.
For applications where maximum brightness is the top priority, a transparent cover with 85 % light transmission can be used as an alternative. However, this should only be used in exceptional cases, as the softer, more aesthetic lighting effect is reduced.

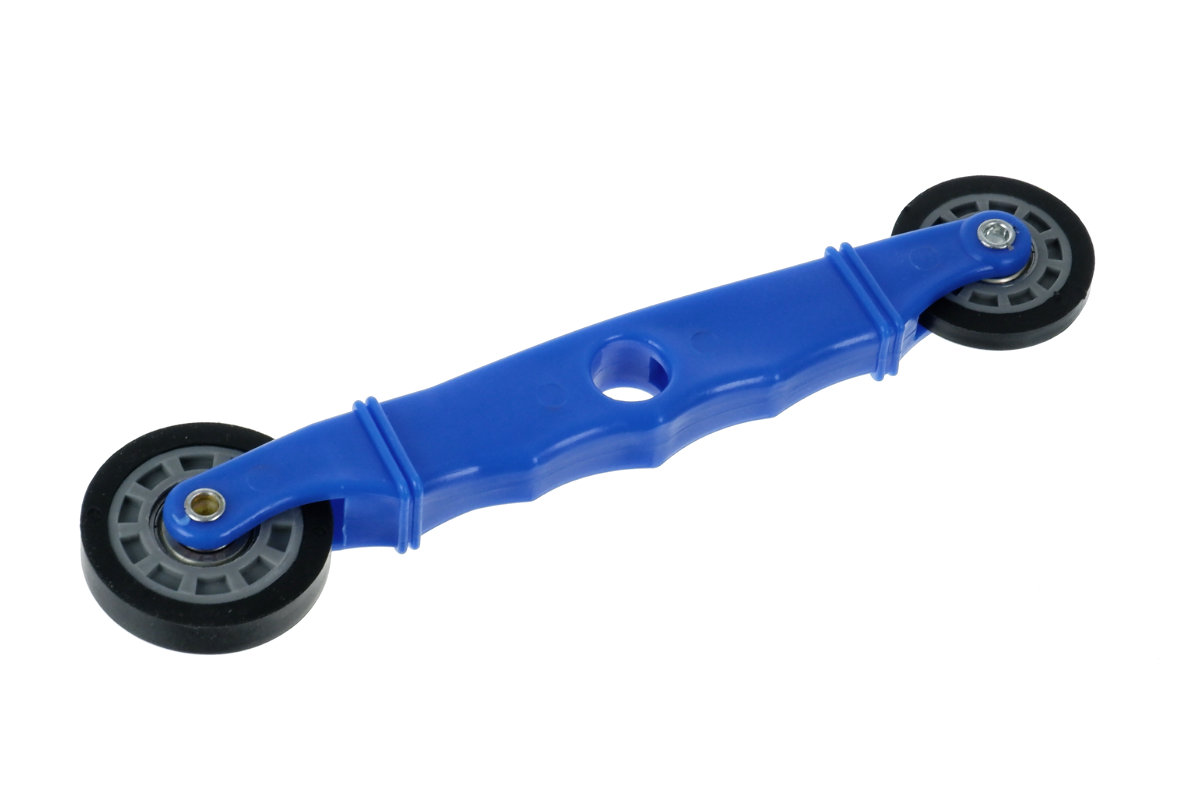

We recommend a pressure roller for gluing and lightly pressing on the LED strips.
Technical data:
Width: 40 mm Height: 30 mm Length: 2 m Internal width for LED strips: 12.5 mm
Color: Weiße Grundierung
Product number:
Al67bund
2m LED plaster profile M20 - only on request!
€22.90*
Plaster profile e.g. for LED lighting in ceiling suspensions.
The plaster profile M20 is currently only available on request. Delivery time approx. 3 weeks.
Technical data:
Width: 61.5 mm
Height: 14 mmLength: 2 m
Width inside for LED strips: 20 mm
Product number:
AL63bund

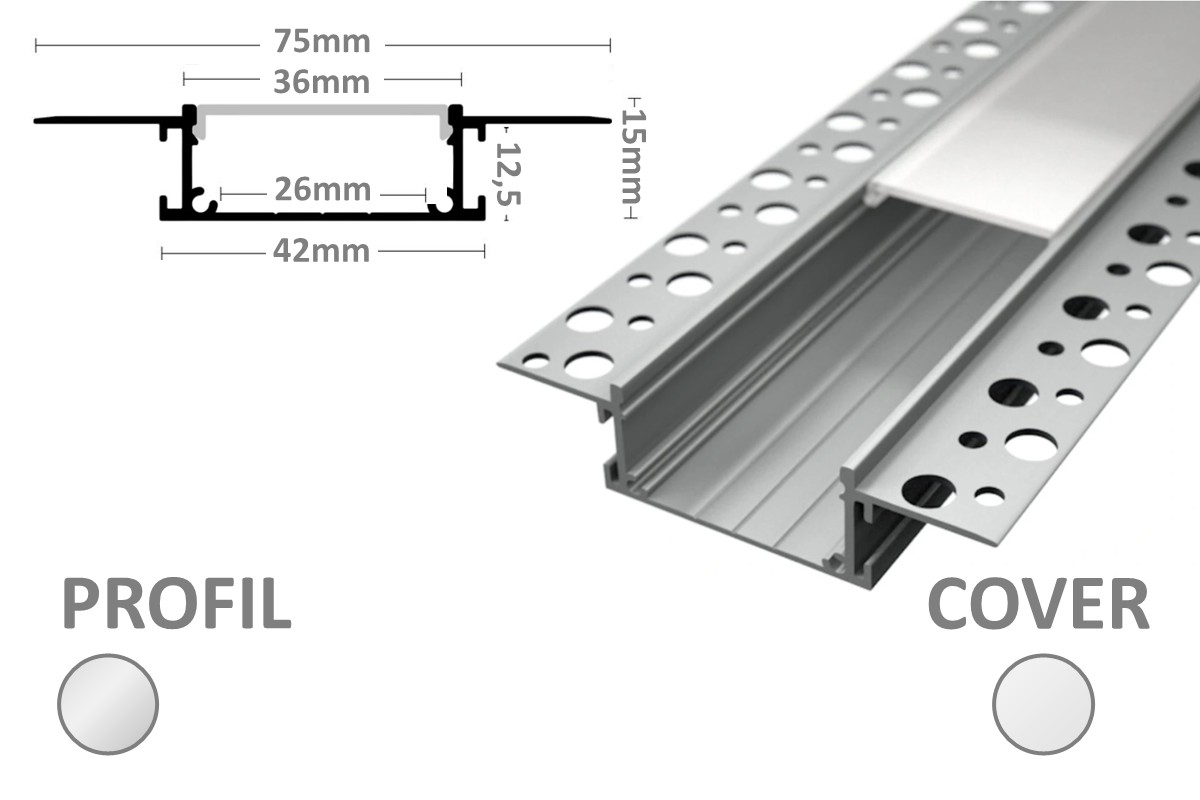

2m LED plaster profile K26 - only on request!
€29.90*
Plaster profile e.g. for LED lighting in ceiling suspensions.
Due to the large depth of the profile, typical LED strips with 60 LED/m and more no longer show individual LEDs, but only a homogeneous light line.
The plaster profile K26 is currently only available on request. Delivery time approx. 3 weeks.
Technical data:
Width: 75 mm
Height: 19 mmLength: 2 m
Width inside for LED strips: 26 mm
Product number:
AL64bund
2m LED plaster profile TBP13 - only on request!
€33.53*
€47.90*
(30% saved)
Choose your required accessories for the aluminum profile. E.g. a suitable cover.
The plaster profile TBP13 is currently only available on request. Delivery time approx. 3 weeks.
Technical data:
Width: 89.2 mm
Height: 25 mm
Width inside for LED strips: 21 mm
Delivery time approx. 3 weeks.
Product number:
AL51bund
2m LED drywall profile TBP2.1
€28.80*
Drywall profile for installation in plasterboard walls.The panels close flush, so that the profile can be plastered or filled afterwards.The profile can accommodate LED strips up to max. 11mm width and thus create a hidden indirect lighting.The profile cover is then clicked into the profile from above.> Video tutorial for TBP2.1 installation
Technical data:
Depth: 12.5 mm
Height: 133 mm
Length: 2 m
Width inside for LED strips: 11.5 mm
Product number:
Al56bund
2m LED floor profile B12
€13.50*
The B12 floor profile is suitable for installing LED light lines in the floor. Thanks to its sturdy construction and 1.5 mm thick opal cover, it is tread-resistant and can also be rolled over. The thick opal cover also ensures good mixing of the LEDs, so that absolutely homogeneous light lines are created from an LED density of 120 LEDs/m. The B12 floor profile is always supplied with an opal cover.
Technical data: Width: 16 mm Length: 2 m Height: 12.7 mm (incl. opal cover)Internal width for LED strips: 13.2 mm Note: The B12 floor profile offers a contact surface of 13.2 mm. However, please note the upper narrowing caused by the support surface for the opal cover. This narrowing is only 10mm wide, which must be taken into account when gluing in the LED strips from above. A typical 12mm wide LED strip can be easily inserted at an angle, but if it is an LED strip in a 12mm wide IP67 silicone tube, it can only be inserted from the side. We recommend a pressure roller for gluing in and lightly pressing on the LED strips.
Product number:
Al66si2
2m Tile LED Profile FP5
€22.75*
€32.50*
(30% saved)
LED tile profile for LED strips up to 12mm wide for integration into the outside corner of a tile backsplash.
Mounting
This profile system has large-area wings (20mm wide) that can be filled with tile adhesive and thus integrated as the outside corner of a tile mirror. The tiles are glued to the wings.
The self-adhesive LED strip is glued into the LED profile. For excellent adhesion of the self-adhesive LED strip, we recommend thorough cleaning and degreasing of the inside of the profile with a cleaner such as isopropanol or extraction petrol.
After the profile cover has been clicked flush into the profile, the open ends are sealed with silicone. Then the LED profile is filled with tile adhesive to the building structure and finally connected to the LED lighting and control technology (power supply unit / controller).
The LED profile covers (opal/satin - light transmittance 65 % | transparent : light transmittance 85 %) are made of unbreakable and hardly combustible polycarbonate (classification flammability UL94V-2) and close flush.
Moisture protection
Use in wet rooms or outdoors is only possible in sealed form. Special protection against moisture and water is provided by silicone, which is applied to the joints for sealing. Absolute watertightness is achieved with LED profile systems by casting with Wepuran casting resin based on polyurethane resin (PUR).
Technical data:
Width: 27.8mm
Height: 11mm
Width inside for LED strips: 12.4 mm
Product number:
AL49bund
5m silicone insert cover 10x10mm
€33.90*
The flexible silicone insert covers are ideal if LED lighting is to be integrated into grooves, e.g. in an acoustic panel. The LED strip is glued into the groove at the bottom (aluminum profiles should be used from 5W/m) and then the silicone insert cover is pressed into the groove from above.The flexible silicone means that curves are also possible and the opal structure of the cover effectively blends LED points (from 120 LEDs/m). The result is a uniform, homogeneous line of light.Please note that this concept is not suitable for high-power LED strips, as there is insufficient cooling effect. Only LED strips with max. 5W/m should be used without an aluminum profile. Slightly higher wattages are also possible with flat aluminum profiles.
Technical data:
Width: 15 mm
Height: 10 mmRequired groove width: 9-10 mmRequired groove depth: min. 10 mm
Max. width for LED strips: 10 mmWe recommend a pressure roller for gluing and lightly pressing on the LED strips.
Product number:
EBC1010mas
Content: 5 Meter (€6.78* / 1 Meter)
5m silicone insert cover 15x10mm
€38.90*
The flexible silicone insert covers are ideal if LED lighting is to be integrated into grooves, e.g. in an acoustic panel. The LED strip is glued into the groove at the bottom (aluminum profiles should be used from 5W/m) and then the silicone insert cover is pressed into the groove from above.The flexible silicone means that curves are also possible and the opal structure of the cover effectively blends LED points (from 120 LEDs/m). The result is a uniform, homogeneous line of light.Please note that this concept is not suitable for high-power LED strips, as there is insufficient cooling effect. Only LED strips with max. 5W/m should be used without an aluminum profile. Slightly higher wattages are also possible with flat aluminum profiles.
Technical data:
Width: 20 mm
Height: 10 mmRequired groove width: 13-15 mmRequired groove depth: min. 10 mm
Max. width for LED strips: 15 mmWe recommend a pressure roller for gluing and lightly pressing on the LED strips.
Product number:
EBC1510mas
Content: 5 Meter (€7.78* / 1 Meter)
Aluminium profile samples (10cm)
From
€1.90*
2m long aluminium profiles are listed in this category.
Product number:
AL-Muster
10m LED tensioning system
€225.00*
The SP01 LED tensioning system allows LED light lines to be freely positioned in the room. This is made possible by 2 wall brackets, between which a 15 mm wide steel strip is stretched. This steel strip can then accommodate an LED strip and shine freely into the room, onto the ceiling or the wall. Direct and indirect lighting solutions with comparatively little installation effort are thus possible. Thanks to the ball joint in the wall brackets, angled lines with angles of 0 - 90° are also possible. The video in the video tab shows many examples. For installation, the supply cable for the LED strip is fed through the wall bracket, then the bracket is screwed on and tensioned. The LED strip is then fully bonded to the steel strip. The result is a filigree line of light without visible cable routing.
Technical data: Max. Length: 10 m Wall bracket diameter: 90 mm Wall bracket structure: 113 - 143 mm Max. Width for LED strips: 15 mm
Product number:
SP01mas
Pressing roller
€35.50*
Pressing roller for gluing LED strips into aluminum profile. The roller is surrounded by a black foam, which can prevent too hard pressing on LED chips and other components. Use the roller only with light and in no case excessive force. Especially practical for narrower, deep aluminum profiles, such as PL2. Width of the pressure roller: approx. 8mmDiameter of the pressure roller: approx. 75mm
Product number:
AL-Z01
Weicon Isolierspray 400ml
€24.90*
Spray for protection against moisture / vapors. Serves as a protective coating for printed circuit boards, electrical connections, electronic components, etc. The spray is also regularly used for LED strips that are exposed to moisture - e.g. in bathrooms or outdoors. After gluing the LED strip into an aluminum profile, the entire strip is sprayed from a short distance. A highly transparent, clear protective film forms over the LED strip, which can very effectively protect the entire LED strip from moisture. For this application we supply a 2nd spray head with a narrower spray angle (see pictures).Use at your own risk! Hazard statements H222 Extremely flammable aerosol. H229 Pressurized container: may burst if heated. H315 Causes skin irritation. H319Causes serious eye irritation. H336 May cause drowsiness or dizziness. H412 Harmful to aquatic life with long lasting effects. Precautionary statements P102Keep out of reach of children. P210 Keep away from heat, hot surfaces, sparks, open flames and other ignition sources. Do not smoke. P211 Do not spray on an open flame or other ignition source. P251 Do not pierce or burn, even after use. P261 Avoid breathing dust/fume/gas/mist/vapor/aerosol. P264 Wash thoroughly after handling. P271 Use only outdoors or in a well-ventilated area. P280 Wear protective gloves/protective clothing/eye protection/face protectionView Sicherheitsdatenblatt
Product number:
ISO01
Light coves made of stucco and polymer for indirect lighting we offer in a separate category.
Hint:
Make sure that the width of the aluminum profile fits the selected LED strip. For example, there are aluminum profiles that can only accommodate strips up to 10mm wide. Wider strips, such as RGBW LED strips with 12mm band can not be installed in these narrow profiles. In this case, choose a profile with a larger width. A milky opal cover diffuses the light of the LEDs so that you notice individual LED dots less or not at all. However, the milky opal cover also swallows some light. Calculate with 30-50% light loss. Alternatively, you can choose a transparent cover for many aluminum profiles. This swallows little light (max. 10%) and still offers effective protection, e.g. when wiping the LED installation. With indirect lighting, the light of the individual LEDs usually mixes after 5cm at the latest. Therefore, a transparent cover is usually sufficient here for a uniform light impression without LED hotspots.Topic: LED strips
Although there are also rigid LED strips on PCB carrier material, LED strips are usually understood as aluminum profiles with LEDs. You can easily make this kind of LED lighting yourself with the aluminum profiles available here and an individually selected LED strip All our LED strips have a 3M adhesive tape on the back and can thus be mounted precisely in the aluminum profiles. This way you get LED strips that exactly fit your needs and have a much wider choice in terms of hue, brightness or even functions, such as adjustable color and color temperature.
