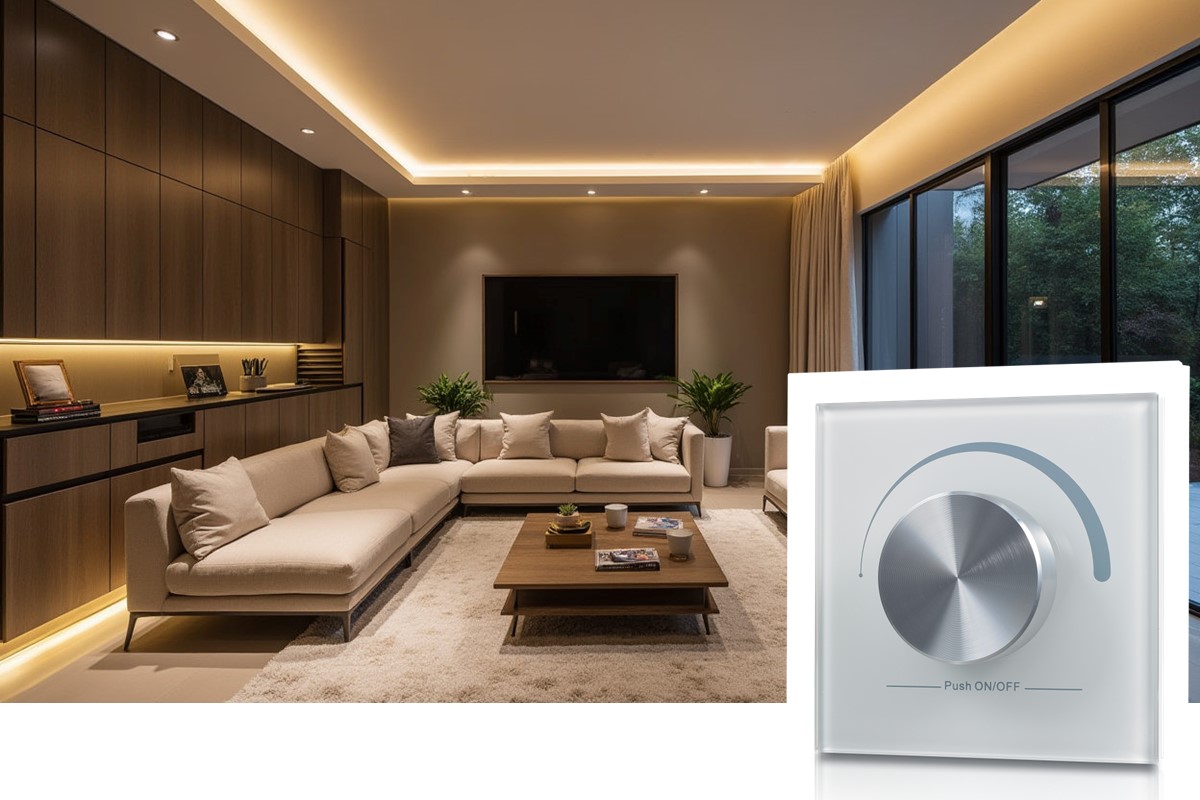

Remote control with rotary knob | wall mounting

€34.00*

Available, delivery time: 3-5 days

Color
Product number: LK55Ww
Available stock: 15

  • for 1-channel receivers of the LK55 series
  • Controllable zones: 1
  • Battery operation: 3V DC, CR2025


All remote controls can operate all drivers / receivers of the LK55 series and, if required, also the WiFi driver LK35.

It is also possible for several remote controls to operate one driver. E.g. a handheld remote control and an additional wireless wall panel or several wireless wall panels at different positions in the room. If required, up to 8 remote controls can operate 1 driver.

The range of the radio signal is up to 30m. Visual contact is not necessary. Solid walls made of concrete, brick or similar naturally weaken the radio signal.



Power supply:

Note that some models are powered by a battery (coin cell) that must be replaced every 1-2 years. This applies to all pushbutton and potentiometer models.

All models with touch field can be supplied via the 230V house network, so that no battery change is required.





Combination with switch series of well-known manufacturers

The housing frame of the controls measures 86x86mm with a depth of 12mm. In case you want to combine the wall control with light switches, sockets etc., the following switch series are similar in design and dimensions:

  • MERTEN M-Plan
  • GIRA E2 (flat installation)
  • JUNG Serie A Creation
  • KOPP HK i8
  • ROHDE+ROHDE

Check the exact dimensions directly with the manufacturers.



NOTICE:

The LK55 remote control for pure dimming should not be used in combination with CCT LED strips (adjustable color temperature) or RGBW LED strips, but only for pure white LED strips with fixed color temperature. Background: When dimming via you would lose all color settings here, because the LED drivers drive all outputs (RGBW or WW/KW) down or up identically. Instead, dim via the appropriate CCT or RGBW remote controls.



Technical data:

 Item no. LK55W
 Power supply 110-240VAC
 Dimensions (BxWxD) 86x86x12mm, Installation depth: 20mm



Recommended driver

Radio dimmer LK55-2 | 1 x 8A
The 1 x 8 amp driver offers only one output and is therefore only suitable as a dimmer. Due to the 8 amps, however, very powerful LED components can be connected. At 24 volts, for example, LED components up to 170 watts are possible. The driver is installed between the power supply and the LED component. It is ideally suited for small and medium installations, as well as a supplement for larger installations. The driver belongs to the LK55 series and can be combined with all dimmer remote controls available there.    NOTES: All drivers of our LK55 series remember the last setting even in case of power loss. RGBW and CCT color temperature remote controllers have no function on the LK55-2 LED dimmer.   Technical data: Voltage: 12V-36V DCPower: Power connection via external switching power supply (not included)Load: 1 x 8A Min. dim level: <1% (for RGB/W <3%)Connection: input: V+/ground, push button; output: V+/groundIP class: IP 20 Dimensions: LxWxH 95x37x20mm   Operation via pushbutton input The LK55-2 offers 2 green screw terminals on the back for a button input. For example, a simple pushbutton can be connected to this and thus control the light without radio. Short keystroke switches the LEDs on and off. Long keystroke dims the LEDs up and down. Instead of a pushbutton, in principle only 2 cables can be connected, which are then held together short or long. Video tutorial for dimming via radio Video tutorial for dimming via cable with PUSH DIM
Product number: LK55-2

€36.00*
