CCT-Driver

In addition to brightness control (dimming), CCT LED controllers also allow the color temperature to be changed from warm to cool white. For this purpose, corresponding LED strips with alternately installed warm and cool white LEDs are connected to the controller. So-called CCT LED Strips.

For the CCT LED controllers such as our LK55 or the larger LK55-8, there are various radio remote controls. Among them classic models as handheld remote control, but also those for wall mounting. All controllers communicate via radio with the CCT LED controllers, so that no further cable connection is necessary. With the LK35-8, a WLAN controller is also available, which can additionally be controlled via app.

Range:

The radio does not require visual contact and has a range of up to 25m in free field. It also works through lightweight walls, such as plasterboard, through wood, etc., but solid walls of (steel) concrete and thick masonry can block the radio.

Handheld remote controls


Classic CCT handheld remote controls for LK55 and LK35 drivers. Some models are also suitable for multi-zone control. I.e. only 1 remote control can control different drivers separately.

Fernbedienung lk55fb-b1
CCT remote control classic | 4 zones
Color temperature & brightness control, up to 4 light zones controllable Memory for a frequently used color temperature Effect program for automatic light change All remote controls can operate all drivers / receivers of the LK55 series and, if required, also the WiFi driver LK35. It is also possible for several remote controls to operate one driver. E.g. a handheld remote control and an additional wireless wall panel or several wireless wall panels at different positions in the room. If required, up to 8 remote controls can operate 1 driver.   Technical data: Item no. LK55FB-B1 Power supply 3V CR2025 batteries Dimensions (LxWxH) 137x39x11mm   Operation: Note: The brightness always remains about the same when the color temperature is changed. With a medium color temperature, warm white and cool white LEDs are only controlled with about 50%, so that you can always set brightness and color temperature completely independently of each other.
Product number: LK55FB-B1

€34.00*
Fernbedienung lk55fb2_mitwandhalterung
CCT remote control with touch wheel | 4 zones
Color temperature & brightness control, up to 4 light zones controllable Touch wheel for color temperature selection 3 memory buttons for individual settings All remote controls can operate all drivers / receivers of the LK55 series and, if required, also the WiFi driver LK35. It is also possible for several remote controls to operate one driver. E.g. a handheld remote control and an additional wireless wall panel or several wireless wall panels at different positions in the room. If required, up to 8 remote controls can operate 1 driver. Technical data:  Item no. LK55FB2  Power supply 3 x 1,5V AAA batteries  Dimensions (LxWxH) 120x55x17mm Operation: Note: The brightness always remains about the same when the color temperature is changed. With a medium color temperature, warm white and cool white LEDs are only controlled with about 50%, so that you can always set brightness and color temperature completely independently of each other.
Product number: LK55FB2

€49.00*

Wall controls


For LK55 and LK35 drivers. Partly with multi-zone control. Some CCT models have their own battery supply, others are supplied via 230V (i.e. without battery).

Wandsteuerung lk55wcctw
Wall control for brightness & color temperature | 1 zone
for LK55 series receivers Controllable zones: 1 This wall controller can be used to control the brightness and color temperature of an LED installation, e.g. for strips with mixed warm white and cool white LEDs. The RF radio version does not require direct visual contact between remote control and receiver. Suitable drivers/receivers can be found in our universal series LK55. The wall control works with a push-poti: Press once: light is switched on/off Press twice: Switch between brightness and color temperature control. The rotary control can then be used to set brighter/darker or warmer/cooler in each case. Note: The brightness always remains about the same when changing the color temperature. With a medium color temperature, warm white and cool white LEDs are only controlled with about 50%, so that you can always adjust brightness and color temperature completely independently. The range of the radio signal is up to 30m. Visual contact is not necessary. Solid walls made of concrete, brick or similar naturally weaken the radio signal. Combination with switch series of well-known manufacturers The housing frame of the controls measures 86x86mm with a depth of 12mm. In case you want to combine the wall control with light switches, sockets etc., the following switch series are similar in design and dimensions: MERTEN M-Plan GIRA E2 (flat installation) JUNG Serie A Creation KOPP HK i8 ROHDE+ROHDE Check the exact dimensions directly with the manufacturers. Combination of controls & drivers One controller can control any number of drivers and up to 8 wall controllers can address the same driver. Thus, for example, wall controllers can be placed at several locations in the room or, if necessary, combined with classic hand-held remote controls.
Product number: LK55WCCTw

€34.00*
Wandsteuerung LK55TACCTw
Wall-mounted touch remote control for CT & Diming | 4 zones
for LK55 series receivers Controllable zones: 4 Power supply: 230VAC This wall control in touch panel design can be used to control the brightness and color temperature of an LED installation, e.g. for strips with mixed warm white and cool white LEDs. The RF radio version does not require direct visual contact between remote control and receiver. Suitable controllers/receivers can be found in our universal series LK55.  The touch control can control 4 different light zones separately. In addition, 2 frequently used color temperatures can be stored on quick selection buttons. Note: The brightness always remains about the same when changing the color temperature. With a medium color temperature, warm white and cool white LEDs are only controlled with about 50%, so that you can always adjust brightness and color temperature completely independently. The range of the radio signal is up to 30m. Visual contact is not necessary. Solid walls made of concrete, brick or similar naturally weaken the radio signal. Combination with switch series of well-known manufacturers The housing frame of the controls measures 86x86mm with a depth of 12mm. In case you want to combine the wall control with light switches, sockets etc., the following switch series are similar in design and dimensions: MERTEN M-Plan GIRA E2 (flat installation) JUNG Serie A Creation KOPP HK i8 ROHDE+ROHDE Check the exact dimensions directly with the manufacturers. Combination of controls & drivers One controller can control any number of drivers and up to 8 wall controllers can address the same driver. Thus, for example, wall controllers can be placed at several locations in the room or, if necessary, combined with classic hand-held remote controls. Technical data:  Item no. LK55TACCTw  Power supply 110-240VAC  Dimensions (WxHxD) 86x86x12mm, Installation depth: 20mm Operation:
Product number: LK55TACCTw

€55.00*

Driver CV


Driver for controlling LED strips and other components with constant voltage.

Controller lk35-8_wlanledcontroller
Control via app with the WLAN variant of the LK55 | 4 x 6A
The combined radio/WiFi driver is a classic LK55 with built-in WLAN receiver and sets standards in this field. It can be operated with a radio remote control (LK55 series) or also via smartphone with iOS or Android. Corresponding apps are available: EasyLighting App for Android / für IOS RealColor App for Android / für IOS In the standard version, the receiver has its own integrated access point for WLAN control. However, the receiver can also be set as a WLAN client via an integrated configuration page. This connects the receiver to an existing WLAN at home and provides its services without changing the network. If several cell phones or tablets are used, a simple share function can be used to transfer the learned drivers from one app to another. This means that it is not necessary to retrain the drivers, even if the cell phone is changed, for example. The driver can additionally be operated with remote controls. The hand- and wall controls of the LK55 series are suitable for this purpose.  Notes: All drivers of our LK35/55 series remember the last setting even in case of power loss.  If you want to operate several light zones independently of each other, several drivers are always necessary. drivers with several outputs (like here 4 x 6A) are not suitable to operate several zones, because the outputs can only be controlled together (parallel).   Technical data: Channels: 3/4 (e.g. RGBW) switchableVoltage: 12V-36V DCPower: up to 24A power supply via external switching power supply (not included), max. 6A per channelConnection: input: V+/ground; output: Ch.1-4 (R,G,B,W) ,V+IP class: IP 20 Dimensions (L*W*H): 171x58x28mm Note: The driver has double voltage inputs (++--). For high connected load (> 200 Watt), use our special connection cables for high connected loads (> 200 watts) in order to divide the current load between the two inputs. The large power supplies HLG-480 and HLG-600 already have double voltage outputs, so that both voltage inputs of the driver can be used directly here. Instruction video for the installation of the LK35-8
Product number: LK35-8

€79.00*
LK55 Universal Controller 12-36V for LED Strips, Panels etc.
LK55 Universal Controller 12-36V for LED Strips, Panels etc.
Product number: LK55mas

From €59.00*
Details

The universal LK55 Driver

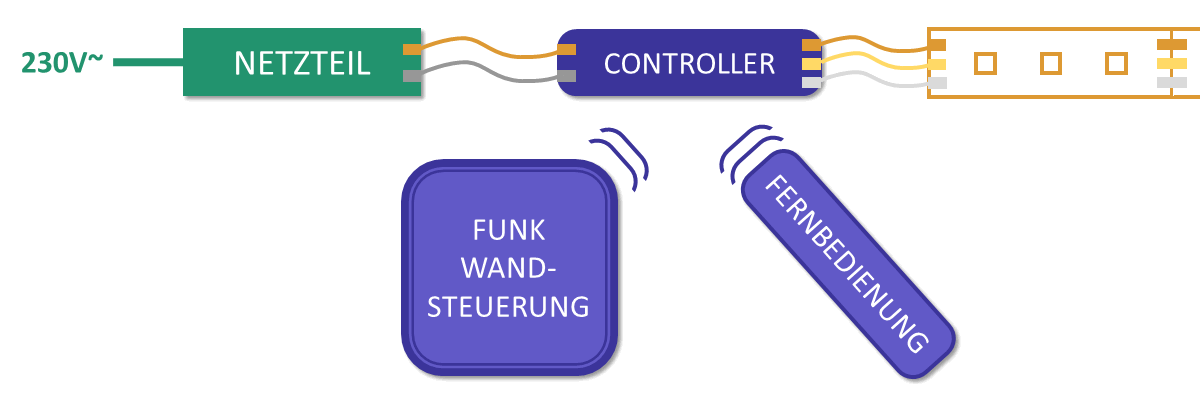

The universal driver/receiver of the LK55 series can be used for any kind of LED installation. The LK55 driver/receiver is always connected between the power supply and the LED lighting (e.g. LED strips).

The LK55 driver always includes a remote control, which you use to control the LK55. Depending on the choice of remote control, the LK55 driver then enables:

  • a pure brightness control (LED dimmer)
  • a combined brightness and color temperature control (COLOR TEMPERATURE from warm white to cool white)
  • a combined brightness and effect color control (RGB or RGBW)
These videos show the functions and setup with LK55 drivers for a color temperature control:
