RGBW-Driver

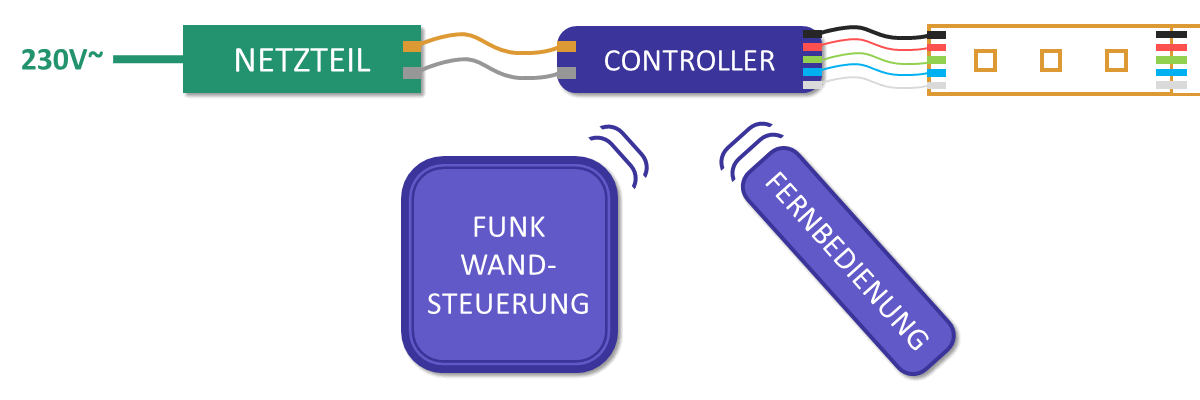

To control RGB or RGBW LED lighting you always need a corresponding driver, which is then installed between the power supply and e.g. LED strips. Here, RGBW drivers can of course also be used to control RGB LEDs, but not vice versa. For RGBW you always need 4 separately addressable outputs on your driver, for RGB only 3.
All drivers are equipped with a radio receiver. For this purpose we offer a selection of suitable handheld remote controls and radio wall controls, so that you can control the drivers and thus the LED lighting. Furthermore, WLAN solutions are available so that you can control your lighting via smartphone or tablet.
Handheld remote controls
Classic RGBW handheld remote controls for LK55 and LK35 drivers. Some models are also suitable for multi-zone control. I.e. only 1 remote control can control different drivers separately.
Programmable RGBW remote control | 4 zones
€65.00*
Control of color & brightness,
up to 4 light zones controllable
Touch wheel for color selection
Touch field for dimming
Individual buttons for RGBW
4 memory buttons for individual colors
programmable color gradients and effects
All remote controls can operate all drivers / receivers of the LK55 series and, if required, also the WiFi driver LK35.
It is also possible for several remote controls to operate one driver. E.g. a handheld remote control and an additional wireless wall panel or several wireless wall panels at different positions in the room. If required, up to 8 remote controls can operate 1 driver.
The range of the radio signal is up to 25m. Visual contact is not necessary. Solid walls made of concrete, brick or similar naturally weaken the radio signal.
Technical data:
Item no.
LK55FB5
Power supply
3 x 1,5V AAA batteries
Dimensions (LxWxH)
153x53x19mm
Operation:
Product number:
LK55FB5
Remote control, with touch wheel & buttons | 4 zones
€49.00*
Control of color & brightness,
up to 4 light zones controllable
Touch wheel for color selection
Separate dim button for white LEDs
3 memory buttons for individual colors
All remote controls can operate all drivers / receivers of the LK55 series and, if required, also the WiFi driver LK35.
It is also possible for several remote controls to operate one driver. E.g. a handheld remote control and an additional wireless wall panel or several wireless wall panels at different positions in the room. If required, up to 8 remote controls can operate 1 driver.
The range of the radio signal is up to 25m. Visual contact is not necessary. Solid walls made of concrete, brick or similar naturally weaken the radio signal.
Technical data:
Item no.
LK55FB3
Power supply
3 x 1,5V AAA batteries
Dimensions (LxWxH)
120x55x17mm
Operation:
Product number:
LK55FB3
Wall controls
For LK55 and LK35 drivers. Partly with multi-zone control. Some RGB(W) models have their own battery supply, others are supplied via 230V (i.e. without battery).
RGBW touch wall control | 1 zone | black
€52.50*
Select variant:
1 Zone
|
Color:
black
Touch control for RGBW driver of the LK55 series
Controllable zones: 1
4 memory buttons for individual color scenes
Power supply: 110-240VAC
Color: black
Our RGBW wall remotes differ in some details:
1 Zone Wall remote control with touch field (4 memory keys)
4 Zone Wall-mounted remote control with touch field (4 memory locations, 4 zones can be controlled separately)
All remote controls can operate all drivers / receivers of the LK55 series and, if required, also the WiFi driver LK35.
It is also possible for several remote controls to operate one driver. E.g. a handheld remote control and an additional wireless wall panel or several wireless wall panels at different positions in the room. If required, up to 8 remote controls can operate 1 driver.
The range of the radio signal is up to 25m. Visual contact is not necessary. Solid walls made of concrete, brick or similar naturally weaken the radio signal.
Combination with switch series of well-known manufacturers
The housing frame of the controls measures 86x86mm with a depth of 12mm. In case you want to combine the wall control with light switches, sockets etc., the following switch series are similar in design and dimensions:
MERTEN M-Plan
GIRA E2 (flat installation)
JUNG Serie A Creation
KOPP HK i8
ROHDE+ROHDE
Check the exact dimensions directly with the manufacturers.
Technical data:
Item no.
LK55w4bb
Power supply
110-240VAC
Dimensions (WxHxD)
86x86x12mm, Installation depth: 20mm
Operation:
Product number:
LK55w4bb
RGBW touch wall control | 1 zone | white
€52.50*
Select variant:
1 Zone
|
Color:
white
Touch control for RGBW driver of the LK55 series
Controllable zones: 1
4 memory buttons for individual color scenes
Power supply: 110-240VAC
Color: white
Our RGBW wall remotes differ in some details:
1 Zone Wall remote control with touch field (4 memory keys)
4 Zone Wall-mounted remote control with touch field (4 memory locations, 4 zones can be controlled separately)
All remote controls can operate all drivers / receivers of the LK55 series and, if required, also the WiFi driver LK35.
It is also possible for several remote controls to operate one driver. E.g. a handheld remote control and an additional wireless wall panel or several wireless wall panels at different positions in the room. If required, up to 8 remote controls can operate 1 driver.
The range of the radio signal is up to 25m. Visual contact is not necessary. Solid walls made of concrete, brick or similar naturally weaken the radio signal.
Combination with switch series of well-known manufacturers
The housing frame of the controls measures 86x86mm with a depth of 12mm. In case you want to combine the wall control with light switches, sockets etc., the following switch series are similar in design and dimensions:
MERTEN M-Plan
GIRA E2 (flat installation)
JUNG Serie A Creation
KOPP HK i8
ROHDE+ROHDE
Check the exact dimensions directly with the manufacturers.
Technical data:
Item no.
LK55w4bw
Power supply
110-240VAC
Dimensions (WxHxD)
86x86x12mm, Installation depth: 20mm
Operation:
Product number:
LK55w4bw
RGBW touch wall control | 4 zones | black
€52.50*
Select variant:
4 zones
|
Color:
black
Touch control for RGBW driver of the LK55 series
Controllable zones: 4
4 memory buttons for individual color scenes
Power supply: 110-240VAC
Color: black
Our RGBW wall remotes differ in some details:
1 Zone Wall remote control with touch field (4 memory keys)
4 Zone Wall-mounted remote control with touch field (4 memory locations, 4 zones can be controlled separately)
All remote controls can operate all drivers / receivers of the LK55 series and, if required, also the WiFi driver LK35.
It is also possible for several remote controls to operate one driver. E.g. a handheld remote control and an additional wireless wall panel or several wireless wall panels at different positions in the room. If required, up to 8 remote controls can operate 1 driver.
The range of the radio signal is up to 25m. Visual contact is not necessary. Solid walls made of concrete, brick or similar naturally weaken the radio signal.
Combination with switch series of well-known manufacturers
The housing frame of the controls measures 86x86mm with a depth of 12mm. In case you want to combine the wall control with light switches, sockets etc., the following switch series are similar in design and dimensions:
MERTEN M-Plan
GIRA E2 (flat installation)
JUNG Serie A Creation
KOPP HK i8
ROHDE+ROHDE
Check the exact dimensions directly with the manufacturers.
Technical data:
Item no.
LK55w4b
Power supply
110-240VAC
Dimensions (WxHxD)
86x86x12mm, Installation depth: 20mm
Operation:
Product number:
LK55w4b
RGBW touch wall control | 4 zones | white
€52.50*
Select variant:
4 zones
|
Color:
white
Touch control for RGBW driver of the LK55 series
Controllable zones: 4
4 memory buttons for individual color scenes
Power supply: 110-240VAC
Color: white
Our RGBW wall remotes differ in some details:
1 Zone Wall remote control with touch field (4 memory keys)
4 Zone Wall-mounted remote control with touch field (4 memory locations, 4 zones can be controlled separately)
All remote controls can operate all drivers / receivers of the LK55 series and, if required, also the WiFi driver LK35.
It is also possible for several remote controls to operate one driver. E.g. a handheld remote control and an additional wireless wall panel or several wireless wall panels at different positions in the room. If required, up to 8 remote controls can operate 1 driver.
The range of the radio signal is up to 25m. Visual contact is not necessary. Solid walls made of concrete, brick or similar naturally weaken the radio signal.
Combination with switch series of well-known manufacturers
The housing frame of the controls measures 86x86mm with a depth of 12mm. In case you want to combine the wall control with light switches, sockets etc., the following switch series are similar in design and dimensions:
MERTEN M-Plan
GIRA E2 (flat installation)
JUNG Serie A Creation
KOPP HK i8
ROHDE+ROHDE
Check the exact dimensions directly with the manufacturers.
Technical data:
Item no.
LK55w4w
Power supply
110-240VAC
Dimensions (WxHxD)
86x86x12mm, Installation depth: 20mm
Operation:
Product number:
LK55w4w
RGB wall control with large rotary knob | 1 zone
€34.00*
Wall control for LK55 series RGB controller.
Large rotary knob for brightness and color
Controllable zones: 1
Power supply: 3V button cell CR2032
All remote controls can operate all drivers / receivers of the LK55 series and, if required, also the WiFi driver LK35.
It is also possible for several remote controls to operate one driver. E.g. a handheld remote control and an additional wireless wall panel or several wireless wall panels at different positions in the room. If required, up to 8 remote controls can operate 1 driver.
The range of the radio signal is up to 25m. Visual contact is not necessary. Solid walls made of concrete, brick or similar naturally weaken the radio signal.
Combination with switch series of well-known manufacturers
The housing frame of the controls measures 86x86mm with a depth of 12mm. In case you want to combine the wall control with light switches, sockets etc., the following switch series are similar in design and dimensions:
MERTEN M-Plan
GIRA E2 (flat installation)
JUNG Serie A Creation
KOPP HK i8
ROHDE+ROHDE
Check the exact dimensions directly with the manufacturers.
Technical data:
Item no.
LK55w3w
Power supply
110-240VAC
Dimensions (WxHxD)
86x86x12mm, Installation depth: 20mm
Product number:
LK55w3w
Driver CV
Driver for controlling LED strips and other components with constant voltage.
Control via app with the WLAN variant of the LK55 | 4 x 6A
€79.00*
The combined radio/WiFi driver is a classic LK55 with built-in WLAN receiver and sets standards in this field. It can be operated with a radio remote control (LK55 series) or also via smartphone with iOS or Android. Corresponding apps are available:
EasyLighting App for Android / für IOS
RealColor App for Android / für IOS
In the standard version, the receiver has its own integrated access point for WLAN control. However, the receiver can also be set as a WLAN client via an integrated configuration page. This connects the receiver to an existing WLAN at home and provides its services without changing the network. If several cell phones or tablets are used, a simple share function can be used to transfer the learned drivers from one app to another. This means that it is not necessary to retrain the drivers, even if the cell phone is changed, for example.
The driver can additionally be operated with remote controls. The hand- and wall controls of the LK55 series are suitable for this purpose.
Notes:
All drivers of our LK35/55 series remember the last setting even in case of power loss.
If you want to operate several light zones independently of each other, several drivers are always necessary. drivers with several outputs (like here 4 x 6A) are not suitable to operate several zones, because the outputs can only be controlled together (parallel).
Technical data:
Channels: 3/4 (e.g. RGBW) switchableVoltage: 12V-36V DCPower: up to 24A power supply via external switching power supply (not included), max. 6A per channelConnection: input: V+/ground; output: Ch.1-4 (R,G,B,W) ,V+IP class: IP 20
Dimensions (L*W*H): 171x58x28mm
Note: The driver has double voltage inputs (++--). For high connected load (> 200 Watt), use our special connection cables for high connected loads (> 200 watts) in order to divide the current load between the two inputs. The large power supplies HLG-480 and HLG-600 already have double voltage outputs, so that both voltage inputs of the driver can be used directly here.
Instruction video for the installation of the LK35-8
Product number:
LK35-8
The universal LK55 Driver
The universal driver/receiver of the LK55 series can be used for any kind of LED installation. The LK55 driver/receiver is always connected between the power supply and the LED lighting (e.g. LED strips).
The LK55 driver always includes a remote control, which you use to control the LK55. Depending on the choice of remote control, the LK55 driver then enables:
- a pure brightness control (LED dimmer)
- a combined brightness and color temperature control (COLOR TEMPERATURE from warm white to cool white)
- a combined brightness and effect color control (RGB or RGBW)
These videos show the functions and setup with LK55 drivers for a color temperature control:
Mini RGB-LED Driver
For smaller LED installations with a few meters of RGB LED tape, our mini LED controller is suitable.
RGB-LED-controller 12-24V, 3x3A, with touch remote control
€45.00*
This RGB-LED-Controller is a compact solution for easy operating of RGB-LED-stripes. The controller works with 12V and 24V installations and the 3x3 ampere output load can supply up to 7,5m of typical 12V RGB-stripes. With 24V stripes even 15m are possible.Included in the set is a RF-remote control with a touch color wheel. Contrary to simple infrared versions this RF remote control doesn't need any intervisibility to the receiver.
Product number:
LK86
RGB-LED micro controller 5V, 3x2A, incl. IR remote control
€9.50*
This Set is an ultra compact solution to operate RGB LED systems. The receiver is smaller than most USB sticks and can therefore fit in many aluminium LED profiles. Nevertheless the controller offers 3x2 ampere output load which is more than enough for smaller RGB LED installations. Power is supplied by a typical USB-A Port with 5V.With the set comes a compact infrared remote control.
Product number:
LK31-2
