Digital RGB Neon Flex - 12V - 60 Pixel/m - HORIZONTAL bendable

g
a g
LK117-12
product-datasheet

€125.00*

Content: 5 Meter (€25.00* / 1 Meter)

Available, delivery time: 3-5 days

Product number: LK117-12
Available stock: 19

  • LED Typ: WS2815 - RGB
  • 60 LED Pixel/m
  • Waterproof IP65
  • Voltage: 12Volt
  • Power: 18 Watt/m

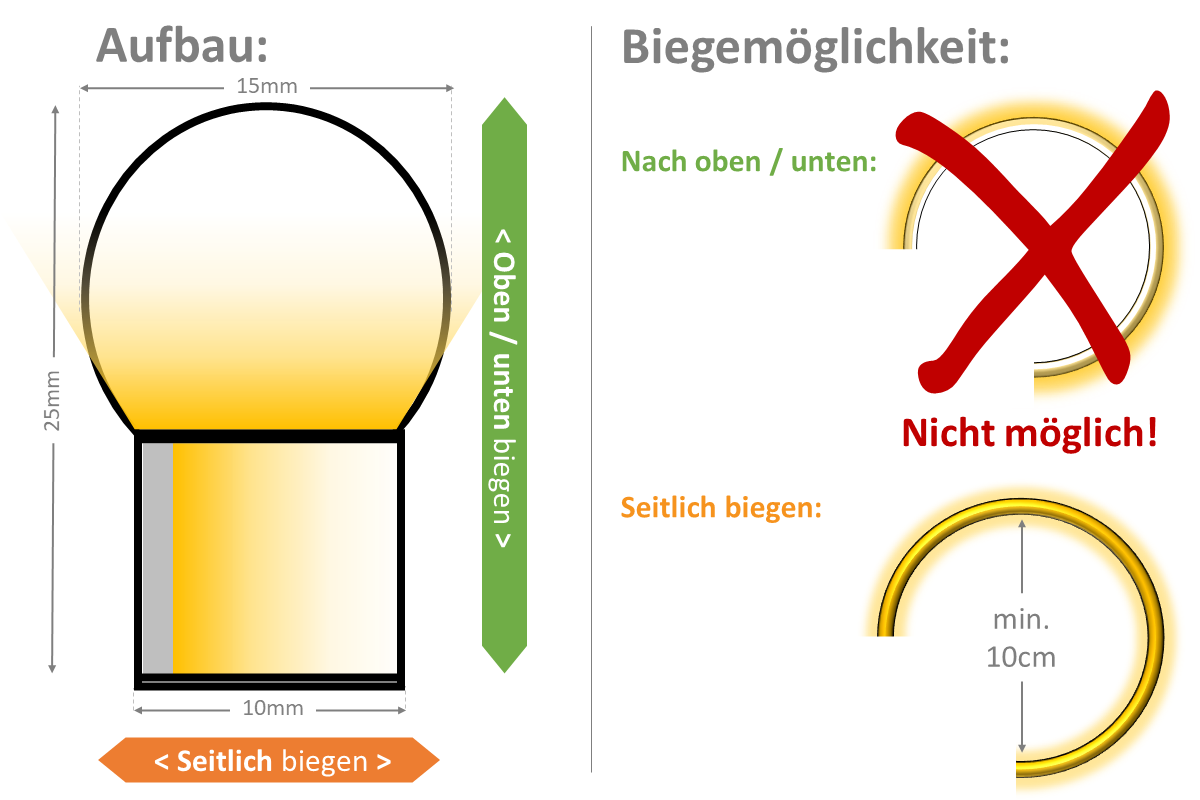

  • Width: 15mm (base: 10mm)
  • Height: 25mm

Price for 1 roll = 5m

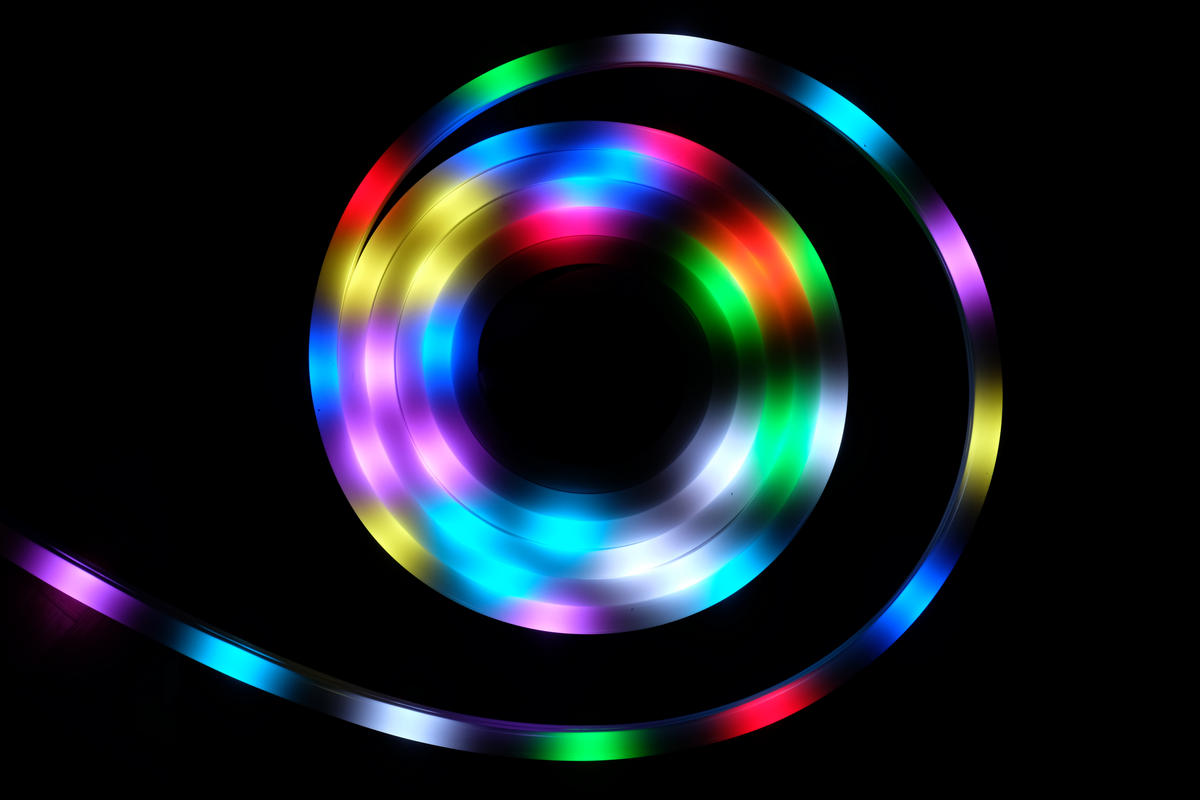

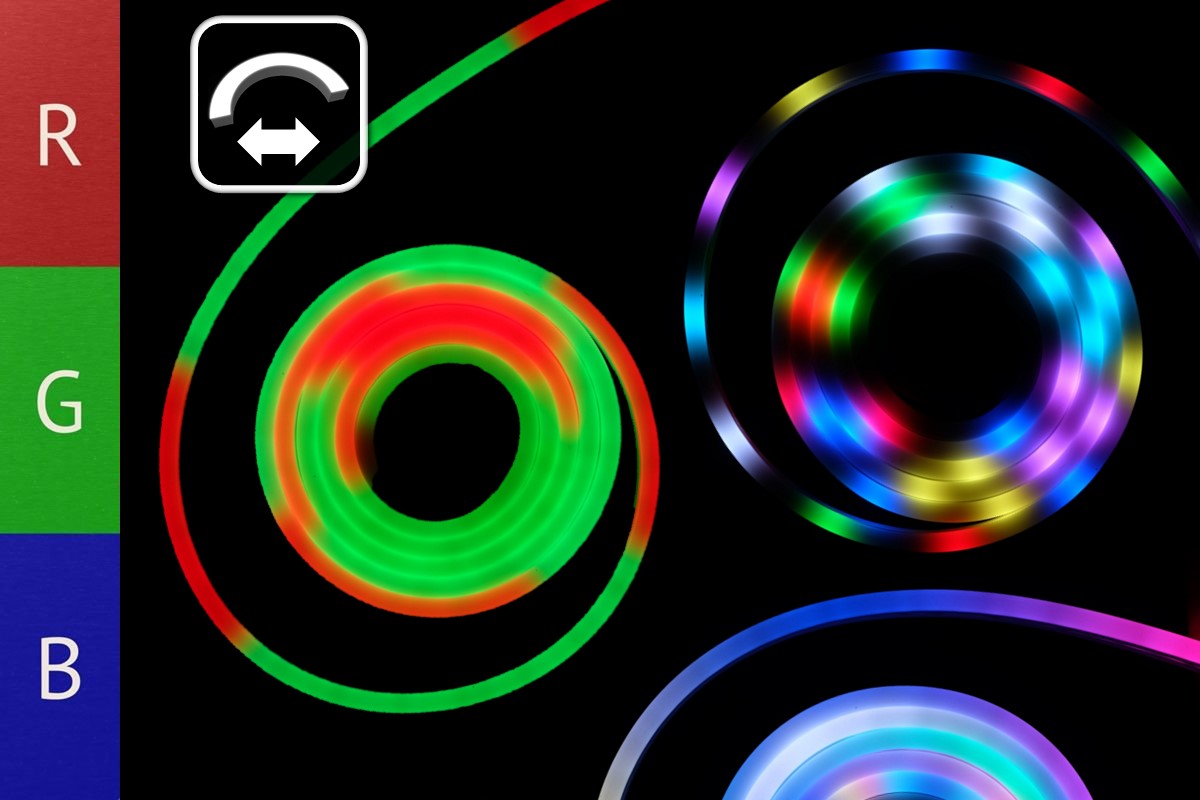

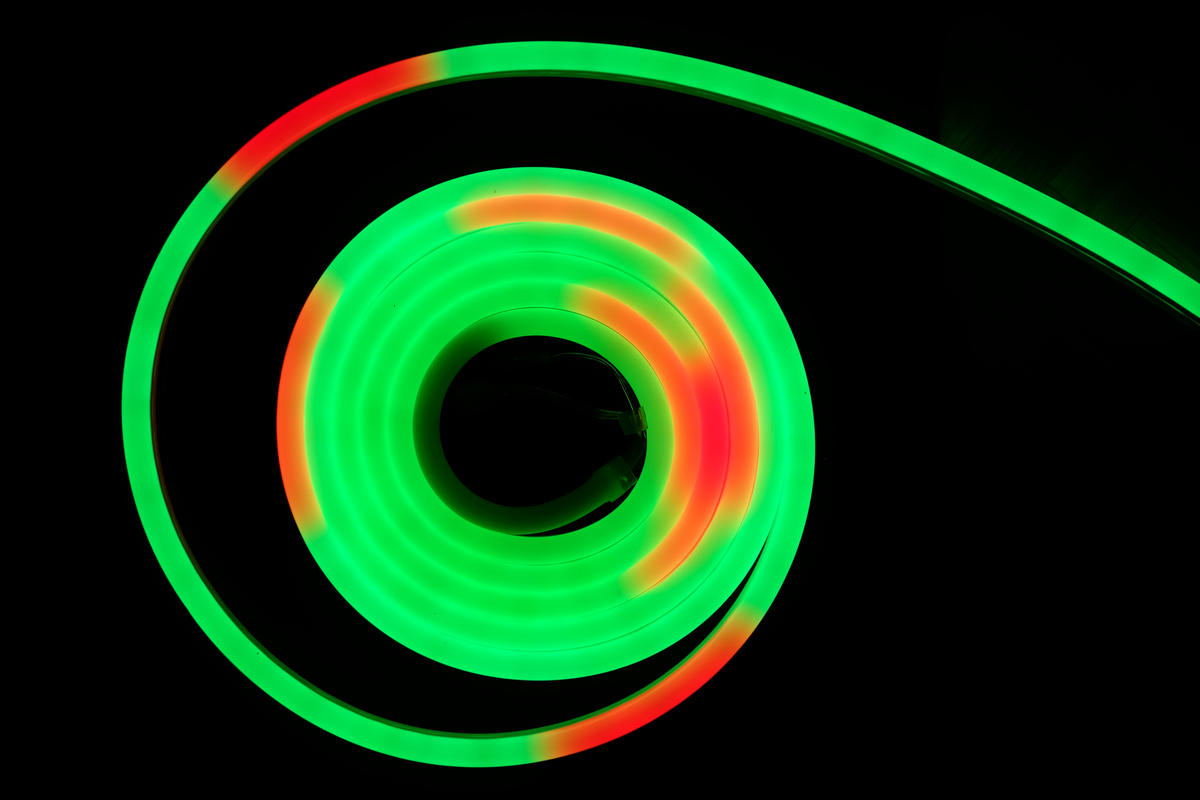

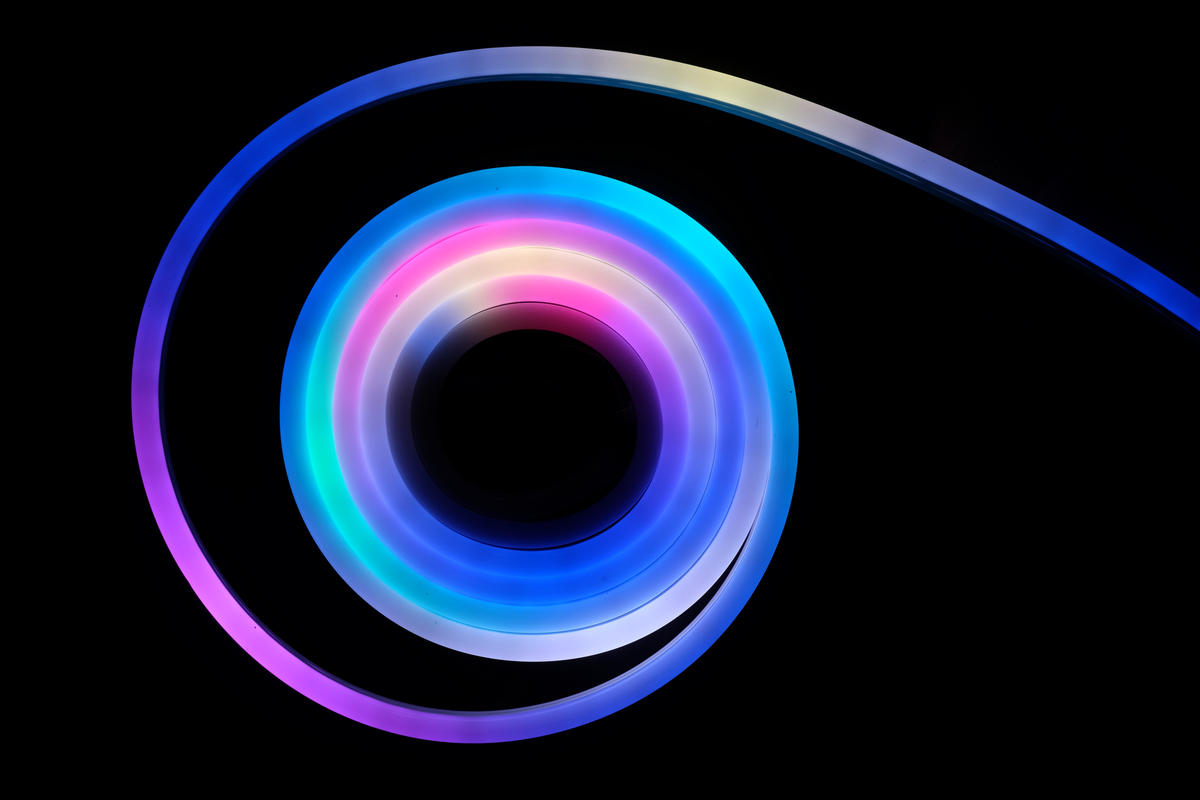

The digital RGB NEON FLEX tapes offer 60 individually addressable LED pixels per meter and an absolutely homogeneous light distribution with almost no individual LEDs visible. This is achieved by a milky-opal silicone cover that encloses the LED ribbon. Nevertheless, the NEON FLEX tapes are highly flexible and can also be bent very well due to the small width of only 11mm. The silicone sleeve also grants IP65 water resistance.

The tape works with the new WS2815 LEDs on 12 Volt basis. WS2815 have the following advantages (e.g. compared to the widespread WS2812):

  • 12V allows significantly longer distances (up to 5m) without new voltage supply
  • Backup DATA line: In case of failure of individual pixels, all remaining pixels continue to work normally
  • High PWM frequency of 1.200Hz

 > Video example of the LK117-12 NEONFLEX Pixel stripe


Available variants

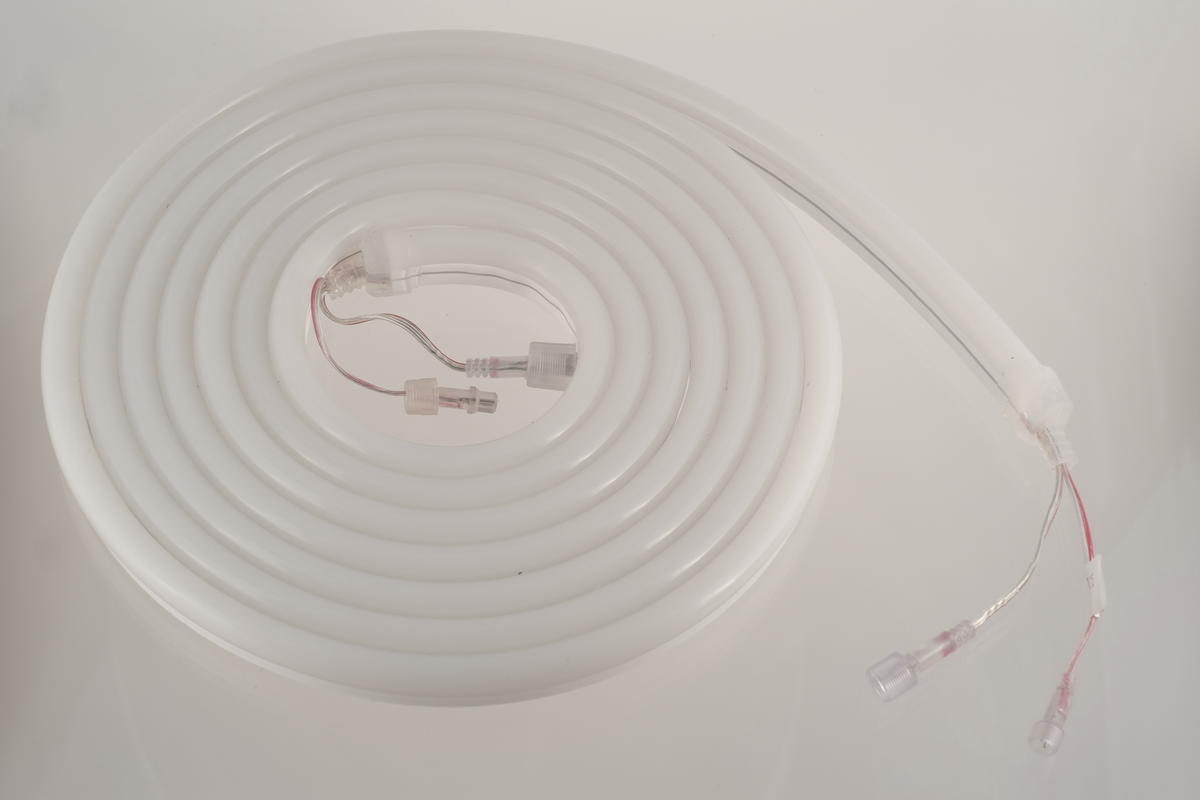

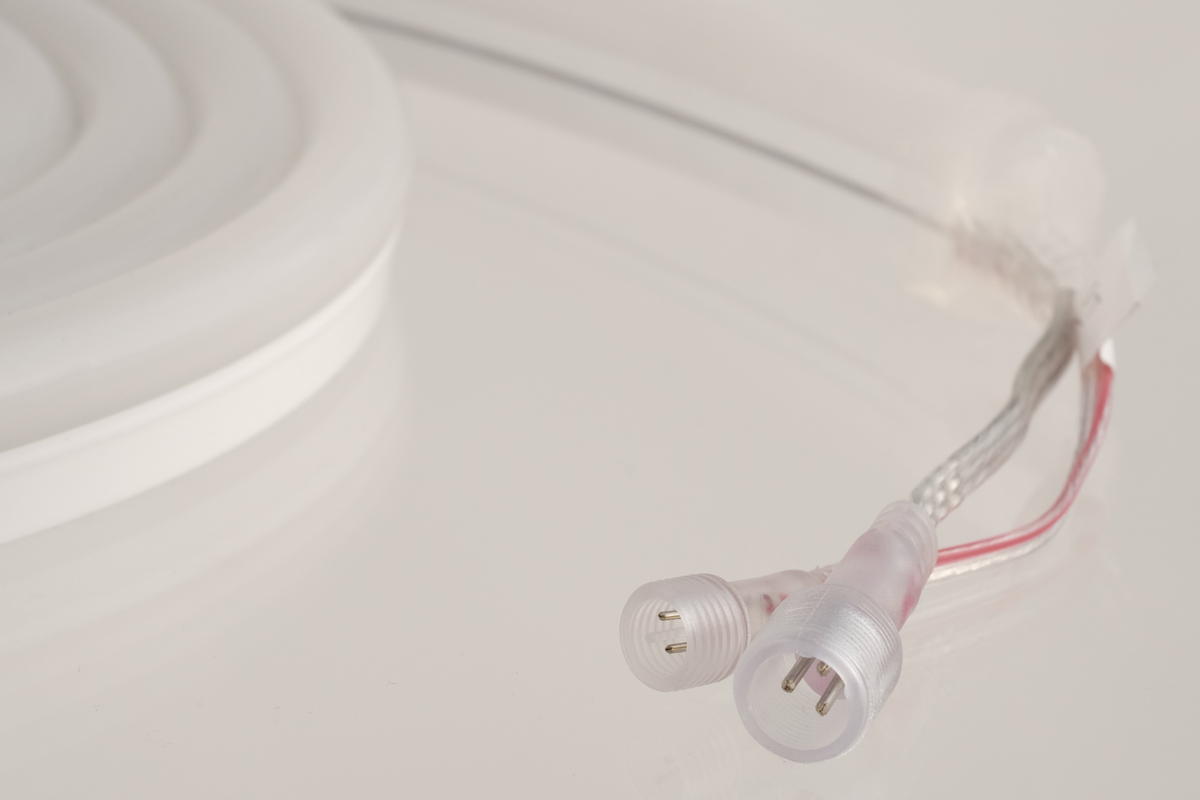

  • 5m-Roll IP65 Water protection with silicone cover, incl. 10cm connection cable


Notes on accessories:

To operate 5m (1 roll) of LED strips, a 12V power supply with min. 100 Watt is required. 5m x 18W/m + 10% safety = 100 Watt.

A corresponding pixel LED controller is required to control the LEDs.

You can find answers to frequently asked questions in our FAQ.




The following video shows the digital Neonflex in action: https://youtu.be/_ZvhadP4nhg



Properties "Digital RGB Neon Flex - 12V - 60 Pixel/m - HORIZONTAL bendable"
IP protection: IP65
Pixel/m: 60
Power: 14
Seperatable every (cm): 1,6 cm
Strip width in mm: 15
Voltage: 12V
LED/m: 60
Data according to manufacturer. Errors and changes reserved.

Suitable accessories for Neonflex

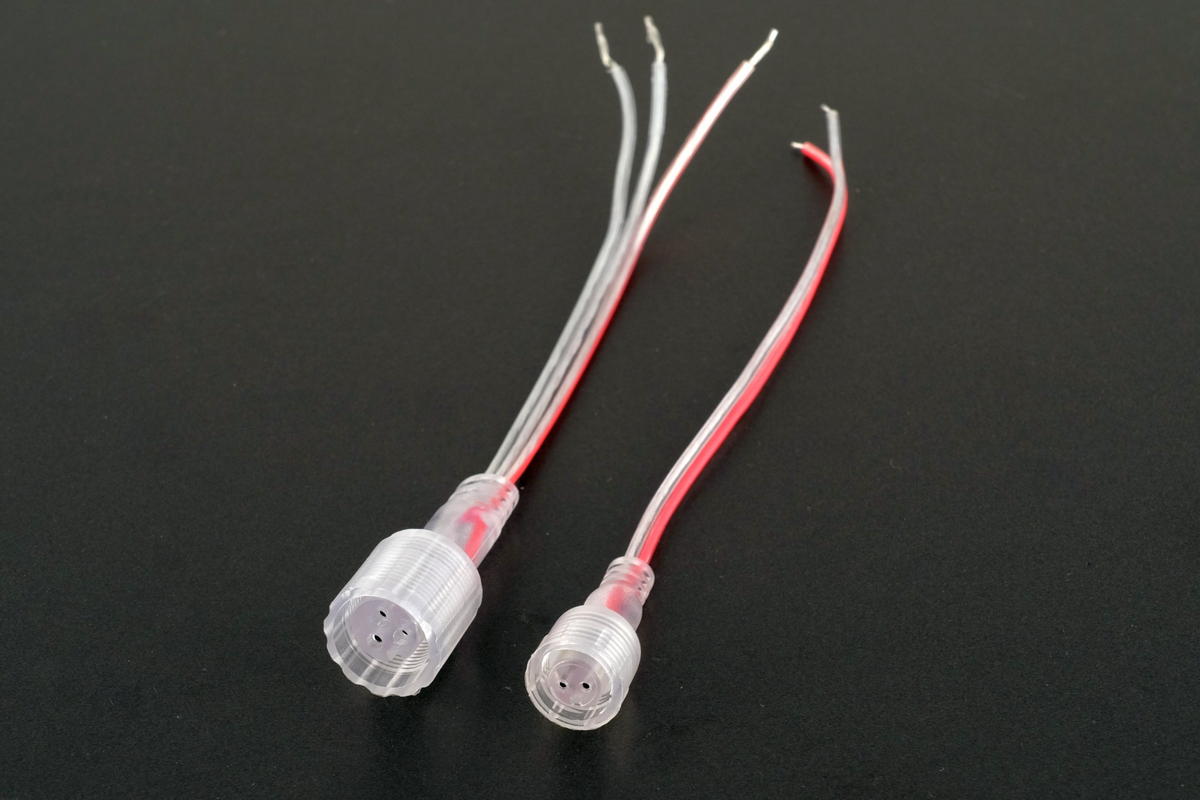

Waterprotected cable set: 4-pin
Das Set erlaubt es in Verbindung mit Silikondichtmasse und Endkappen wasserdichte Anschlüsse für RGB-LED-Streifen herzustellen. Dies ist vor allem nützlich, wenn eine Rolle in mehrere Stücke geteilt werden soll.
Product number: LK04-23d-Con4

€2.80*
Neon Flex - 10mm mounting profile - 2m long
Mounting profile for 10mm NEONFLEX. The NEONFLEX can be pressed into the U-profile from above and holds there independently by friction.
Product number: AL60si2

€25.00*
Silicone: approx. 5ml
With this silicone you can seal neonflex- or normal LED-stripes in a silicone tube (IP67/68) with the corresponding end-caps watertight. This is especially usefull if a roll has to be devided into several parts. The silicone is acetate-free, thus no acetic acid is produced while curing, which would damage the electrical components.A tube with 5ml is enough to seal approx. 2-5 end-caps (depending on the size of the end-caps).
Product number: SIL01

€2.50*
Neon Flex mounting clamp - 1 piece
Content: 1 mounting clamp
Product number: LK117-KL

€0.45*

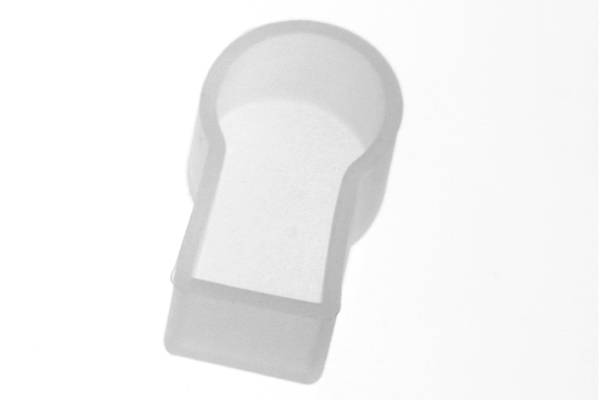

Silicone end cap for Digital Neonflex LK117
Suitable silicone can be ordered separately.
Product number: LK117-EK

€0.90*

Power supply

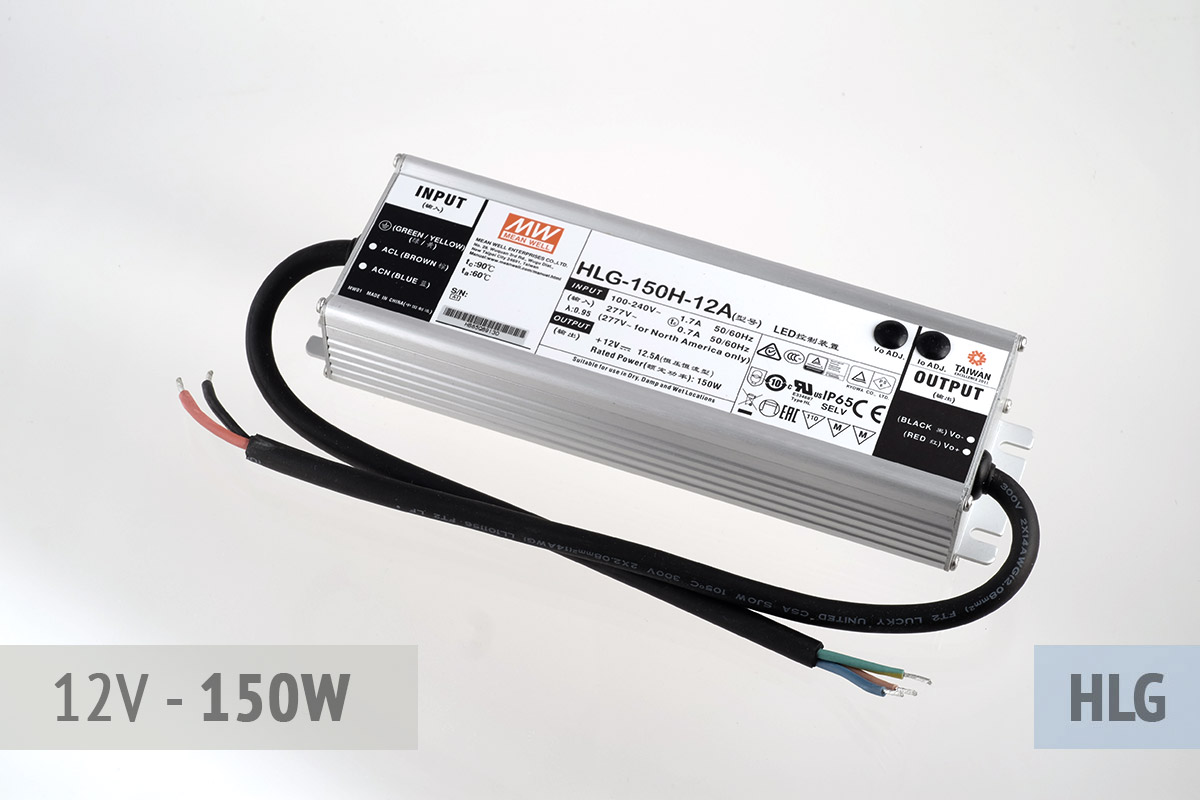

Power supply 12V - 12.5A - 150Watt
Meanwell switching power supply HLG-150, 12V / 12.5A  / 150W Overload protection by current limitation, auto recovery protected against short circuit, overload, overvoltage built-in PFC circuit for indoor and outdoor use (IP65) adjustable output voltage adjustable current limitation Note on the connection of LED drivers The HLG-150-12 offers a lot of power and therefore a high current of up to 12.5 amps. If possible, use both voltage inputs on all drivers with dual voltage inputs (++--). All larger drivers usually have dual voltage inputs. It is best to order two 3-way WAGO distributors so that you can split the +/- output cables of the HLG-150 into 2 cables each, which you then run in parallel to the driver inputs. Alternatively, you can use a driver Y-connection cable in combination with luster terminals. Technical data:  Model HLG-150-12  Voltage 12V  Maximum power 150W  Current 12.5A  Adjustable voltage range 10,8 - 13,5V  Voltage input 230VAC  Overcurrent protection 95...108%  Inrush current, max. 65A  Input voltage range 90...305V AC (47...63Hz), 127...431V DC  Power factor 0,92  Working temperature -40...+70°C  Dimensions 228x68x39mm (LxWxH)  Weight 1,150g
Product number: LED1165

€64.00*

Recommended driver

Artnet LED Pixel-Controller for up to 2.720 Pixel
The LK142 Staircase Effect Controller allows the control of staircase lighting from 8 - 32 steps. It offers a total of 32 outputs, e.g. for LED strips or profiles in the range of 5-24VDC, 1A. For example, our standard LED strips as well as the new free-cut COB LED strips can be controlled flexibly. Controlled by pushbuttons or motion detectors above and below the stairs, the steps can be illuminated step by step with great effect. Depending on the activation, the effect runs from bottom to top or from top to bottom. In addition, digital pixel LEDs can be integrated for a running light, e.g. in the handrail. Various effect modes and speed settings allow for flexible adjustment of the staircase effect.Benefits at a glance: Selective control of 8-32 steps with 5-24VDC, 1A Additional chaser effect, e.g. in the handrail, via pixel LED strips (12 color modes) 4 effect modes, 8 speeds Triggered by PIR motion sensors or push-buttons above and below the stairs Daylight sensor for twilight switching 2 controllers can be cascaded for large staircases with up to 64 steps Wiring diagram: Scope of delivery:Staircase effect controller 2 x PIR sensor 2 x extension cable (5m) for PIR sensor 1 x twilight sensor Technical data: Item-Nr. LK142 Output ports 32 x 5-24VDC, 1A step illumination2 x SPI pixel for running light Adressable pixel Up to 960 pixel Adressable pixel types WS2801, 2803, 2811, 2812, 2813, 2815TM1804, 1809, 1812, 1829, 1914AUCS1903, 1909, 1912, 2903, 2909, 2912UCS5909, 6912LPD6803, 1101, 8803, 8806GS8206, 8208GW6205P9813SK9822 Powersupply  5 - 24VDC (via ext. powersupply) Input ports2 x 5-24VDC voltage input2 x PIR motionsensor 2 x pushbutton (+ cascade option)1 x daylight sensor IP protection IP20 Dimensions L186×W86×H26(mm) Weight 520g
Product number: LK142

€115.00*
Artnet LED Pixel-Controller for up to 2.720 Pixel
The drivers for digital LED strips are specially designed to control as many RGB pixels as possible individually.With the LK99, up to 2,720 pixels are possible, divided into 4 channels with 680 RGB pixels each. This corresponds to a total of 16 DMX universes, which are transmitted via LAN/ArtNet. The 4 pixel outputs can be loaded with max. 7 amps per channel. For larger installations, the pixels can and should be powered separately. The controller then supplies only the data signal (DATA). Pixels with and without CLOCK signal (CLK) can be controlled. Pixel types with CLK are e.g. WS2801 or APA102. The controller can be controlled via ArtNet and offers an additional DMX-OUT port with 512 channels on the output side. For configuration, the controller has an integrated web interface as an alternative to direct input on the display. The configuration options are very extensive: selection of pixel type and color sequence (RGB, RGB, GRB etc.) flexible addressing (DMX-Universe and start address individually for each of the 4 outputs) number of pixels to control per channel (0-680 pixels - e.g. to save DMX universes) number of zero pixels to skip first unused pixels in an installation Zig-zag or backward addressing of pixels for matrix applications Brightness limitation per channel In addition, the controller offers a test mode to test the installation with various effects (Chase, Dots, Rainbow, ...) and static programs (all pixels red, all pixels white, ...) even without an applied ArtNet signal. The speed of the effects can be varied. Technical data: Item no. LK99 Output spots 4 x 7 Ampere (Multi SPI) Controllable pixels 4 x 680 = 2,720 Controllable ICs WS2801, 2803, 2811, 2812, 2813, 2815 SK6812 (RGBW) TM1803, 1804, 1809, 1812, 1814 (RGBW) UCS1903, 1909, 1912, 2903, 2909, 2912, 5603UCS6909, 6912 9812, 2904 (RGBW), 8904 (RGBW)LPD6803, 1101, 8803, 8806 TLS3001, 3002 APA102 P9813 Voltage input  5 - 24VDC DMX outputs 1 x 512 Channels Dimensions L166×W110×H31(mm) Weight 510g
Product number: LK99

€290.00*
SP108E LED Pixel Controller with App control
The SP108 can drive up to 2,048 pixels and many different pixel types: WS2801, WS2811, WS2812, SK6812, APA102 and many more. The suitable app "LED Shop" is available for free for IOS and Android and offers 180 different chase effects as well as precisely adjustable single colors. Speed and brightness can be changed at any time. A handy feature is that you can choose your favorites from the 180 effects and then quickly select them. Setting up the driver is quite intuitive and done in a few minutes. The driver works in the 2.4 GHz WLAN and can be accessed directly via the smartphone as well as integrated into the home WLAN. Screenshots of the App: The scope of delivery includes: 1 x LED driver SP108E 1 x 3-pin connection cable for LED strips 1 x mini screwdriver Supported LED types: WS2801, WS2811, WS2812 SK6812, SK6812_RGBW, SK9822 APA102, APA105 TM1804, TM1814, TM1913, TM1914, TX1812, TX1813 LPD6803, LPD8806  P9813, P943S, P9411, P9412, P9413, P9414 GS8206, GS8208 SM16703, UCS1903, INK1003, DMX512 FAQ: Does the driver require an existing WLAN? No, the driver can also be controlled directly with the smartphone (AP mode) and offers its own WLAN access point ("SP108E_xxx") for this purpose. If a WLAN is available, the driver can alternatively be integrated into it (STA mode), so that the WLAN does not always have to be changed to operate the driver. Can multiple drivers be used simultaneously in the app? Yes, the app can manage multiple drivers at the same time. You can switch between the drivers and change the settings for each. In addition, the individual drivers can be switched on and off directly. However, there is no direct synchronization and each driver must be set accordingly for itself.  Does the app have to be active for the animations to run? No. The app is only needed for the setup. You can close the app afterwards and also turn off the smartphone, for example. The SP108 will continue to play effects. Does the driver keep its settings when it no longer receives power? Yes, the driver can simply be disconnected from the mains. When power is applied again, it will start with the previously set animation. All settings will be kept. How can the white LEDs be used, e.g. with a SK6812_RGBW? The app has a separate control for white LEDs (e.g. for SK6812_RGBW pixel strips). This can be used to set the proportion of white LEDs and then, in the case of effects, the white LEDs are taken into account accordingly, so that the colors are generally desaturated. In the effects section of the app, the SOLID setting can then also be used to activate a permanently white, high-quality light, e.g. for lighting tasks, if required. Can the SP108 also control LED matrices? A number of pixels and a number of segments can be set in the setup. For example, for an 8 x 8 matrix then 8 pixels and 8 segments. This is taken into account in the effects, but in most matrices the pixels are connected in a snake shape as a long line and this is unfortunately not taken into account by the SP108. Therefore the effects are not displayed as desired on the matrix, but every 2nd row of the matrix shows the effect quasi upside down. We hope for a technical improvement here soon. Technical data: Input: 5-24V DC, GND Output: VCC, GND, Data, Clock current consumption: approx. 90mA up to 2.048 pixels depending on IC type ambient temperature: -20°C - +60°C dimensions: 80x41x20mm Weight: 40g
Product number: LK126

€29.00*
LED pixel driver up to 600 pixels for TPM2 from USB/SD card
With this driver LED strips/matrixes with up to 600 pixels can be controlled via an output. The animations in TPM2 format are created by software (e.g. J!NX) and can either be output directly via a PC via USB or stored and retrieved on an SD card. The keys can be used to switch between the animations stored on the SD card. The sequence of the animations can also be specified in a configuration file. In this file it is also possible to define the number and color sequence of the pixels, autoplay behavior and brightness. Furthermore, up to 63 animations can be started from the SD card via GPIO pins (e.g. actuated via buttons, microdrivers, etc.). Scope of delivery: 1x LED Pixel-driver ready installed in acyl housing Technical data: Item no. LK128 Controllable pixels 1 x 600 Controllable ICs WS281X / PL9813 / APA106 / SK6812 (RGBW) Voltage input   5 VDC via mini-USB Output 1 x 600 pixels Dimensions L55×W22×H mm
Product number: LK128

€34.90*
