The LK142 Staircase Effect Controller allows the control of staircase lighting from 8 - 32 steps. It offers a total of 32 outputs, e.g. for LED strips or profiles in the range of 5-24VDC, 1A. For example, our standard LED strips as well as the new free-cut COB LED strips can be controlled flexibly.
Controlled by pushbuttons or motion detectors above and below the stairs, the steps can be illuminated step by step with great effect. Depending on the activation, the effect runs from bottom to top or from top to bottom.
In addition, digital pixel LEDs can be integrated for a running light, e.g. in the handrail. Various effect modes and speed settings allow for flexible adjustment of the staircase effect.
Benefits at a glance:
- Selective control of 8-32 steps with 5-24VDC, 1A
- Additional chaser effect, e.g. in the handrail, via pixel LED strips (12 color modes)
- 4 effect modes, 8 speeds
- Triggered by PIR motion sensors or push-buttons above and below the stairs
- Daylight sensor for twilight switching
- 2 controllers can be cascaded for large staircases with up to 64 steps

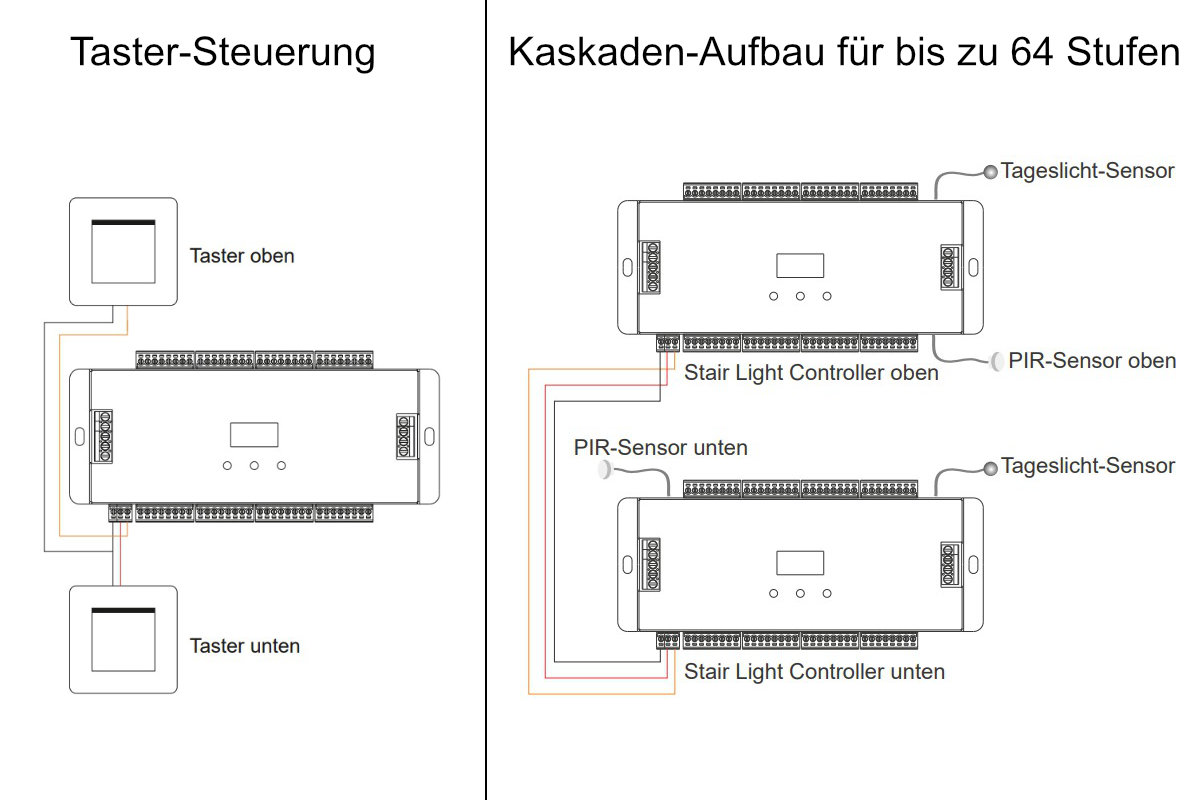

Wiring diagram:
Scope of delivery:
- Staircase effect controller
- 2 x PIR sensor
- 2 x extension cable (5m) for PIR sensor
- 1 x twilight sensor
Technical data:
| Item-Nr. | LK142 |
| Output ports | 32 x 5-24VDC, 1A step illumination 2 x SPI pixel for running light |
| Adressable pixel | Up to 960 pixel |
| Adressable pixel types | WS2801, 2803, 2811, 2812, 2813, 2815 TM1804, 1809, 1812, 1829, 1914A UCS1903, 1909, 1912, 2903, 2909, 2912 UCS5909, 6912 LPD6803, 1101, 8803, 8806 GS8206, 8208 GW6205 P9813 SK9822 |
| Powersupply | 5 - 24VDC (via ext. powersupply) |
| Input ports | 2 x 5-24VDC voltage input 2 x PIR motionsensor 2 x pushbutton (+ cascade option) 1 x daylight sensor |
| IP protection | IP20 |

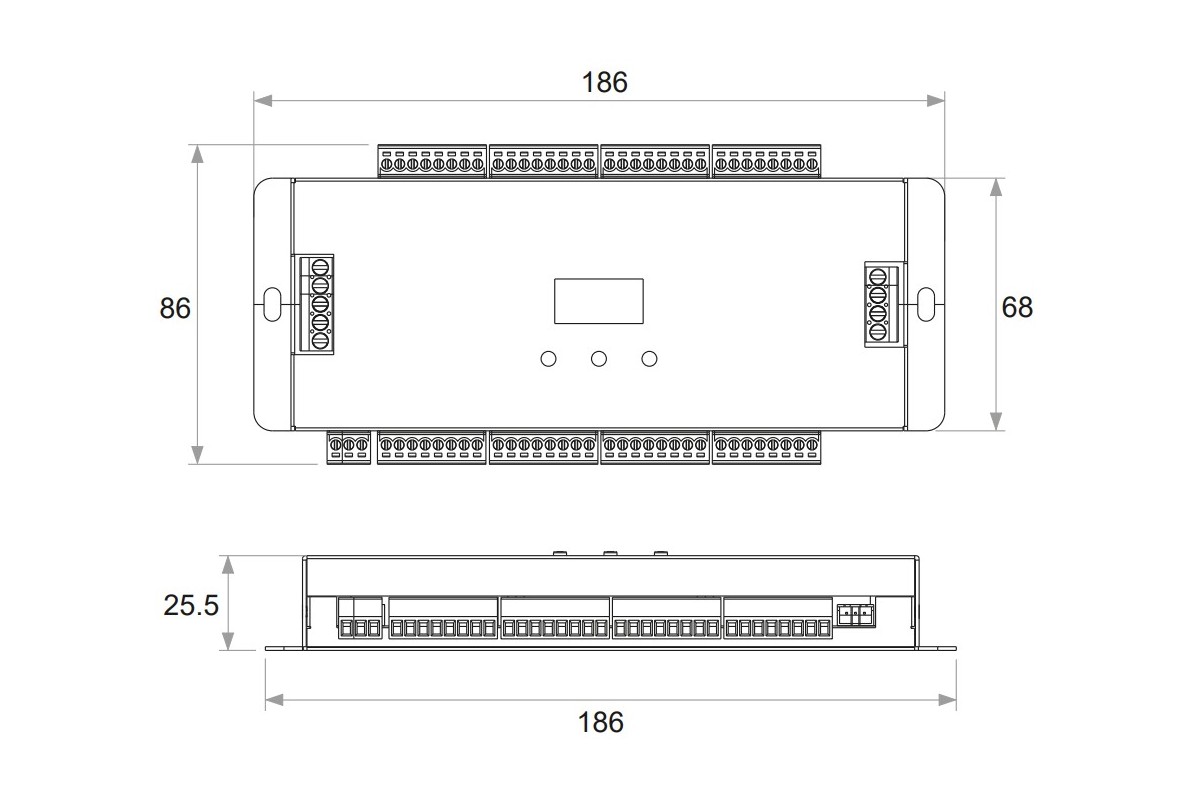

| Dimensions | L186×W86×H26(mm) |
| Weight | 520g |
| Features: | ext. pushbutton trigger, Integrierte Effekte, on/off effects / waterflow, stairway effect |
|---|---|
| Pixel outputs: | 1 |
| Steuerung: | iOS / Android-App |
| Anzahl Pixel: | 960 |
