ZigBee universal LED driver | 5 x 4A

€69.00*

Available, delivery time: 3-5 days

Driver version
Product number: LK115-U
Available stock: 127

ZigBee universal LED driver for PHILIPS HUE, OSRAM LIGHTIFYIKEA TRADFRI oder AMAZON ALEXA.

The LK115-U can be used for all LED applications. Depending on the setting, it works as:

  • ZigBee LED dimmer for white and single color LEDs
  • ZigBee CCT driver for LED lighting with adjustable color temperature
  • ZigBee RGB driver for color effects
  • ZigBee RGBW driver for solutions with color effects and extra white
  • ZigBee RGB+CCT driver

The respective function can be set at the beginning via a DIP switch.

The LK115 series works with the ZigBee 3.0 standard. This makes it compatible with established systems such as Philips HUE or Ikea TRADFRI. LED strips with 12V or 24V can be connected to the driver. Also LED spots, LED panels and other components with this function and constant voltage can be operated.




Video instructions for integration with PHILIPS HUE



Voice control via AMAZON ALEXA

Also the control via voice assistant like AMAZON ALEXA / ECHO is possible. The simplest option here is AMAZON ECHO PLUS or ECHO SHOW with which you can directly control the ZigBee LED driver by voice. For other ALEXA systems you can realize voice control via a gateway. Since there are already corresponding ALEXA Skills for the established gateways of Philips HUE or Ikea TRADFRI, all LED strips connected to the ZigBee driver can also be controlled by voice here. You can find detailed instructions on this in our blog post "Lighting control with Amazon Alexa".

Other ZigBee components, such as ZigBee light switches, ZigBee remote controls, etc., which comply with the ZigBee 3.0 standard, can of course also be integrated.

Video tutorials for voice control





Scope of delivery:

1 x ZigBee Universal LED driver LK115-U



Technical data:

Modes: Dim | CCT | RGBW | RGB+CCT
Voltage: 12V-24V DC
Power: Power supply via external switching power supply (not included)
Outputs: 5 x 4A

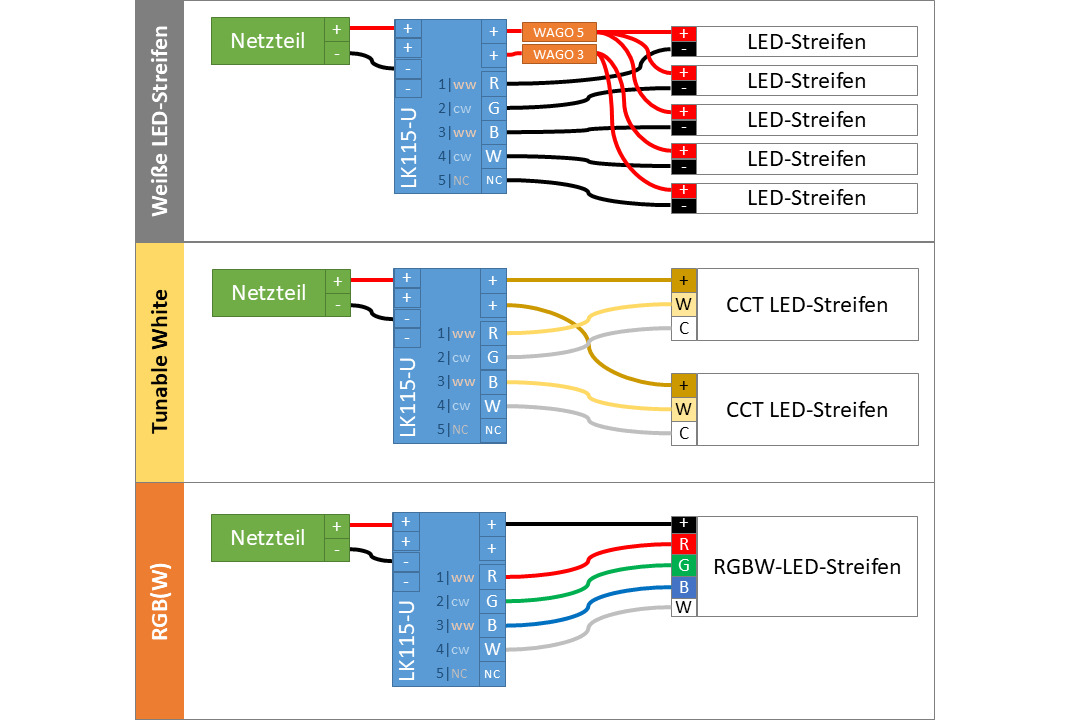

Connection: Input (V+ | Ground) Output (5 channels | V+)
IP class: IP 20
Dimensions (L*W*H): 145*47*16mm



Note: The driver has double voltage inputs (++--). For high connected load (> 200 Watt), use our special connection cables for high connected loads (> 200 watts) in order to divide the current load between the two inputs. The large power supplies HLG-480 and HLG-600 already have double voltage outputs, so that both voltage inputs of the driver can be used directly here.

The driver is integrated as 1 luminaire in all modes. In RGBW mode, for example, the options for setting color effects and controlling white light are then available for 1 luminaire. See also our instruction videos above.




Dimensions:

Properties "ZigBee universal LED driver | 5 x 4A"
Driver version: Universal 5x4A
Data according to manufacturer. Errors and changes reserved.
