LED Repeater / Amplifier | 4 x 6A
Product number:
LK51
Available stock:
117
This LED amplifier works with an operating voltage of 12V to 36V DC. It offers 4 channels with 6 amps output power each.

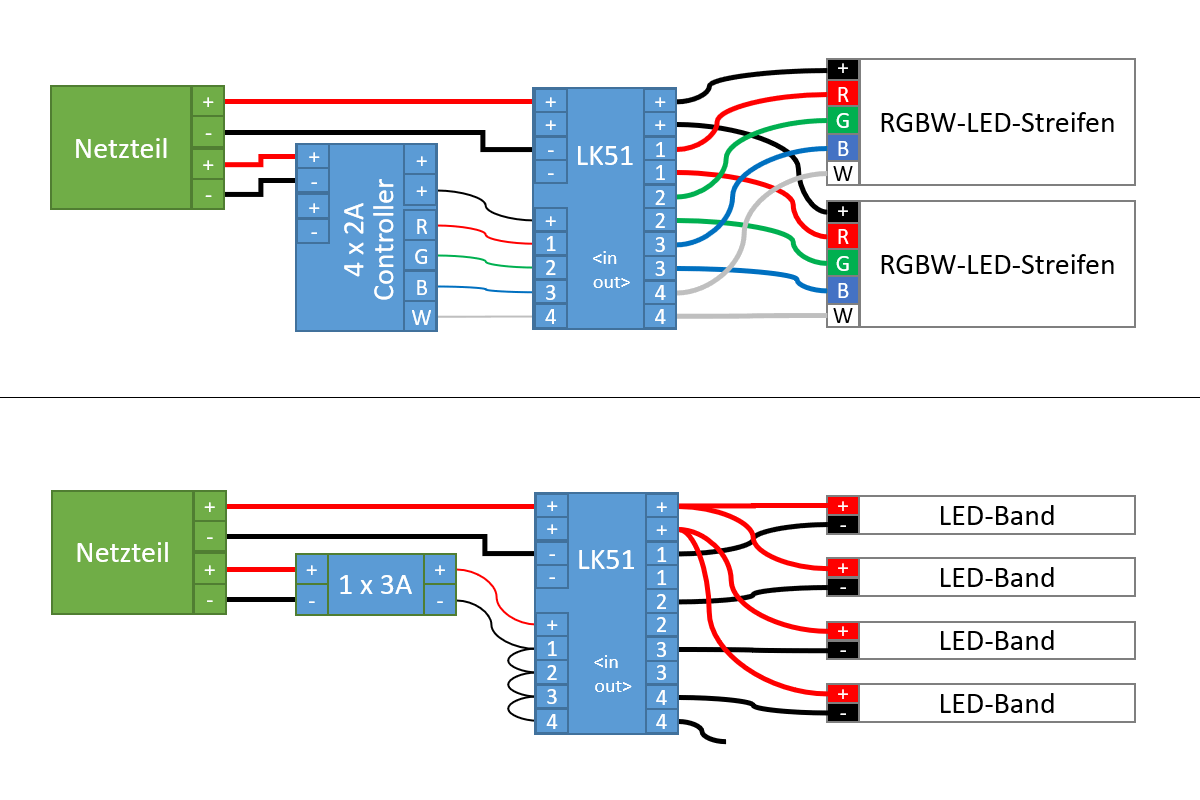

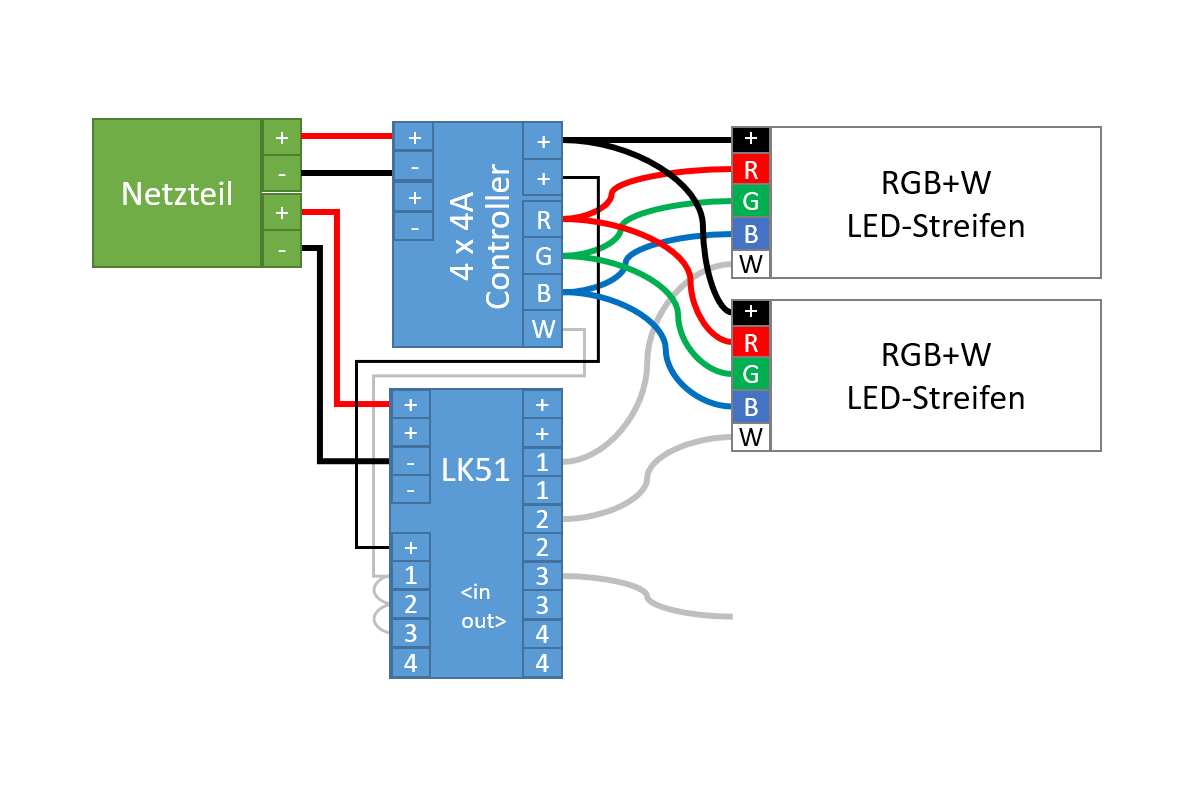

Repeaters are used when the output power of the controller is not sufficient. For example, you want to use a controller with a certain control technology (DALI, KNX, radio or other), but your LED installation needs more amperage (amps) than the controller can provide. In this case, connect the controller to a repeater and run all LED strips through the repeater.
Note: We do not recommend running LED strips in parallel on controllers AND repeaters, as this may result in brightness and/or color deviations. The basic rule is: Either connect everything to controllers or everything to repeaters.
Technical data:
Dimensions: 170*58*29mm
Voltage: 12-24V DC
Power: 4 x 6A
IP class: IP20
Note: The driver has double voltage inputs (++--). For high connected load (> 200 Watt), use our special connection cables for high connected loads (> 200 watts) in order to divide the current load between the two inputs. The large power supplies HLG-480 and HLG-600 already have double voltage outputs, so that both voltage inputs of the driver can be used directly here.
Accessory Items
Connection cable for driver with double input
€2.90*
Y-cable for driver with double input. This allows both inputs of the driver to be used and effectively splits the current load.
2 variants are available:
0,75mm² for connections up to 12A
1,5mm² for connections up to 25A
Note: Due to the wide wire end ferrules on the power supply side, the connection cables do not fit into typical WAGO terminals here. Instead, use e.g. classic luster terminals.
Product number:
K0910mas
