RGBWW 4in1 IP68 for underwater: 60 LEDs/m - 14mm wide
- LED Typ: 5050 - RGBW (4in1) - 60 LED/m
- Water protected with IP68
- Brightness: 1,220lm/m total. (500lm/m for white)
- Voltage: 24V
- Power: 19,2 Watt/m
- Width: 14mm
Price for 1 roll = 5 meters
The latest form of RGBWW LED strips consists of 4 in 1 LEDs. Here, all 4 colors are integrated into one LED housing. This means you no longer have alternating white and RGB LEDs on the flex strip and thus a harmonious light distribution even at short distances. An ideal solution e.g. for effect lighting applications in confined areas!

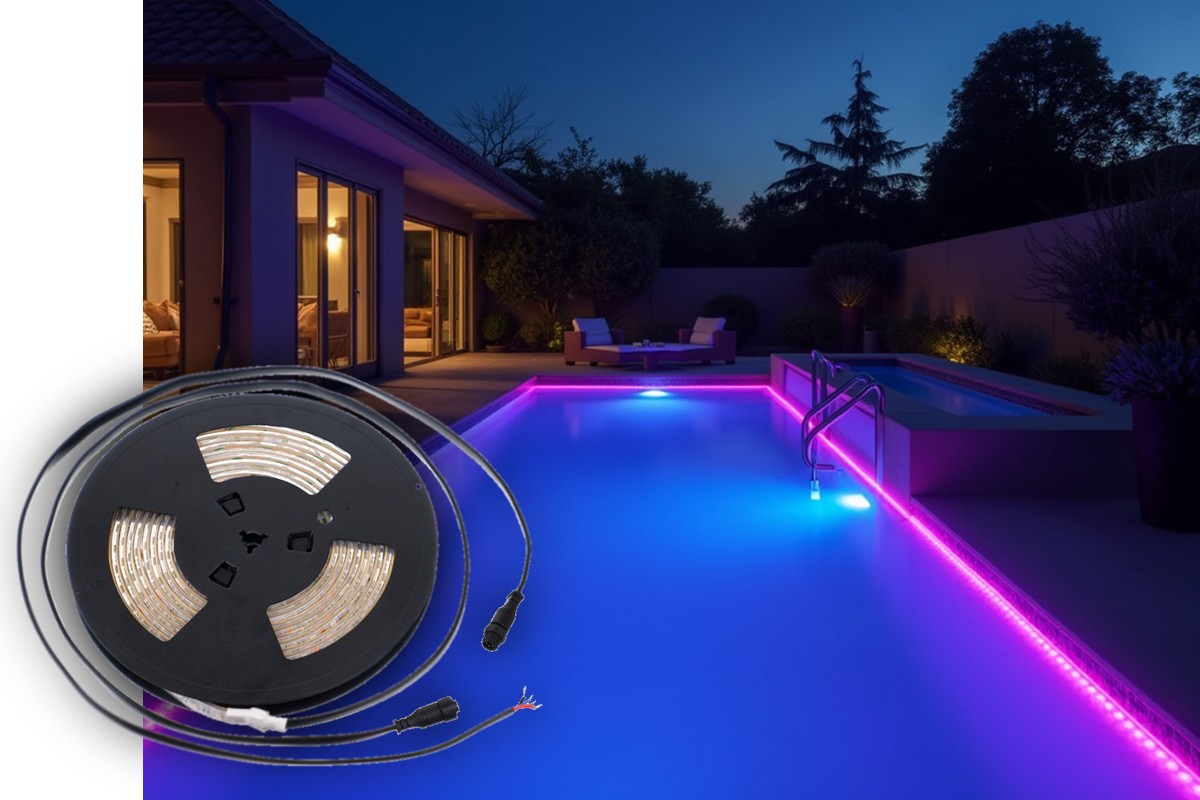

This version is water protected with a silicone tube and additional silicone filling. Thus, the RGBWW LED strip achieves IP68 and is therefore, in addition to outdoor applications or e.g. also in the bathroom, the right choice for use under water. For all permanent applications under water, such as in the pool, pond or fountain, a minimum protection of IP68 is required, IP67 or even smaller variants are not sufficient!
On the LED tape is directly soldered 1m connection cable with connector. In addition, another 1m cable with the matching counterpart of the connector is supplied. However, the connector itself is only IP67 and, if this is to be used under water, still requires an IP68 sleeve (e.g. from RAYTECH).
Available variants
- 5m-Roll IP68 Water protection in silicone hose and additional silicone filling, incl. 1+1m connection cable.
Notes on accessories:
To operate 5m (1 roll) of LED strips, a 24V power supply with min. 110 Watt is required. 5m x 19,2W/m + 10% safety = 110 Watt.
https://shop.led-studien.de/de/zubehor/netzteile
For a color control of the 5m in 24V version a RGBW controller (4-channel) with min. 4 x 1,2 Amps is needed. 110W / 24V / 4 = 1,2 Amps.
https://shop.led-studien.de/de/controller/standard-rgbw
You will find answers to frequently asked questions in our FAQ.
| Beamangle (θ | FWHM): | 120° |
|---|---|
| Brightness lm/m: | 1200 |
| Color consistency: | SDCM < 3 |
| Color rendering: | CRI>80 |
| Color temperature: | 3000K warm |
| Connecting cable: | 100 cm |
| Cutable every (cm): | 10 cm |
| Energy efficiency class: | G |
| LED stripe hight: | 4 |
| LED stripe length: | 5m |
| LED stripe width (mm): | 14 |
| LED type / size: | 5050 |
| Mounting: | Integrated 3M adhesive tape, Metal clamp (accessories) |
| Nominal power: | 20 |
| Operating temperature: | -20°C to +40°C |
| PCB color: | white |
| Voltage: | 24V |
| Water protection: | IP68 underwater |
| LED/m: | 60 |
