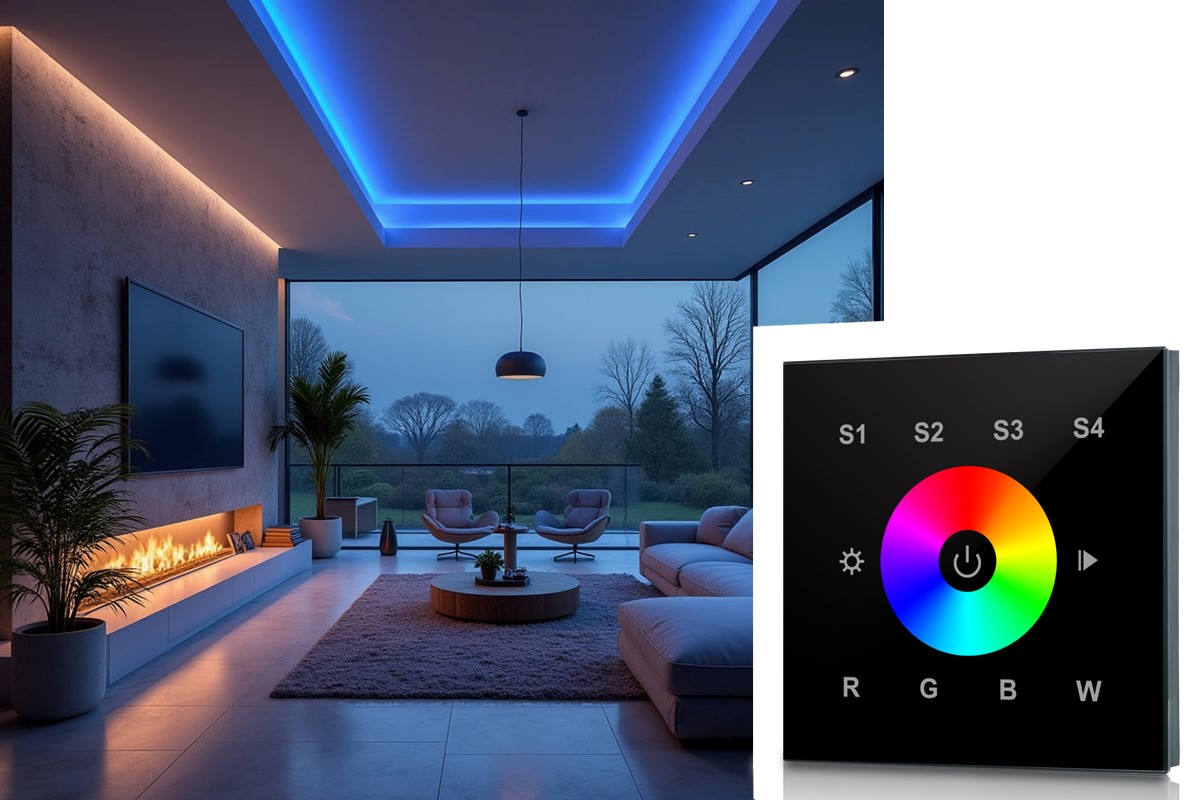

RGBW touch wall control | 1 zone | black

€52.50*

Available, delivery time: 3-5 days

Color
Select variant
Product number: LK55w4bb
Available stock: 26
  • Touch control for RGBW driver of the LK55 series
  • Controllable zones: 1
  • 4 memory buttons for individual color scenes
  • Power supply: 110-240VAC
  • Color: black



Our RGBW wall remotes differ in some details:

  • 1 Zone Wall remote control with touch field (4 memory keys)
  • 4 Zone Wall-mounted remote control with touch field (4 memory locations, 4 zones can be controlled separately)

All remote controls can operate all drivers / receivers of the LK55 series and, if required, also the WiFi driver LK35.

It is also possible for several remote controls to operate one driver. E.g. a handheld remote control and an additional wireless wall panel or several wireless wall panels at different positions in the room. If required, up to 8 remote controls can operate 1 driver.

The range of the radio signal is up to 25m. Visual contact is not necessary. Solid walls made of concrete, brick or similar naturally weaken the radio signal.



Combination with switch series of well-known manufacturers

The housing frame of the controls measures 86x86mm with a depth of 12mm. In case you want to combine the wall control with light switches, sockets etc., the following switch series are similar in design and dimensions:

  • MERTEN M-Plan
  • GIRA E2 (flat installation)
  • JUNG Serie A Creation
  • KOPP HK i8
  • ROHDE+ROHDE

Check the exact dimensions directly with the manufacturers.



Technical data:

 Item no. LK55w4bb
 Power supply 110-240VAC
 Dimensions (WxHxD) 86x86x12mm, Installation depth: 20mm





Operation:

Manufacturer
LED-Studien GmbH
Mühlenweg 15
04451 Panitzsch
info@led-studien.de

Recommended driver
