2m LED U-profile D12

LED-Studien GmbH

€0.00

Prices incl. VAT plus shipping costs

Product number: AL54bund

Available stock: 99945

Configurator for your LED profile ↓

Make sure that profiles & covers (orange check mark) are selected and add further accessories if necessary.

You can also reorder only accessories (e.g. mounting clips) by clicking away the preselection for the profiles and covers.

You can order multiple quantities of the configuration by clicking on the quantity in front of the “Shopping cart” button, e.g. 10 x (1 profile + 1 cover + 3 brackets).

Do you need a sample?

12mm LED Profile D12

Covers for 12mm LED profiles ELBE + DONAU

Accessories for 12mm LED profile D12

12mm LED Profile D12

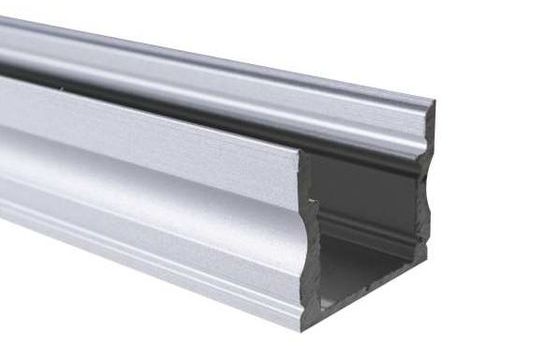

12mm LED profile D12, silver, 2m

€0.00

Select

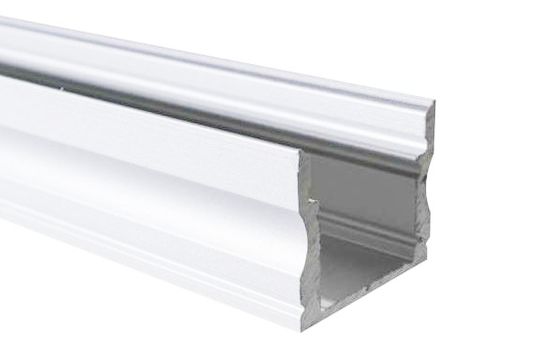

12mm LED profile D12, white, 2m

€0.00

Select

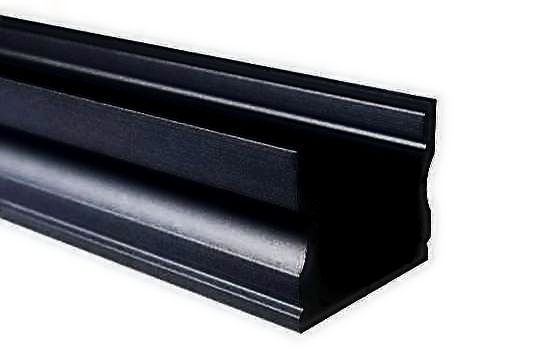

12mm LED profile D12, black, 2m

€0.00

Select

Covers for 12mm LED profiles ELBE + DONAU

Cover opal CH7

€0.00

Select

Cover transparent CH8

€0.00

Select

Accessories for 12mm LED profile D12

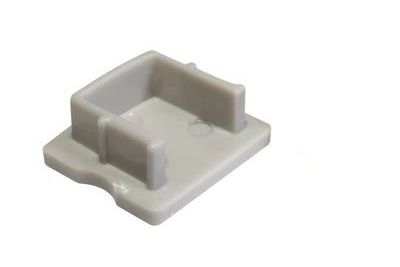

End cap for D12 profile, gray

€0.00

Select

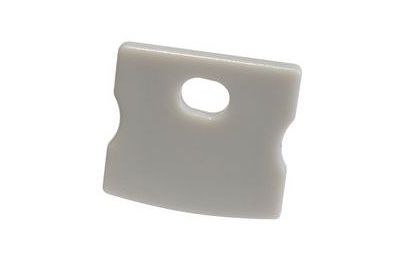

End cap for D12 profile, gray, with cable aperture

€0.00

Select

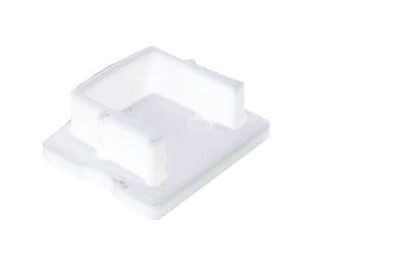

End cap for D12 profile, white

€0.00

Select

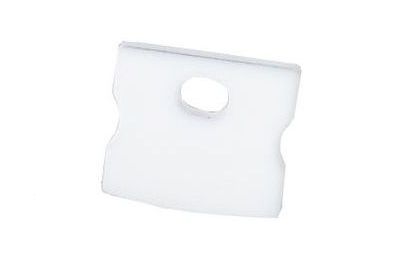

End cap for D12 profile, white, with cable aperture

€0.00

Select

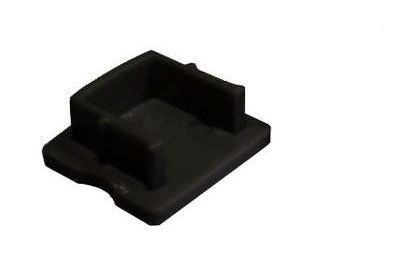

End cap for D12 profile, black

€0.00

Select

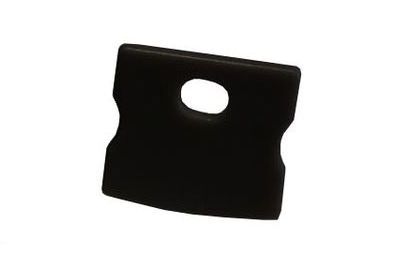

End cap for D12 profile, black, with cable aperture

€0.00

Select

Mounting clamp for profile E12 & D12

€0.00

Select

The LED top-mounted profile D12 is very unobtrusive thanks to its slimline design. It is mainly used indoors. The groove of the profile can hold LED strips up to 12 mm wide. This aluminum profile also dissipates heat from the LED strips, which significantly increases their service life.

The installation depth of over 14 mm means that LED points are completely avoided with LED strips with a density of 72 LED/m or more, resulting in a perfect, homogeneous light line.

Technical data:

Width: 17 mm

Height: 14.6 mm

Length: 10 cm sample

Width inside for LED strips: 12 mm

Other mounting options and accessories for line lights

If you want to realize long line lights, pendant lights or a hidden cable routing with this profile, choose the matching mounting rail PL10 with corresponding accessories.

The mounting rail is available in silver, black & white.

Further are available:

Rail connectors straight and angled
Cable suspensions
Mounting springs for fastening in drywall

Technical data:

Width: 17 mm

Height: 14.6 mm

Width inside for LED strips: 12 mm

Properties "2m LED U-profile D12"

LED stripe width (mm):	12
Profile type:	standard U profile

Data according to manufacturer. Errors and changes reserved.
