RGBW Pixel LED strips directly controllable via DMX | 24V

LED-Studien GmbH

a g

product-datasheet

€0.00*

Prices incl. VAT plus shipping costs

Available, delivery time: 3-5 days

Water protection

IP20 - 13m reel

IP20 without waterprotection

IP67 with silicon tube

Product number: LK11-6010c-bund

Available stock: 99960

DirectDMX LED-Band (5m Rolle)

24V Einspeisekabel

DMX Einspeisekabel

DMX Endwiderstand / Terminator

Montageklemme

DirectDMX LED-Band (5m Rolle)

Mehrere LED-Bänder können über T-Kabel (siehe unten) miteinander verbunden werden.

RGBW Pixel LED strips directly controllable via DMX | 24V | IP67

€0.00

Select

24V Einspeisekabel

Es wird mindestens eines dieser Kabel benötigt, um Spannung in die LED-Streifen einzuspeisen.

DMX+24V feed cable for DirectDMX LED strip LK11-6010 - female

€0.00

Select

24V feeding cable 100cm for DirectDMX LED strips series LK11-6010 - male

€0.00

Select

T-connecting cable for 2 DirectDMX LED strip LK11-6010 + 24V input

€0.00

Select

DMX Einspeisekabel

Alternative Einspeisekabel nur für das DMX-Signal. Die 24V Spannung muss hier separat an das LED-Band geführt werden, z.B. über ein T-Verbindungskabel.

DMX feed cable 20cm for DirecDMX LED strips series LK11-6010 - female

€0.00

Select

DMX feed cable 100cm for DirecDMX LED strips series LK11-6010 - female

€0.00

Select

DMX Endwiderstand / Terminator

Sollte als Abschluss der DMX-Installation am letzten Glied verwendet werden, damit das DMX-Signal nicht reflektiert und die Übertragung beeinträchtigt.

120Ohm terminator for DirectDMX LED tape LK11-6010 - male

€0.00

Select

Montageklemme

Die Klemmen halten den Silikonschlauch sicher in Position.

mounting clamp for 14mm silicone (1 piece)

€0.00

Select

These digital LED strips can be controlled directly via DMX. No separate DMX SPI converter or decoder is necessary, but a DMX signal can be fed directly into the strip.

The DirectDMX LED strips are also the ideal solution when it comes to large installations with a length of several meters. Since the power supply of the RGBW pixels runs on 24V, longer lengths are possible without any problems and without the need for a new power supply. The strips are also available with an IP67 waterproof silicone cover, making them suitable for outdoor use.

10 silicone brackets (30x5mm) with screws are included for mounting.

Addressing

The addressing is factory set so that the pixels are addressed starting at start address 1 (color sequence RGBW). If you need a different addressing, just let us know. Optionally, you can also purchase a separate AddressWriter, which allows flexible addressing.

Properties "RGBW Pixel LED strips directly controllable via DMX | 24V "

IP protection:	IP67
Pixel/m:	10
Power:	17
Seperatable every (cm):	10 cm
Strip width in mm:	14
Voltage:	24V
LED/m:	60

Data according to manufacturer. Errors and changes reserved.

Manufacturer

LED-Studien GmbH

Mühlenweg 15

04451 Panitzsch

^{info@led-studien.de}

Accessories for DirectDMX LED strips

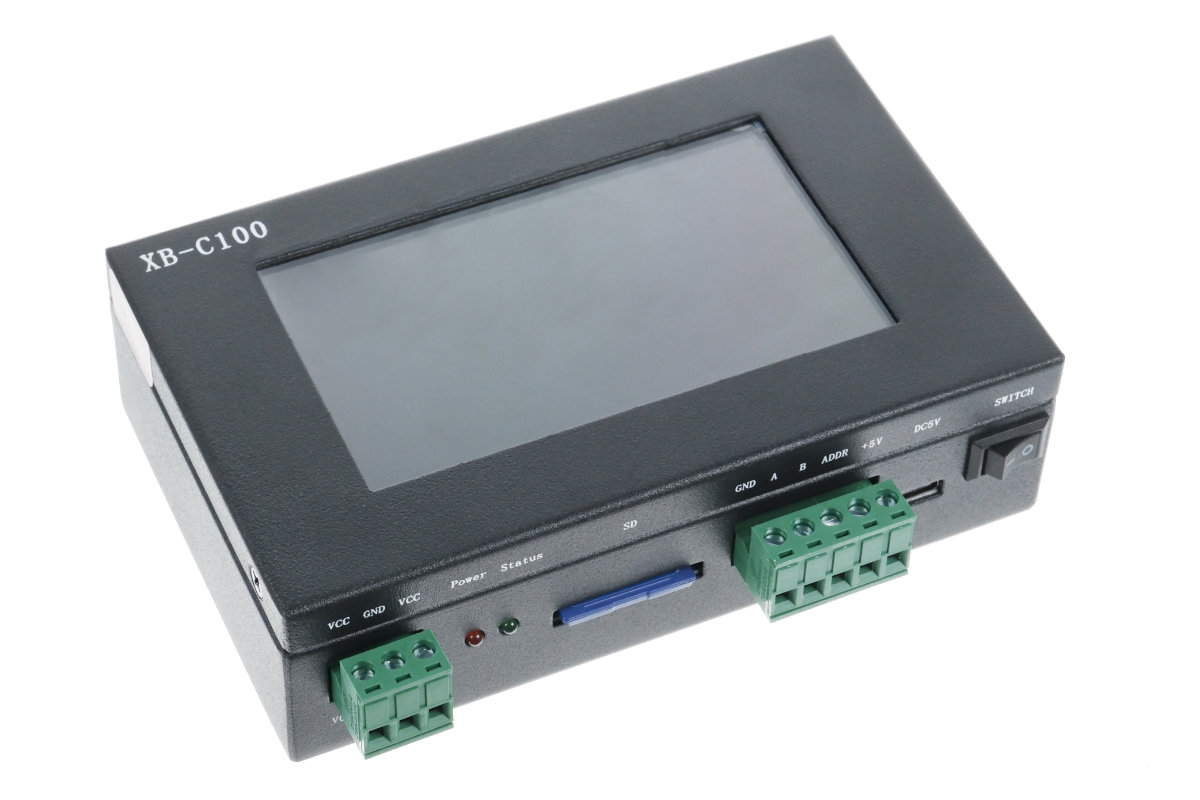

AdressWriter for DMX LED stripes & chains

This AddressWriter allows the individual addressing of the DMX LED strips LK11-6010b, LK11-6010c and DMX LED chain LK47-2.The DMX start address as well as an offset (to skip addresses between the pixels) can be set. A grouping of the pixels is also possible. The AdressWriter also has several test programs to test the LED strip or chain. Powersupply via standard USB-C socket or 12-24 VDC screw terminals. Scope of delivery: AddressWriter SD-cardUSB-A to USB-C cable Adressable ICs:UCS512A-H, USC512KH, UCS512KLSM1651, SM17512, SM17500, SM1852X, SM1952XTM512AB-E, TM512ALHi512A0, Hi512A4, Hi512A6, Hi512DGS8511-13 GS8515, GS8516, GS8523-26QEP512PKW512A

Product number: LK11-WT03

€220.00*

AdressWriter for DMX LED stripes

This AddressWriter allows the individual addressing of the DMX LED strips LK11-6010b and LK11-6010c. The DMX start address of the strip as well as an offset (to skip addresses between the pixels) can be set. A grouping of the pixels is also possible. The AdressWriter also has several test programs to test the LED strip. Powersupply via standard USB-C socket or 12-48 VDC screw terminals. Scope of delivery: AddressWriter

Product number: LK11-WT01

€125.00*

Accessories for IP67 LED strips

Silicone end cap: 14mm

Suitable silicone can be ordered separately.

Product number: SAK14

€0.30*

Silicone (acetate-free!) - 5ml

With this silicone you can seal neonflex- or normal LED-stripes in a silicone tube (IP67/68) with the corresponding end-caps watertight. This is especially usefull if a roll has to be devided into several parts. The silicone is acetate-free, thus no acetic acid is produced while curing, which would damage the electrical components.A tube with 5ml is enough to seal approx. 2-5 end-caps (depending on the size of the end-caps).

Product number: SIL01

€2.50*
