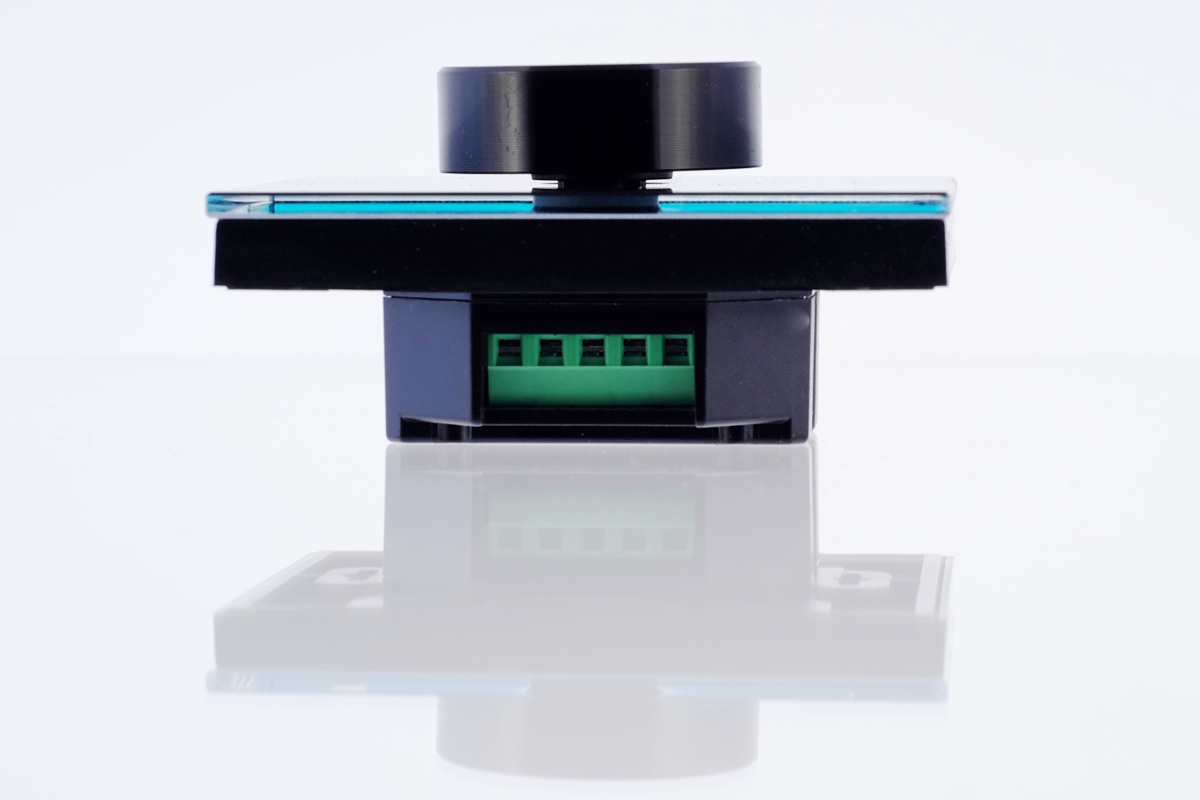

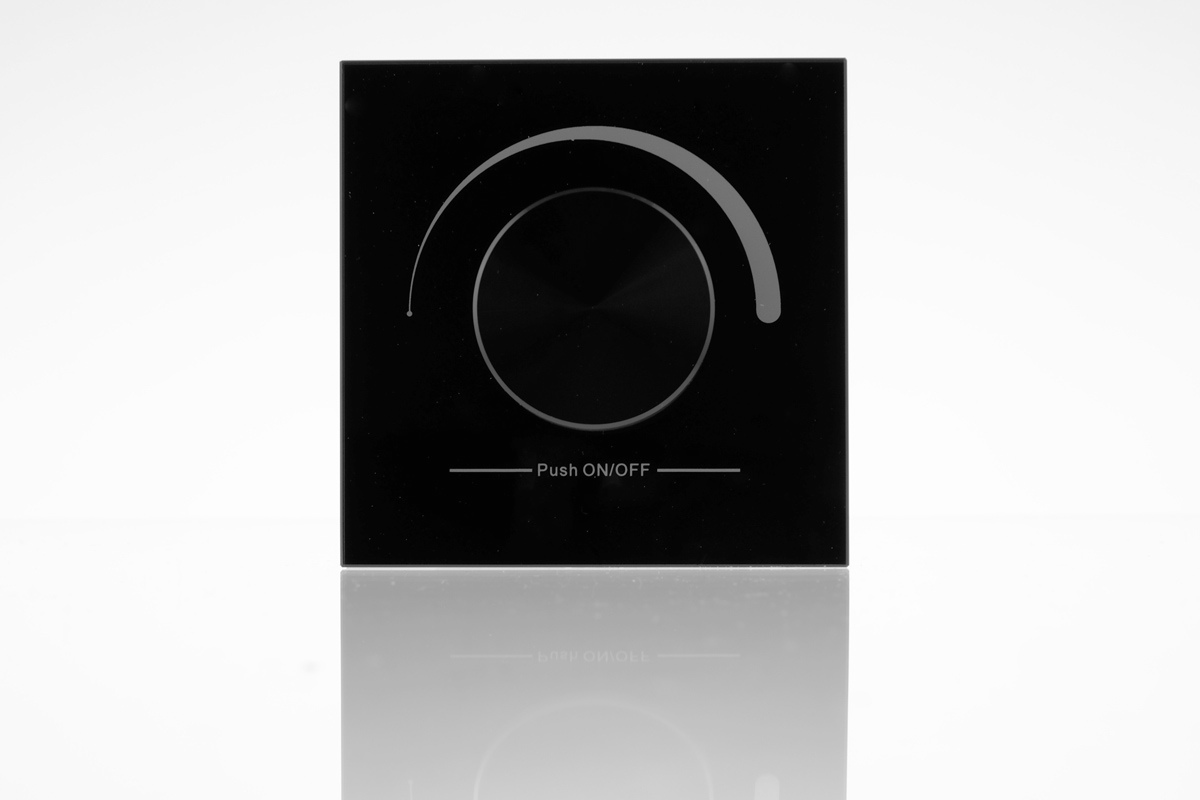

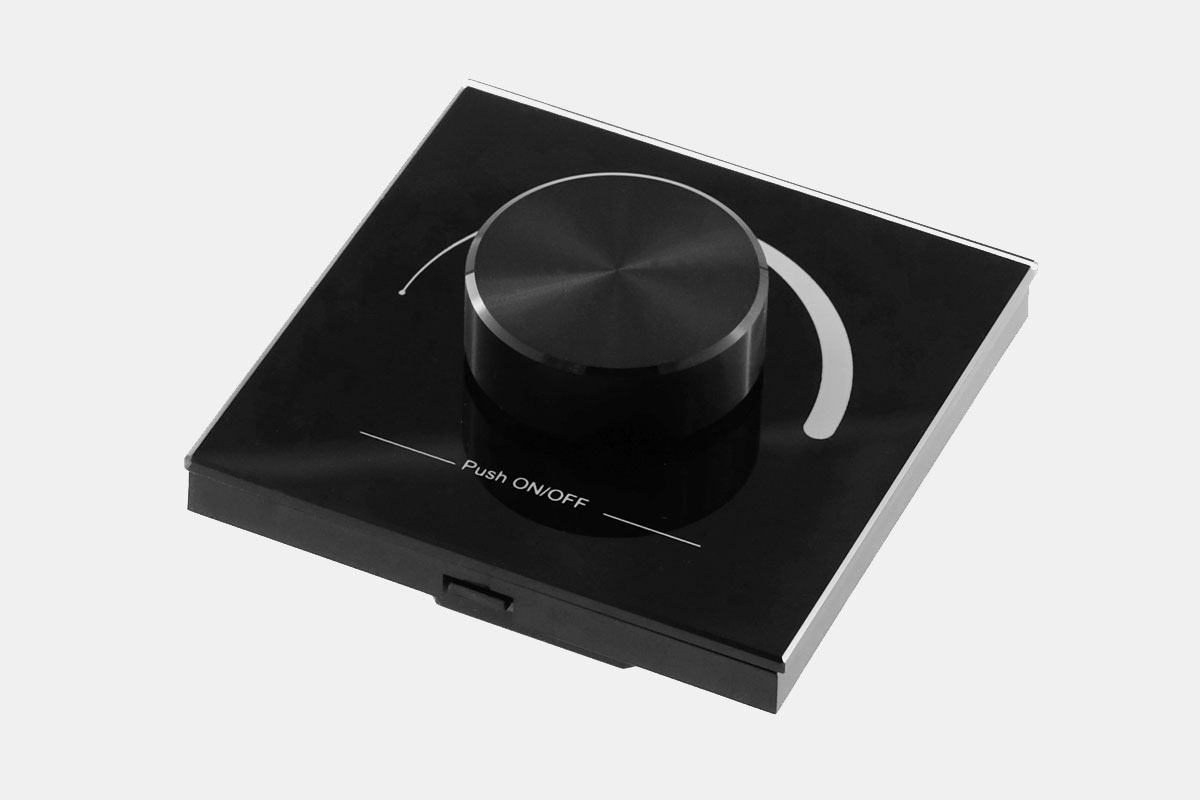

Remote control with rotary knob | wall mounting

Radio insert module for use with normal light switches (GIRA, MERTEN, BUSCH JÄGER, JUNG etc.) for universal driver of the LK55 series Controllable zones: 1 power supply: 3V CR2430 battery is simply placed in the flush-mounted box With this insert module you can convert ordinary light scanners to a radio control for your LED lighting. The tiny module is connected to the existing light switch and then controlled by it. The module itself, just like all other LK55 remote controls, then sends radio signals to the LK55 LED controller, which takes over the control of the LEDs. This module is the ideal solution if you want to integrate LED lighting into an existing switch/button program and stay within one design line. Simply place the module behind the existing pushbutton in the mounting box, connect the cables and you have an elegant wireless solution for your LED lighting. With a single pushbutton, a long press dims the brightness up or down (always alternating), a short press turns the light on and off. It becomes even more comfortable with a 2-fold pushbutton. In this case, one button dims up, the other button dims down. Switching on and off is done by a short press on both buttons. As usual with the LK55 series, you can also combine several remote controls (several LK55p in different pushbuttons, 3 light pushbuttons and a hand-held remote control, additional app control, etc.).  NOTICE:  The LK55 remote control for pure dimming should not be used in combination with CCT LED strips (adjustable color temperature) or RGBW LED strips, but only for pure white LED strips with fixed color temperature. Background: When dimming via you would lose all color settings here, because the LED drivers drive all outputs (RGBW or WW/KW) down or up identically. Instead, dim via the appropriate CCT or RGBW remote controls. Technical data:  Item no. LK55P  Power supply 3V CR2430 batteries  Dimensions (BxWxD) 40x40mm, Installation depth: 12mm   Operation: The following video shows the operation and installation of the LK55p:   The module has 3 connection cables for ON, OFF & COM Connection of the LK55p to a simple wall switch The ON & OFF cables are connected to each other. The pushbutton then takes over the switching on and off (short press in each case) and the dimming up and down (long press in each case).   Connection of the LK55p to a double pushbutton The two COM ports of the double pushbutton are connected here. ON & OFF are distributed to the two keys of the double pushbutton. Thus, one button can switch on (short press) and dim up (long press). The second button switches off (short press) and dims down (long press).   Note: It is also possible to connect a double pushbutton with two Lk55p so that two separate light zones can be controlled. It is important that there is sufficient space for two LK55p radio modules in the flush-mounted box.

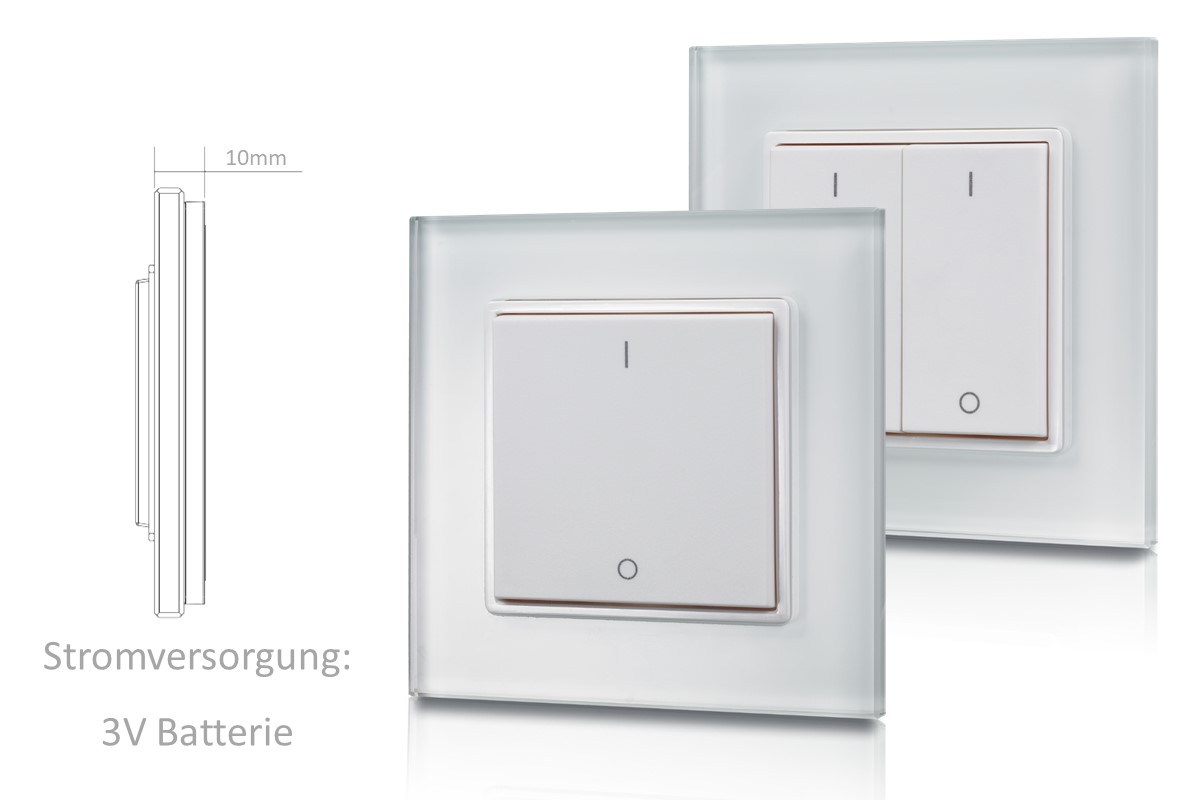

Pushbutton/dimmer for wall mounting or, thanks to the ultra-flat design, directly for gluing or screwing onto the wall. for universal controller of the LK55 series Controllable zones: 1 Power supply: 3V CR2430 battery Use in a standard switch series Since the stylus uses the standardized 55mm dimension (55x55mm), another frame can also be used. The central pushbutton can be removed and inserted into the frame of a known switch series, e.g. JUNG AS 500, MERTEN M, GIRA System 55 or GIRA E2. All major manufacturers have switch series in their program that fit the 55 standard dimension. LK55 series All remote controls can operate all drivers / receivers of the LK55 series and, if required, also the WiFi driver LK35. It is also possible for several remote controls to operate one driver. E.g. a handheld remote control and an additional wireless wall panel or several wireless wall panels at different positions in the room. If required, up to 8 remote controls can operate 1 driver. The range of the radio signal is up to 30m. Visual contact is not necessary. Solid walls made of concrete, brick or similar naturally weaken the radio signal. NOTICE:  The LK55 remote control for pure dimming should not be used in combination with CCT LED strips (adjustable color temperature) or RGBW LED strips, but only for pure white LED strips with fixed color temperature. Background: When dimming via you would lose all color settings here, because the LED drivers drive all outputs (RGBW or WW/KW) down or up identically. Instead, dim via the appropriate CCT or RGBW remote controls.   Technical data:  Item no. LK55K  Power supply 3V CR2430 batteries  Dimensions (BxWxD) 86x86, Installation depth: 13mm   Installation: Compatible with JUNG AS 500, GIRA System 55, GIRA E2 and many other switch series.

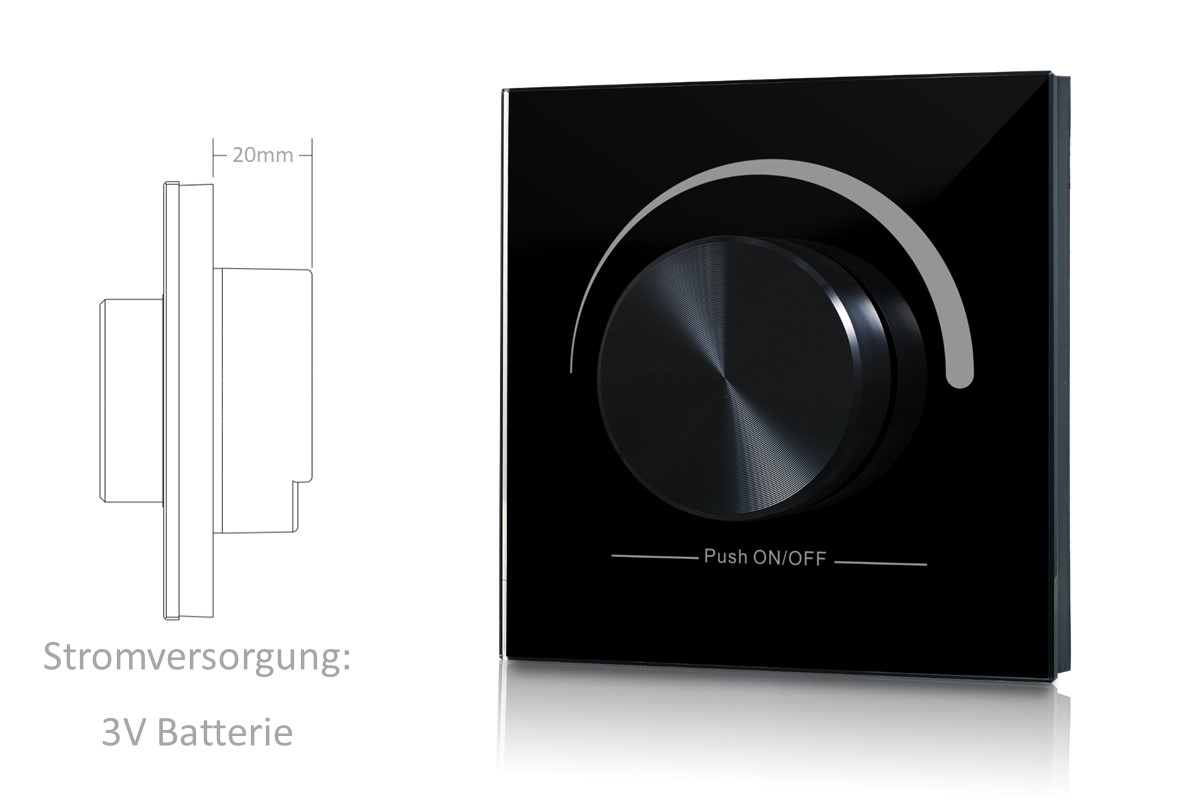

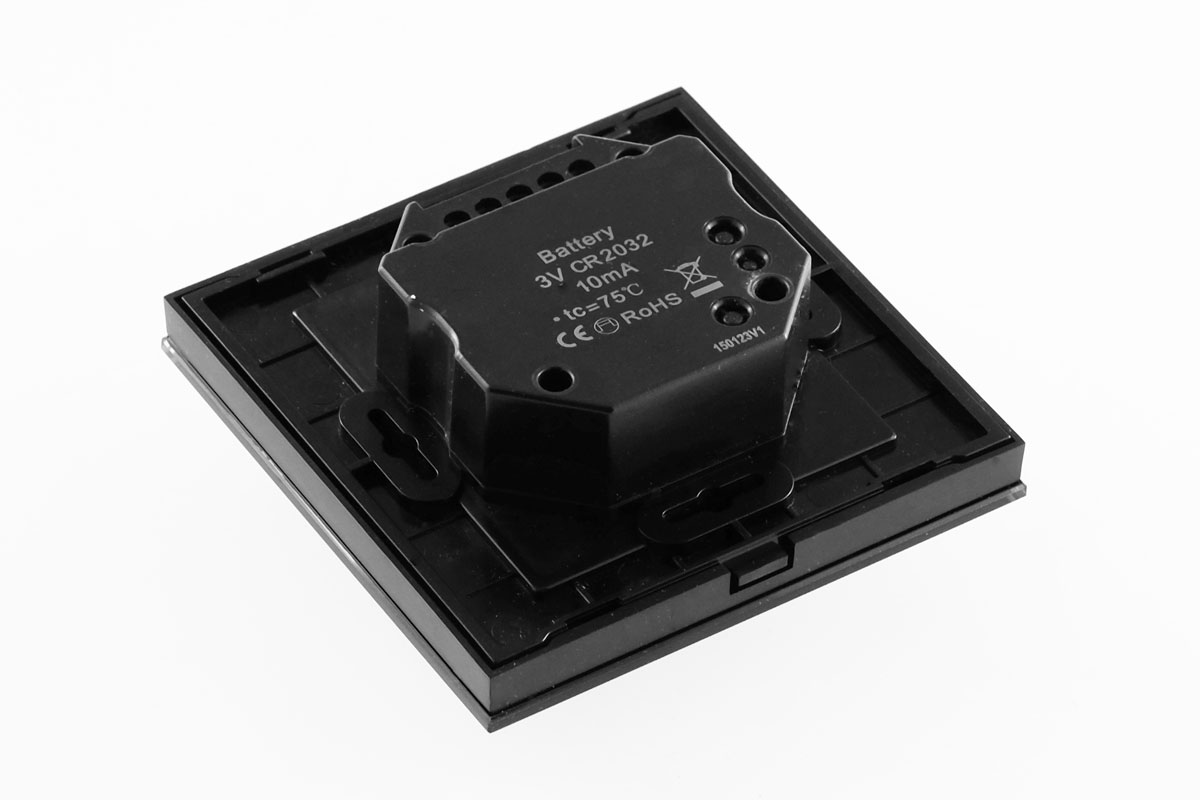

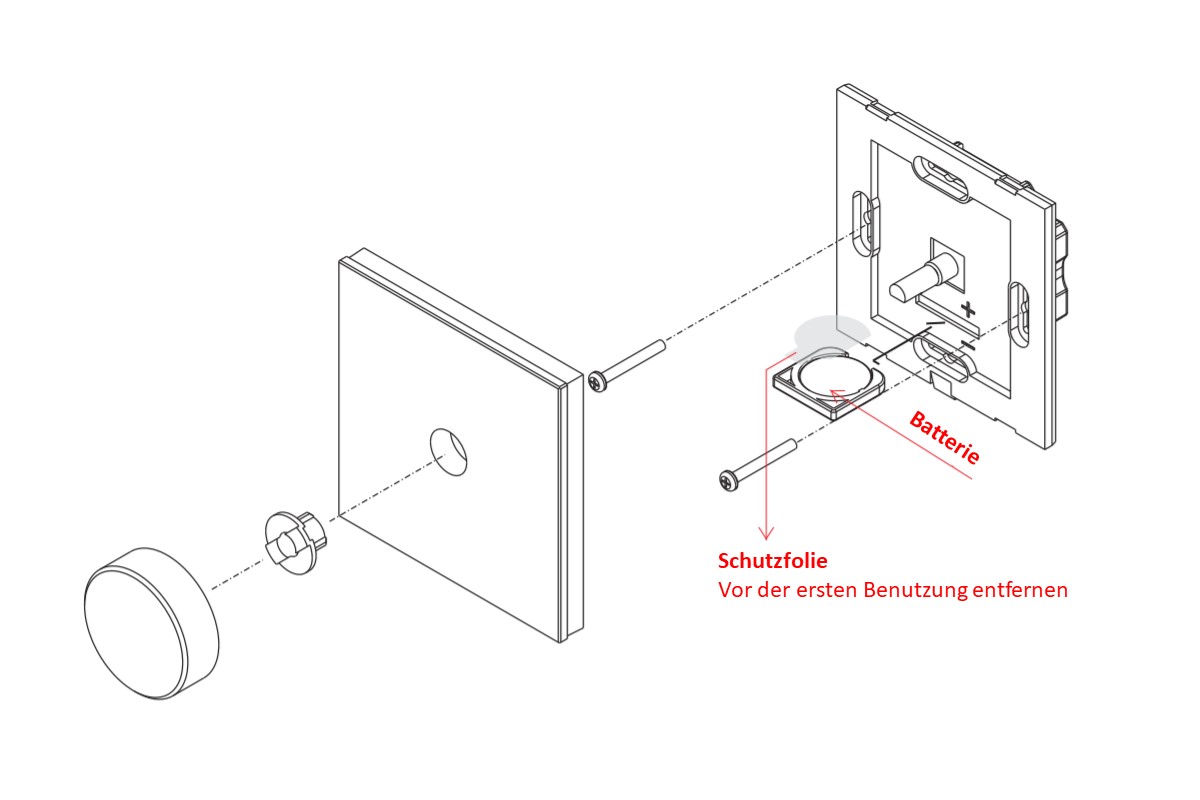

for 1-channel receivers of the LK55 series Controllable zones: 1 Battery operation: 3V DC, CR2025 All remote controls can operate all drivers / receivers of the LK55 series and, if required, also the WiFi driver LK35. It is also possible for several remote controls to operate one driver. E.g. a handheld remote control and an additional wireless wall panel or several wireless wall panels at different positions in the room. If required, up to 8 remote controls can operate 1 driver. The range of the radio signal is up to 30m. Visual contact is not necessary. Solid walls made of concrete, brick or similar naturally weaken the radio signal. Power supply: Note that some models are powered by a battery (coin cell) that must be replaced every 1-2 years. This applies to all pushbutton and potentiometer models. All models with touch field can be supplied via the 230V house network, so that no battery change is required.   Combination with switch series of well-known manufacturers The housing frame of the controls measures 86x86mm with a depth of 12mm. In case you want to combine the wall control with light switches, sockets etc., the following switch series are similar in design and dimensions: MERTEN M-Plan GIRA E2 (flat installation) JUNG Serie A Creation KOPP HK i8 ROHDE+ROHDE Check the exact dimensions directly with the manufacturers. NOTICE:  The LK55 remote control for pure dimming should not be used in combination with CCT LED strips (adjustable color temperature) or RGBW LED strips, but only for pure white LED strips with fixed color temperature. Background: When dimming via you would lose all color settings here, because the LED drivers drive all outputs (RGBW or WW/KW) down or up identically. Instead, dim via the appropriate CCT or RGBW remote controls. Technical data:  Item no. LK55W  Power supply 110-240VAC  Dimensions (BxWxD) 86x86x12mm, Installation depth: 20mm

for 1-channel receivers of the LK55 series Controllable zones: 1 Battery operation: 3V DC, CR2025 All remote controls can operate all drivers / receivers of the LK55 series and, if required, also the WiFi driver LK35. It is also possible for several remote controls to operate one driver. E.g. a handheld remote control and an additional wireless wall panel or several wireless wall panels at different positions in the room. If required, up to 8 remote controls can operate 1 driver. The range of the radio signal is up to 30m. Visual contact is not necessary. Solid walls made of concrete, brick or similar naturally weaken the radio signal. Power supply: Note that some models are powered by a battery (coin cell) that must be replaced every 1-2 years. This applies to all pushbutton and potentiometer models. All models with touch field can be supplied via the 230V house network, so that no battery change is required.   Combination with switch series of well-known manufacturers The housing frame of the controls measures 86x86mm with a depth of 12mm. In case you want to combine the wall control with light switches, sockets etc., the following switch series are similar in design and dimensions: MERTEN M-Plan GIRA E2 (flat installation) JUNG Serie A Creation KOPP HK i8 ROHDE+ROHDE Check the exact dimensions directly with the manufacturers. NOTICE:  The LK55 remote control for pure dimming should not be used in combination with CCT LED strips (adjustable color temperature) or RGBW LED strips, but only for pure white LED strips with fixed color temperature. Background: When dimming via you would lose all color settings here, because the LED drivers drive all outputs (RGBW or WW/KW) down or up identically. Instead, dim via the appropriate CCT or RGBW remote controls. Technical data:  Item no. LK55W  Power supply 110-240VAC  Dimensions (BxWxD) 86x86x12mm, Installation depth: 20mm

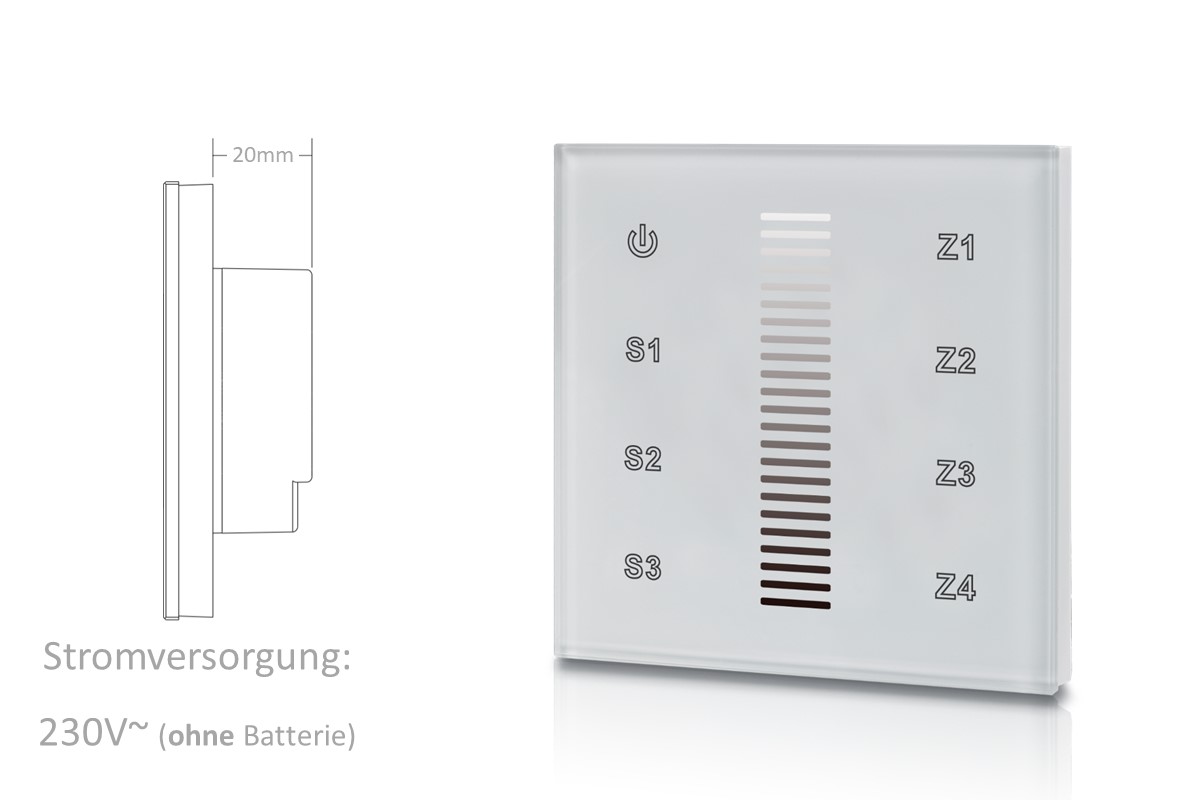

for universal driver of the LK55 series Operateable zones: 4 Memory locations: 3 Power supply: 100-240VAC All remote controls can operate all drivers / receivers of the LK55 series and, if required, also the WiFi driver LK35. It is also possible for several remote controls to operate one driver. E.g. a handheld remote control and an additional wireless wall panel or several wireless wall panels at different positions in the room. If required, up to 8 remote controls can operate 1 driver. The range of the radio signal is up to 30m. Visual contact is not necessary. Solid walls made of concrete, brick or similar naturally weaken the radio signal. Power supply: Note that some models are powered by a battery (coin cell) that must be replaced every 1-2 years. This applies to all pushbutton and potentiometer models. All models with touch field can be supplied via the 230V house network, so that no battery change is required.   Combination with switch series of well-known manufacturers The housing frame of the controls measures 86x86mm with a depth of 12mm. In case you want to combine the wall control with light switches, sockets etc., the following switch series are similar in design and dimensions: MERTEN M-Plan GIRA E2 (flat installation) JUNG Serie A Creation KOPP HK i8 ROHDE+ROHDE Check the exact dimensions directly with the manufacturers. NOTICE:  The LK55 remote control for pure dimming should not be used in combination with CCT LED strips (adjustable color temperature) or RGBW LED strips, but only for pure white LED strips with fixed color temperature. Background: When dimming via you would lose all color settings here, because the LED drivers drive all outputs (RGBW or WW/KW) down or up identically. Instead, dim via the appropriate CCT or RGBW remote controls. Technical data:  Item no. LK55TA1w  Power supply 110-240VAC  Dimensions (BxWxD) 86x86x12mm, Installation depth: 20mm   Operation:

Brightness control 1 light zone operateable 1 Channel All remote controls can operate all drivers / receivers of the LK55 series and, if required, also the WiFi driver LK35. It is also possible for several remote controls to operate one driver. E.g. a hand-held remote control and an additional wireless wall panel or several wireless wall panels at different positions in the room. If required, up to 8 remote controls can operate 1 driver. NOTICE: The LK55 remote control for pure dimming should not be used in combination with CCT LED strips (adjustable color temperature) or RGBW LED strips, but only for pure white LED strips with fixed color temperature. Background: When dimming via you would lose all color settings here, because the LED drivers drive all outputs (RGBW or WW/KW) down or up identically. Instead, dim via the appropriate CCT or RGBW remote controls. Technical data:  Item no. LK55FB-A1  Power supply 2x3V CR2025  Dimensions (LxWxH) 114x36x9mm   ATTENTION: We do not recommend using the LK55FB-A1 in combination with 1-zone wireless wall drivers, as they use a different method of switching on and off. This may mean that LEDs that have been switched off with a wireless wall driver cannot be switched on again with the LK55FB-A1. The LK55FB-A1 can only perform dimming in this case. We recommend the LK55FB1 as an alternative hand-held remote control.

Brightness control up to 4 light zones operateable Touch wheel for adjusting the brightness 1 Channel 3 memory keys for individual settings All remote controls can operate all drivers / receivers of the LK55 series and, if required, also the WiFi driver LK35. It is also possible for several remote controls to operate one driver. E.g. a handheld remote control and an additional wireless wall panel or several wireless wall panels at different positions in the room. If required, up to 8 remote controls can operate 1 driver. NOTICE:  The LK55 remote control for pure dimming should not be used in combination with CCT LED strips (adjustable color temperature) or RGBW LED strips, but only for pure white LED strips with fixed color temperature. Background: When dimming via you would lose all color settings here, because the LED drivers drive all outputs (RGBW or WW/KW) down or up identically. Instead, dim via the appropriate CCT or RGBW remote controls.   Technical data:  Item no. LK55FB1  Power supply 3 x 1,5V AAA batteries  Dimensions (LxWxH) 120x55x17mm   Operation:   This video explains the functions of the LK55FB1:

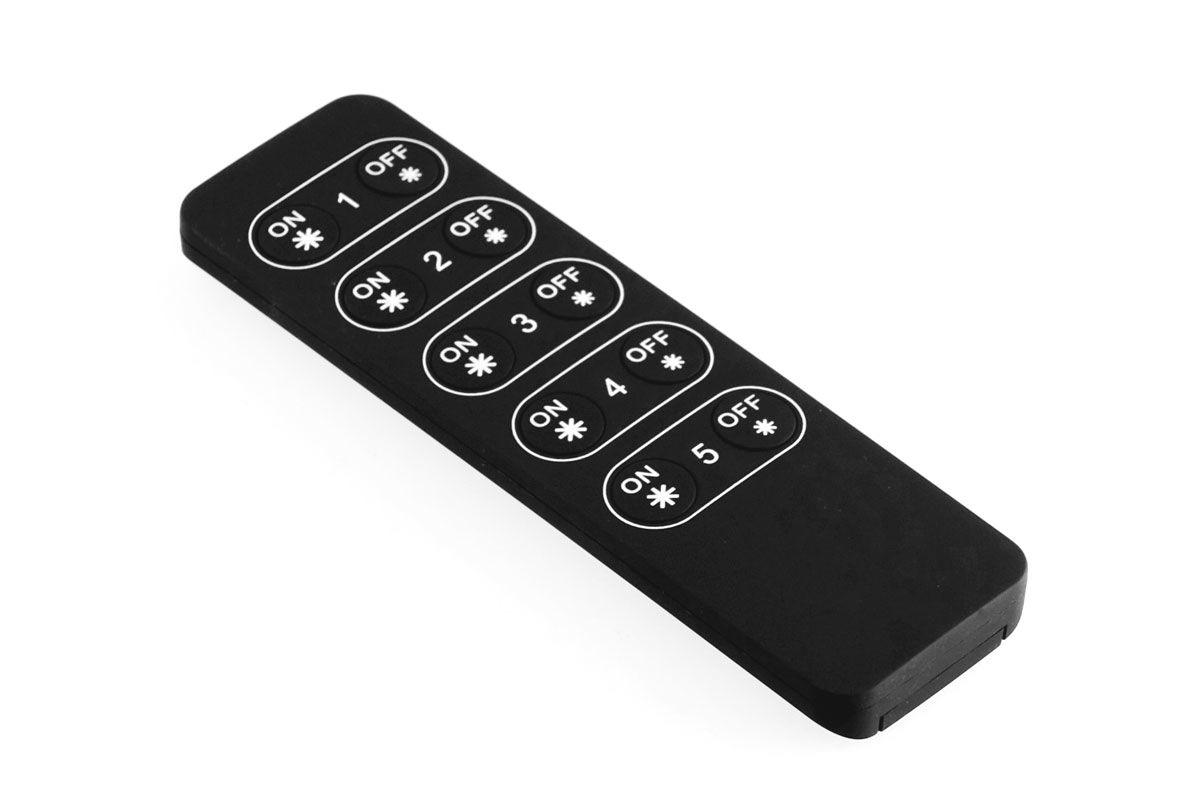

Brightness control up to 5 light zones operateable (5 receivers) 1 Channel All remote controls can operate all drivers / receivers of the LK55 series and, if required, also the WiFi driver LK35. It is also possible for several remote controls to operate one driver. E.g. a hand-held remote control and an additional wireless wall panel or several wireless wall panels at different positions in the room. If required, up to 8 remote controls can operate 1 driver. NOTICE:  The LK55 remote control for pure dimming should not be used in combination with CCT LED strips (adjustable color temperature) or RGBW LED strips, but only for pure white LED strips with fixed color temperature. Background: When dimming via you would lose all color settings here, because the LED drivers drive all outputs (RGBW or WW/KW) down or up identically. Instead, dim via the appropriate CCT or RGBW remote controls. Technical data: Item no. LK55FB-A3 Power supply 3V CR2025 batteries Dimensions (LxWxH) 134x40x11mm

For 1-channel receivers of the LK55 series 1 light zone operateable All remote controls can operate all drivers / receivers of the LK55 series and, if required, also the WiFi driver LK35. It is also possible for several remote controls to operate one driver. E.g. a hand-held remote control and an additional wireless wall panel or several wireless wall panels at different positions in the room. If required, up to 8 remote controls can operate 1 driver. NOTICE: The LK55 remote control for pure dimming should not be used in combination with CCT LED strips (adjustable color temperature) or RGBW LED strips, but only for pure white LED strips with fixed color temperature. Background: When dimming via you would lose all color settings here, because the LED drivers drive all outputs (RGBW or WW/KW) down or up identically. Instead, dim via the appropriate CCT or RGBW remote controls. Technical data: Item no. LK55Ts Power supply 3V DC, CR2025 Dimensions (LxWxH) 65x90x80mm
