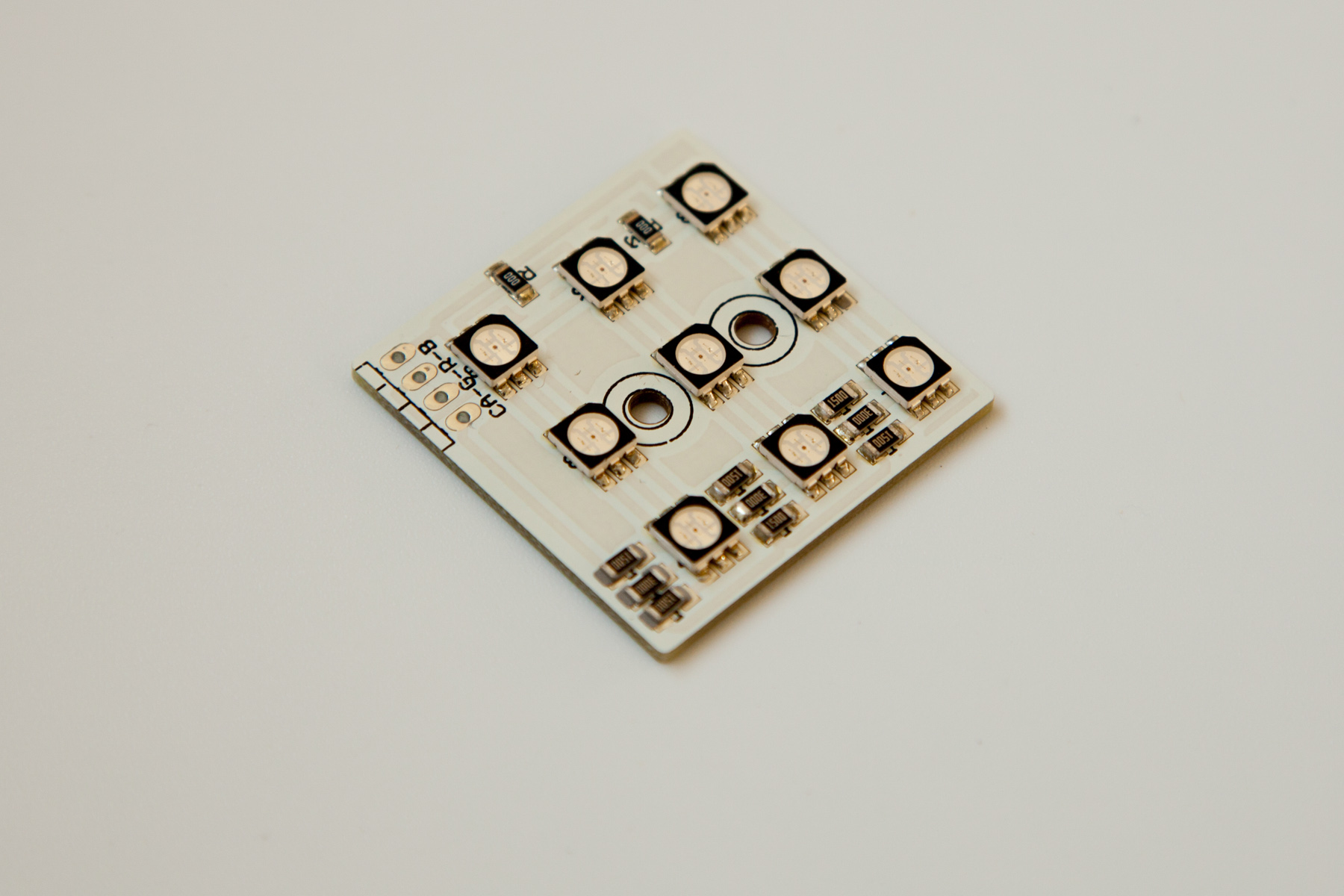

LED cluster 3x3 ready assembled RGB black

€5.30*

Available, delivery time 3-5 days

LED colour
Product number: LED208Brgb3
Available stock: 7

The cluster board is designed for 9 PLCC6 LEDs. The compact size of the board results in a high luminance, depending on the LEDs used. It is quite possible to achieve the performance of a HighPower-LED.

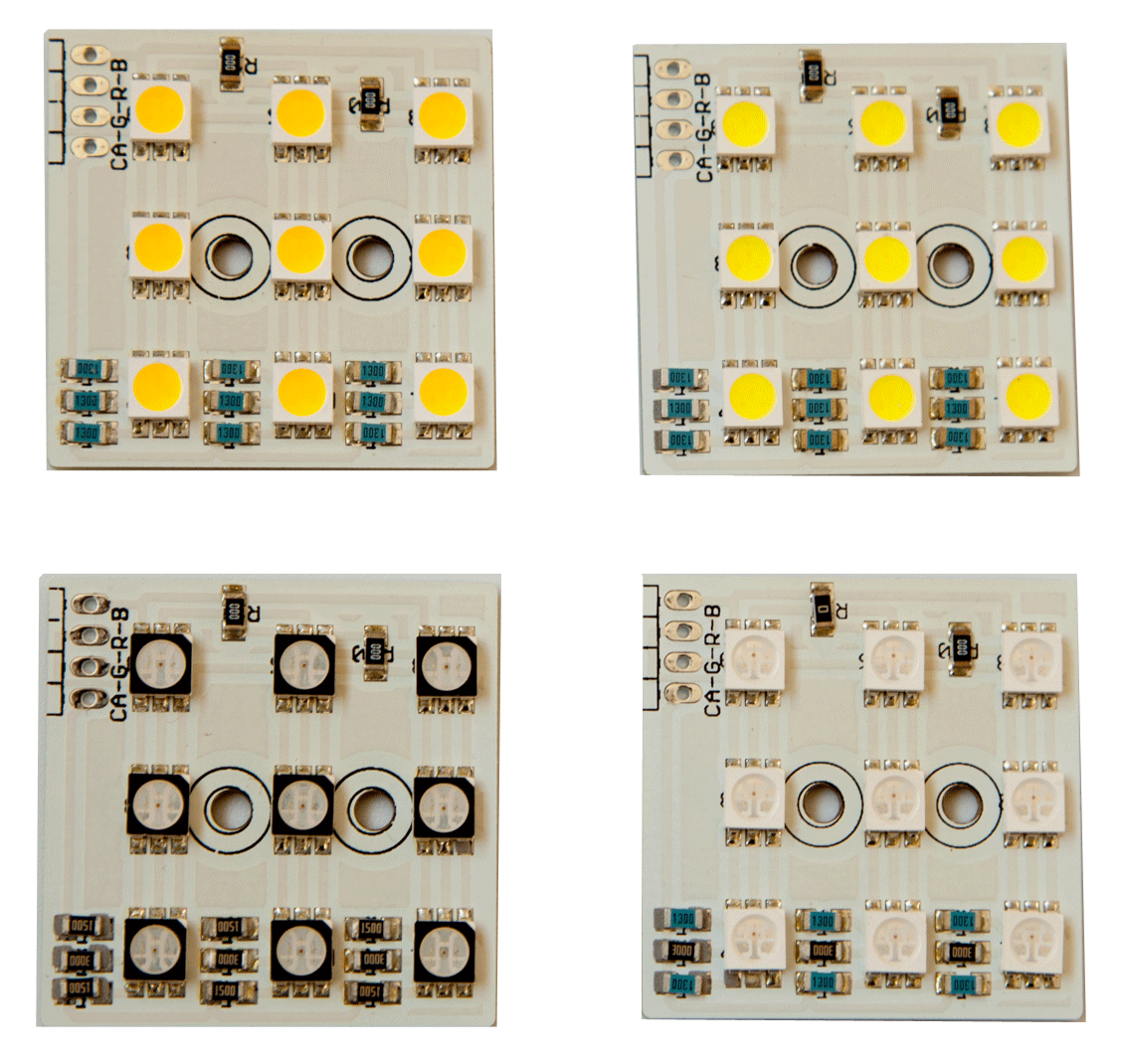

The board is completely equipped with LEDs and suitable series resistors. There are versions in RGB, cold white and warm white. Other PLCC6 LEDs can be equipped on request.



Scope of delivery:

1 board 3x3 LED cluster (assembled) RoHs compliant



Technical data:


Feature Parameter
Platine Material FR4 white
Dimensions         36x36 mm
LED type PLCC6, 3 each in row
total 3x3 LEDs
Voltage/current consumption 12V / ca. 180mA
