2m IPA profile for indirect lighting


Available, delivery time: 3-5 days

Product number: AL33bund

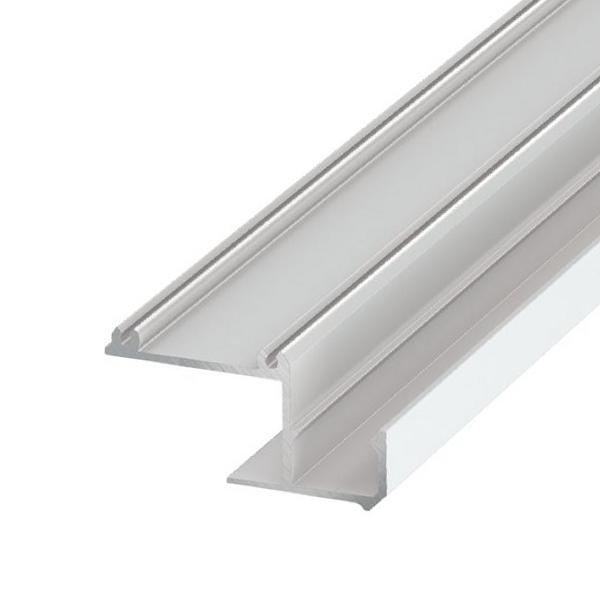

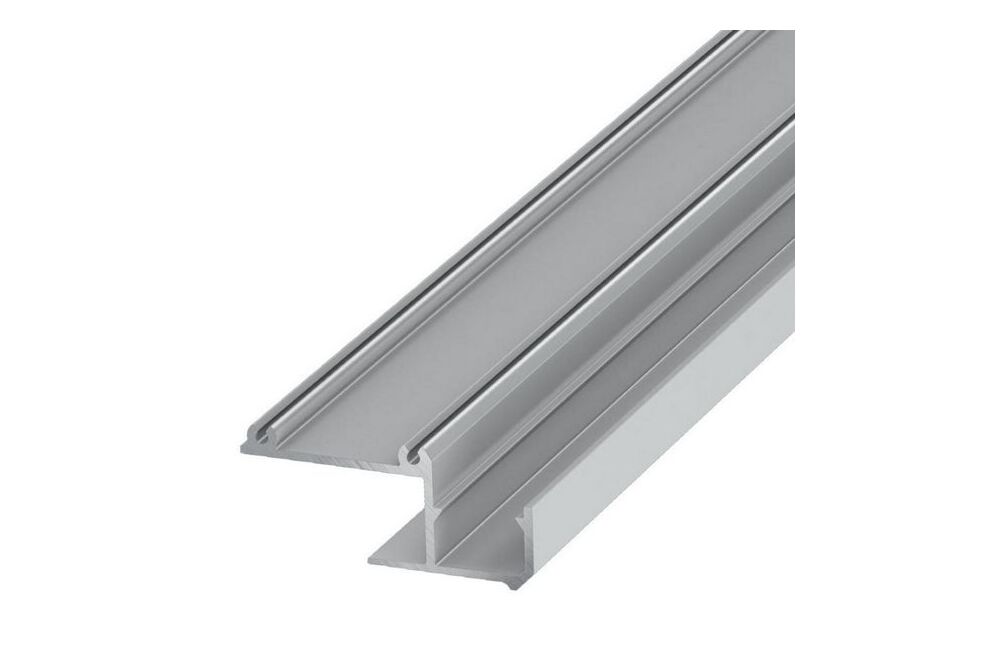

IPA aluminum profile especially for indirect LED lighting. Mounting e.g. on GK panels up to 12.5mm.

Aluminum profile IPA
Covers for 12mm profiles (like IPA, APA, H 30/60°)

IPA aluminum profile offers a very simple way to realize indirect lighting. IPA can be mounted directly on edges of plasterboard and other panels, thus forming a light cove and possibly also have space for power supplies and controllers. In the simplest case, a simple ceiling suspension with wooden slats and plasterboard mounted on them, onto which the IPA profiles are then plugged, is sufficient. The profile itself accommodates LED strips, which can be appropriately protected via transparent or milky opal covers.

Choose the number of profiles you need and a suitable cover.


Example of IPA assembly:

Technical data:

Width inside for LED strips: 12mm

Panel thickness: 12.5mm (16mm on request)



Aluprofil ipa_abmessungen

Properties "2m IPA profile for indirect lighting"
Aluprofil Typ: plaster profile
Strip width in mm: 12
Data according to manufacturer. Errors and changes reserved.
