SEDU board v3 without WLAN

€59.00*

Available, delivery time: 3-5 days

SEDUv3 variant
Product number: LED523nw
Available stock: 3

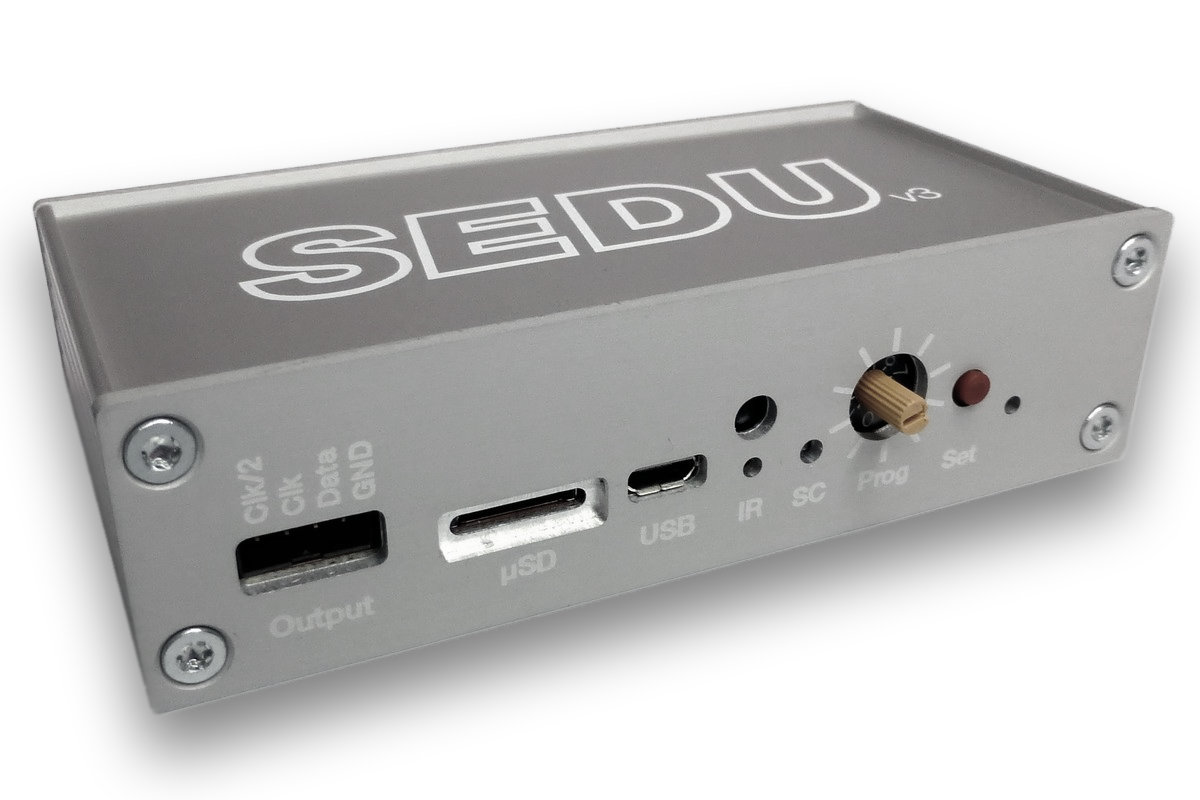

The SEDUv3 is a universal driver for digital LED pixels. It can be used to control an ambient light system as well as for an LED matrix.

In contrast to the SEDUv2 additional pixels like the WS2811/12 or MY9221 are supported. The firmware is still being extended to support even more pixel types. In addition, it is possible to choose between different input protocols within one firmware. Supported are:

  • miniDMX
  • tpm2
  • DMX (future)
  • tpm2.net / Artnet in connection with WLAN

Up to 3000 pixels WS2801 and 1024 pixels WS2811/12 are supported. With a µSD card created sequences can be played back offline. You can switch between the programs with a button (in the future also via IR remote control).



Scope of delivery:

1x SEDU board v3 according to version

1x connector data port



Technical data:

Parameter Value
Power supply:

5V DC via µUSB port,
max. current consumption approx. 300mA

Housing: Aluminum housing, screwed
Dimensions: 105 x 50 x 28 mm
Data sheet / Downloads  SEDU-Board Downloads

Recommended power supply

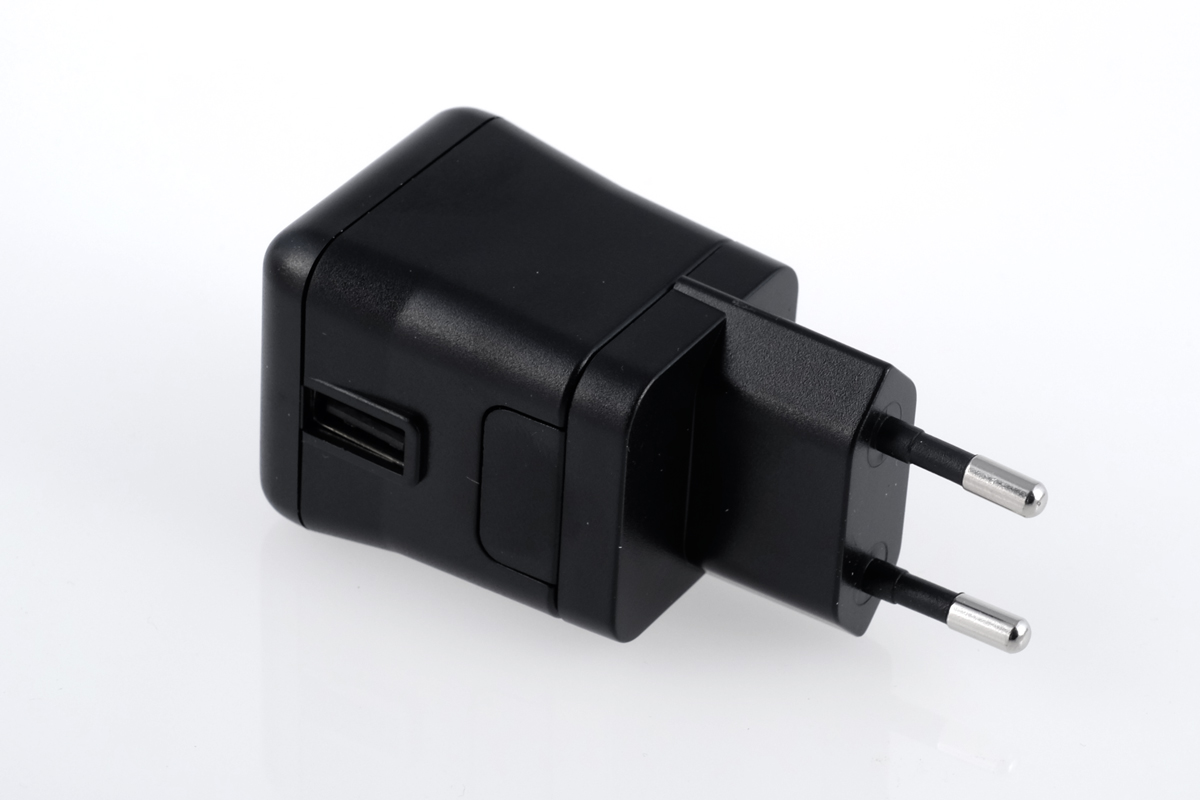

USB plug power supply 5V - 2A - 10 Watt
Plug-in power supply 5V/2A Output USB-A socket
Product number: LED1146

€12.00*

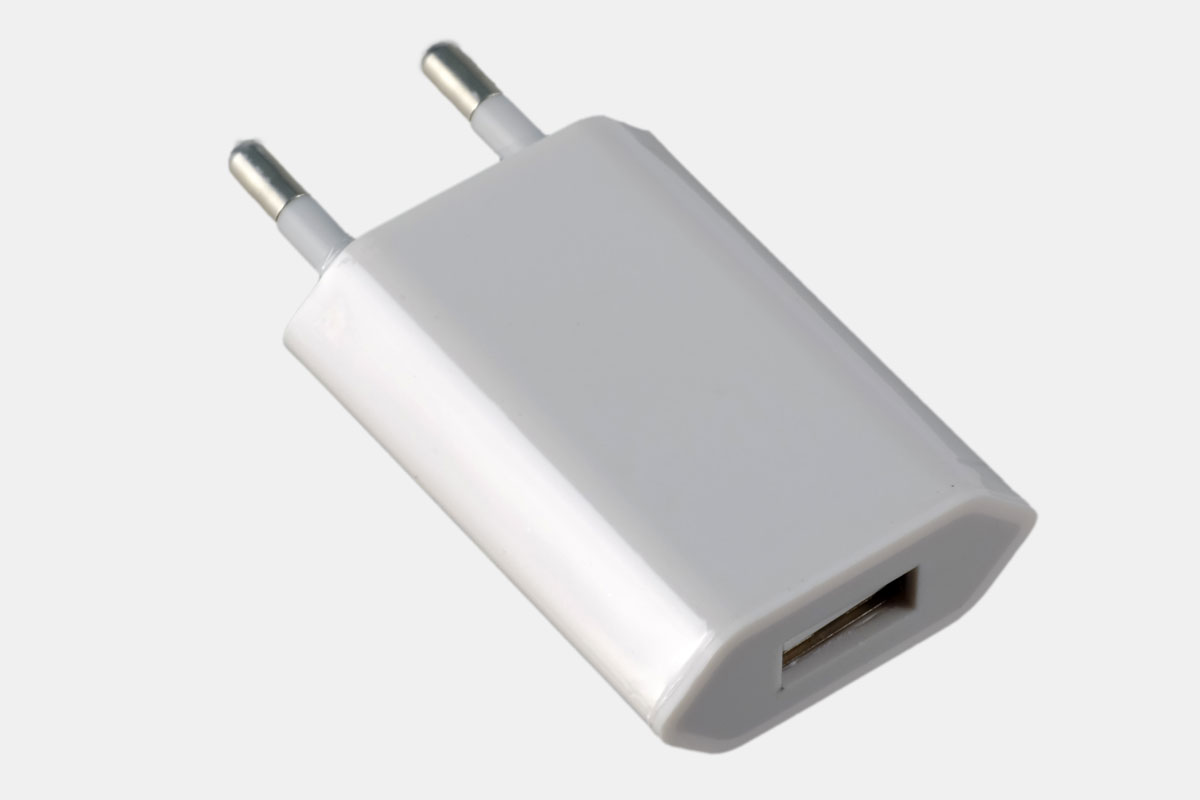

USB plug power supply 5V - 1A - 5 Watt
Plug-in power supply 5V/1A/5W Output USB-A socket  The item may differ from the picture.
Product number: LED1004-2

€7.90*

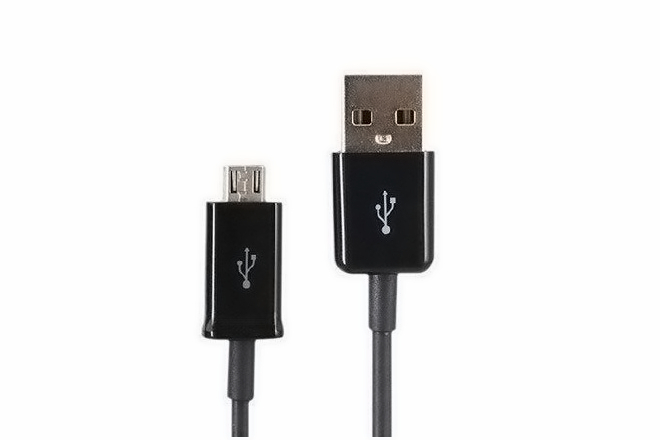

µUSB cable 1m
This is a micro USB cable for connecting the SEDU to a PC or similar. The SEDU is supplied with voltage via this connection. For standalone operation, a 5V / 1A power supply is therefore still required.
Product number: LED523kabel

€2.90*

Suitable remote control

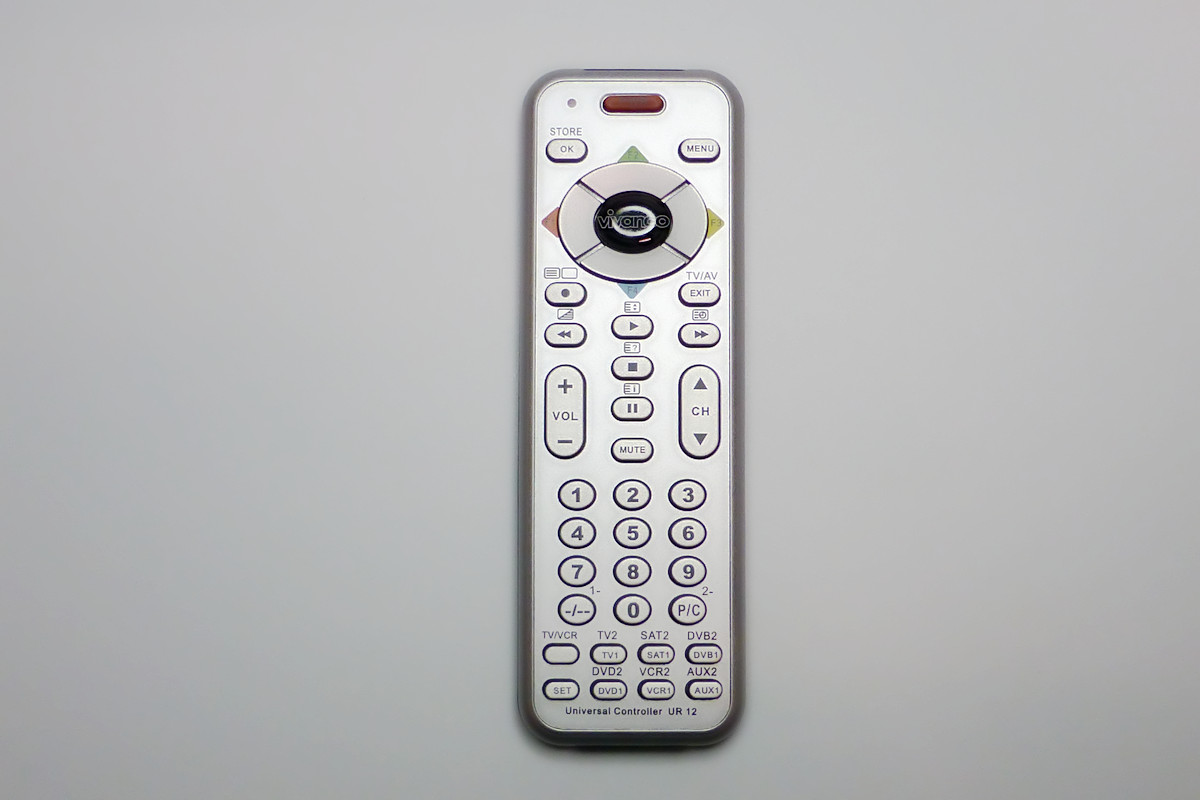

Universal-Fernbedienung
Universal-Fernbedienung vivanco UR-12   8 in 1 Universal-Fernbedinung ideale Ergänzung zum RGB-Controller-Bausatz
Product number: FB01

€13.90*
Universal-Fernbedienung
Universal-Fernbedienung vivanco UR-12   8 in 1 Universal-Fernbedinung ideale Ergänzung zum RGB-Controller-Bausatz
Product number: FB02

€5.90*

Recommended accessories

Stecker SEDUv3 Federkraft
Daten-Anschluss-Stecker für SEDU-Board v3 von Phoenix Contact, PTSM 0,5/4-P-2,5, AWG 20-24, schwarz, 4-polig, max. 6A, 100V, Federkraft-Anschluss
Product number: LED524f

€1.50*
Stecker SEDUv3 Schneidklemme
Daten-Anschluss-Stecker für SEDU-Board v3 von Phoenix Contact, PTPM 0,5/4, AWG 22-26, schwarz, 4-polig, max. 4A, 100V, Schneidklemmen-Anschluss Wichtig: zur Verwendung dieses Steckers muss die u.U. Aussparung im Gehäusedeckel erweitert werden!
Product number: LED524s

€1.70*
