RGB pixel chain WS2811 | 4,5m long | 30 pixel with 30mm diameter
Product number:
LK45-2
Available stock:
18

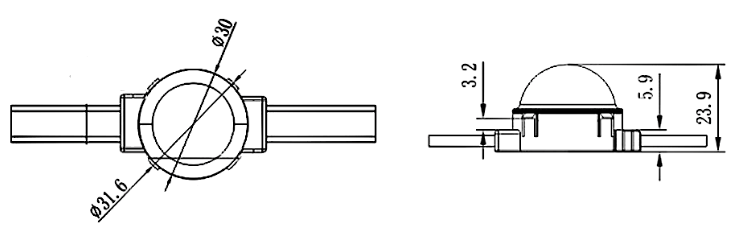

The LED chain consists of 30 RGB pixels in a black PVC housing with a white-opal hemisphere. The round 30mm pixels each have 3 RGB LEDs integrated with a WS2811 pixel IC and are operated at 12V. They can be controlled with all standard pixel controllers. The pixels are connected with a black ribbon cable (15cm pixel spacing each) in a chain of 30 pixels. Each chain must be supplied with voltage.
Scope of delivery:
1x LED pixel chain with 30 pixels with RGB LED and 30mm diameter.
Technical data:
Manufacturer
LED-Studien GmbH
Mühlenweg 15
04451 Panitzsch
info@led-studien.de
Skip product gallery
Recommended driver
Artnet LED Pixel driver for up to 5,440 pixels
€400.00*
The drivers for digital LED strips are specially designed to control as many RGB pixels as possible individually.
With the LK63, up to 5.440 pixels are possible, divided into 16 channels with 340 RGB pixels each. This corresponds to a total of 32 DMX universes, which are transmitted via LAN/ArtNet.
The 16 pixel outputs can be loaded with max. 3 amps per channel. For larger installations, the pixels can and should be powered separately. The controller then supplies only the data signal (DATA). Pixels with and without CLOCK signal (CLK) can be controlled. Pixel types with CLK are e.g. WS2801 or APA102. The controller can be controlled via ArtNet and offers 2 additional DMX-OUT ports with 512 channels each. For configuration, the controller has an integrated web interface as an alternative to direct input on the display. The configuration options are very extensive: selection of pixel type and color sequence (RGB, RGB, GRB etc.) flexible addressing (DMX-Universe and start address individually for each of the 4 outputs) number of pixels to control per channel (0-340 pixels - e.g. to save DMX universes) number of zero pixels to skip first unused pixels in an installation Zig-zag or backward addressing of pixels for matrix applications
Brightness limitation per channel
In addition, the controller offers a test mode to test the installation with various effects (Chase, Dots, Rainbow, ...) and static programs (all pixels red, all pixels white, ...) even without an applied ArtNet signal. The speed of the effects can be varied.
Technical data:
Item no.
LK63
Output spots
16 x 3 Ampere (Multi SPI)
Controllable pixels
16 x 340 = 5,440
Controllable ICs
WS2801, 2803, 2811, 2812, 2813, 2815
SK6812 (RGBW)
TM1803, 1804, 1809, 1812, 1814 (RGBW)
UCS1903, 1909, 1912, 2903, 2909, 2912, 5603UCS6909, 6912 9812, 2904 (RGBW), 8904 (RGBW)LPD6803, 1101, 8803, 8806
TLS3001, 3002
APA102
P9813
Voltage input
5 - 24VDC
DMX outputs
2 x 512 Channels
Dimensions
L258×W145×H41(mm)
Weight
1,100g
Product number:
LK63
Artnet LED Pixel-Controller for up to 2.720 Pixel
€290.00*
The drivers for digital LED strips are specially designed to control as many RGB pixels as possible individually.With the LK99, up to 2,720 pixels are possible, divided into 4 channels with 680 RGB pixels each. This corresponds to a total of 16 DMX universes, which are transmitted via LAN/ArtNet. The 4 pixel outputs can be loaded with max. 7 amps per channel. For larger installations, the pixels can and should be powered separately. The controller then supplies only the data signal (DATA). Pixels with and without CLOCK signal (CLK) can be controlled. Pixel types with CLK are e.g. WS2801 or APA102. The controller can be controlled via ArtNet and offers an additional DMX-OUT port with 512 channels on the output side. For configuration, the controller has an integrated web interface as an alternative to direct input on the display. The configuration options are very extensive: selection of pixel type and color sequence (RGB, RGB, GRB etc.) flexible addressing (DMX-Universe and start address individually for each of the 4 outputs) number of pixels to control per channel (0-680 pixels - e.g. to save DMX universes) number of zero pixels to skip first unused pixels in an installation Zig-zag or backward addressing of pixels for matrix applications Brightness limitation per channel In addition, the controller offers a test mode to test the installation with various effects (Chase, Dots, Rainbow, ...) and static programs (all pixels red, all pixels white, ...) even without an applied ArtNet signal. The speed of the effects can be varied.
Technical data:
Item no.
LK99
Output spots
4 x 7 Ampere (Multi SPI)
Controllable pixels
4 x 680 = 2,720
Controllable ICs
WS2801, 2803, 2811, 2812, 2813, 2815
SK6812 (RGBW)
TM1803, 1804, 1809, 1812, 1814 (RGBW)
UCS1903, 1909, 1912, 2903, 2909, 2912, 5603UCS6909, 6912 9812, 2904 (RGBW), 8904 (RGBW)LPD6803, 1101, 8803, 8806
TLS3001, 3002
APA102
P9813
Voltage input
5 - 24VDC
DMX outputs
1 x 512 Channels
Dimensions
L166×W110×H31(mm)
Weight
510g
Product number:
LK99
SP108E LED Pixel Controller with App control
€29.00*
The SP108 can drive up to 2,048 pixels and many different pixel types: WS2801, WS2811, WS2812, SK6812, APA102 and many more.
The suitable app "LED Shop" is available for free for IOS and Android and offers 180 different chase effects as well as precisely adjustable single colors. Speed and brightness can be changed at any time. A handy feature is that you can choose your favorites from the 180 effects and then quickly select them.
Setting up the driver is quite intuitive and done in a few minutes. The driver works in the 2.4 GHz WLAN and can be accessed directly via the smartphone as well as integrated into the home WLAN.
Screenshots of the App:
The scope of delivery includes:
1 x LED driver SP108E
1 x 3-pin connection cable for LED strips
1 x mini screwdriver
Supported LED types:
WS2801, WS2811, WS2812, WS2815
SK6812, SK6812_RGBW, SK9822
APA102, APA105
TM1804, TM1814, TM1913, TM1914, TX1812, TX1813
LPD6803, LPD8806
P9813, P943S, P9411, P9412, P9413, P9414
GS8206, GS8208
SM16703, UCS1903, INK1003, DMX512
FAQ:
Does the driver require an existing WLAN?
No, the driver can also be controlled directly with the smartphone (AP mode) and offers its own WLAN access point ("SP108E_xxx") for this purpose. If a WLAN is available, the driver can alternatively be integrated into it (STA mode), so that the WLAN does not always have to be changed to operate the driver.
Can multiple drivers be used simultaneously in the app?
Yes, the app can manage multiple drivers at the same time. You can switch between the drivers and change the settings for each. In addition, the individual drivers can be switched on and off directly. However, there is no direct synchronization and each driver must be set accordingly for itself.
Does the app have to be active for the animations to run?
No. The app is only needed for the setup. You can close the app afterwards and also turn off the smartphone, for example. The SP108 will continue to play effects.
Does the driver keep its settings when it no longer receives power?
Yes, the driver can simply be disconnected from the mains. When power is applied again, it will start with the previously set animation. All settings will be kept.
How can the white LEDs be used, e.g. with a SK6812_RGBW?
The app has a separate control for white LEDs (e.g. for SK6812_RGBW pixel strips). This can be used to set the proportion of white LEDs and then, in the case of effects, the white LEDs are taken into account accordingly, so that the colors are generally desaturated. In the effects section of the app, the SOLID setting can then also be used to activate a permanently white, high-quality light, e.g. for lighting tasks, if required.
Can the SP108 also control LED matrices?
A number of pixels and a number of segments can be set in the setup. For example, for an 8 x 8 matrix then 8 pixels and 8 segments. This is taken into account in the effects, but in most matrices the pixels are connected in a snake shape as a long line and this is unfortunately not taken into account by the SP108. Therefore the effects are not displayed as desired on the matrix, but every 2nd row of the matrix shows the effect quasi upside down. We hope for a technical improvement here soon.
Technical data:
Input: 5-24V DC, GND
Output: VCC, GND, Data, Clock
current consumption: approx. 90mA
up to 2.048 pixels, max. 300 pixel per line
ambient temperature: -20°C - +60°C
dimensions: 80x41x20mm
Weight: 40g
Product number:
LK126
