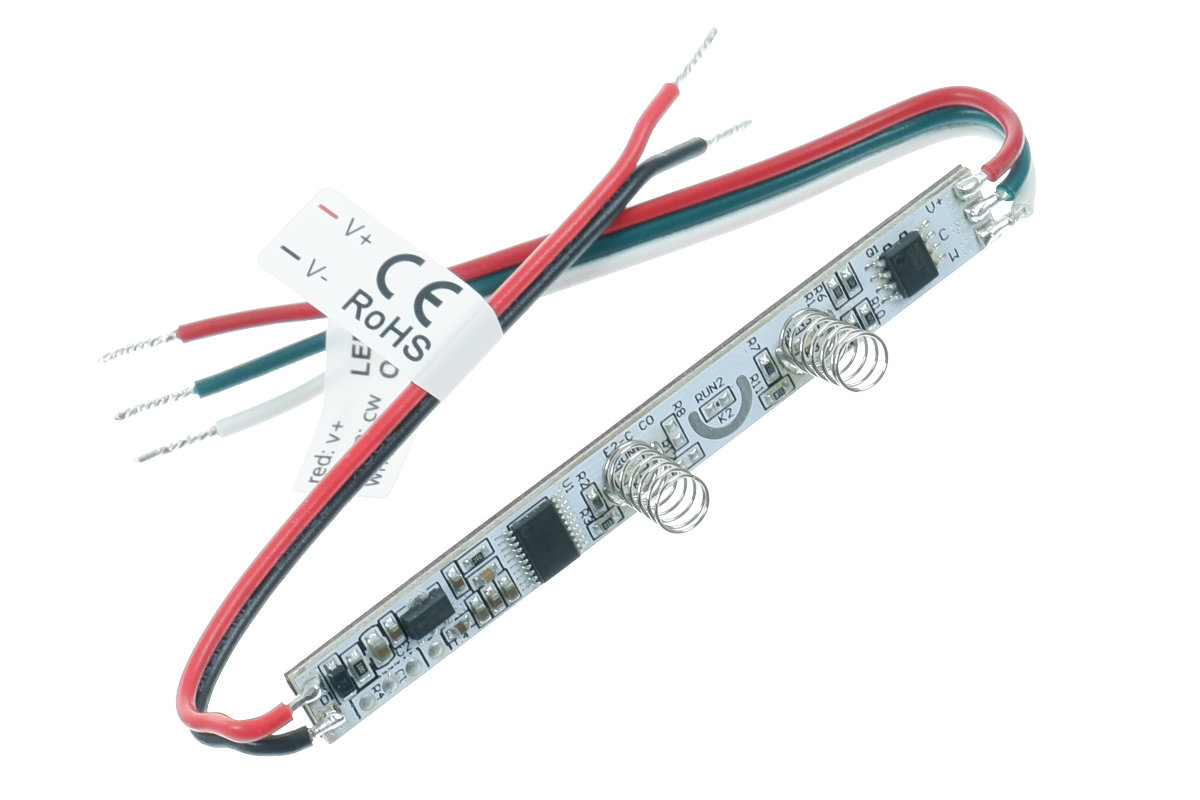

Mini CCT LED controller for aluminium profiles - Touch | 5-24V | 2x2A
This mini CCT controller is only 8 mm wide and can be installed directly in an aluminum profile, for example. Where the controller's springs touch the profile cover, the light can be switched on, dimmed, and the color temperature changed by touching the cover with your finger.
With spring 1, a short touch turns the LED light on and off. A long touch dims the LED light up and down - always alternating. With spring 2, the color temperature is changed in 5 steps - assuming the corresponding CCT LED strip is used.
The springs are sensitive even through the cover (max. 2 mm). A small LED inside the spring clearly marks the corresponding touch point, even with opal covers.
The Mini-CCT controller remembers the last setting even in the event of a power failure, so you can combine it with a normal on/off switch. However, it remains dark after the power is restored and must be reactivated by briefly pressing it so that the LEDs light up as before.
Suitable for profiles with an internal height (distance to cover) of min. 5 - max. 10 mm.
Technical specifications
Voltage range: 5 - 24VDC
Current: max. 2 x 2A
PWM frequency: 2,000Hz
Operating temperature: -10°C - +45°C
Dimensions: L77 x W8 x H10
