Mini Dimmer
LED dimmers and controllers for small LED installations. Some models can be installed directly with in the aluminum profile and thus allow the control directly on the profile.
Mini LED dimmer for aluminium profiles - Wipe sensor | 12-24V | 1x3A
€14.50*
This mini LED dimmer is only 10mm wide and can be installed directly in an aluminium profile, for example. It works with a wipe sensor so that the light can be switched and even dimmed with a simple hand movement at a short distance (max. 4cm) from the sensor.If you wipe your hand past the sensor, the light is switched on. If you hold your hand in front of the sensor, the light is dimmed up and down. Always in alternation. No profile cover must be installed above the wipe sensor. If necessary, drill a sufficiently large hole in the cover so that the wipe sensor can work properly. Attention! The mini LED dimmer with wipe sensor does NOT remember the last dim setting in case of power loss. Dimensions: approx. L45 x W10 x H8mm
Product number:
LK138w
Mini LED dimmer inline 12-24V | 1x4A
€7.50*
This mini LED dimmer can be easily connected between power supply and LED strip and allows convenient dimming via a large rotary potentiometer. In the final position the LEDs are completely switched off.
Dimensions: approx. 70 x 35 x 35mm (plus cable)Voltage: 12 - 24VDC
PWM frequency: approx. 1,200 Hz
Scope of delivery:
1x Mini dimmer LK82
Product number:
LK82
Mini LED dimmer for aluminium profiles - Touch | 12-24V | 1x3A
€9.90*
This mini LED dimmer is only 8 mm wide and can be installed directly in an aluminum profile, for example. Where the dimmer's spring touches the profile cover, the light can be switched on and dimmed by touching the cover with your finger. A short touch switches the LED light on and off. A long touch dims the LED light up and down – always alternating.The spring reacts sensitively even through the cover (max. 2 mm). A small LED inside the spring clearly marks the corresponding touch point, even with opal covers.The mini LED dimmer remembers the last dim setting even in the event of a power failure and can therefore be conveniently combined with normal light switches and similar devices.
Dimensions: approx. L50 x W8 x H10mmSuitable for profiles with an internal height (distance to cover) of min. 5 - max. 10 mm.Video about the LK138t Mini LED dimmer
Technical specificationsVoltage range: 12 - 24VDCCurrent: max. 3APWM frequency: 2,000Hz (125Hz, 500Hz, 8,000Hz selectable)Operating temperature: -30°C - +55°CDimensions: L50 x W8 x H10
Product number:
LK138t2

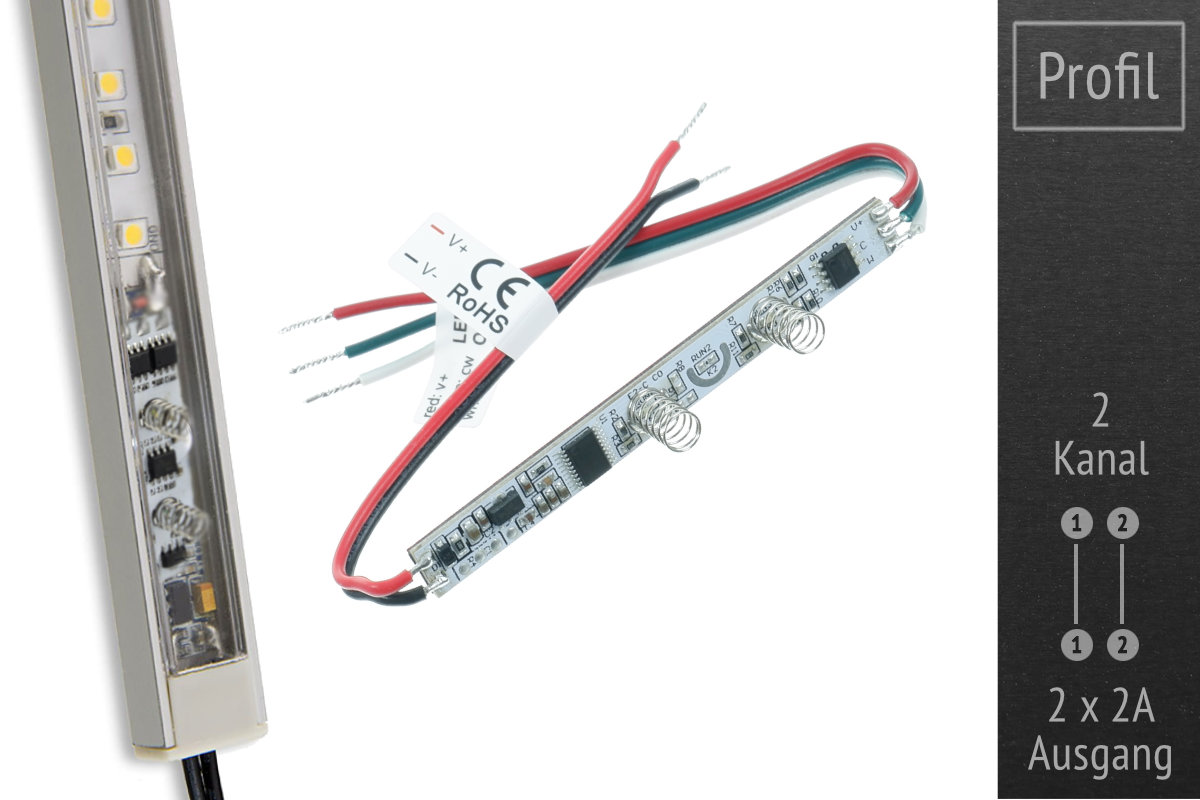

Mini CCT LED controller for aluminium profiles - Touch | 5-24V | 2x2A
€12.00*
This mini CCT controller is only 8 mm wide and can be installed directly in an aluminum profile, for example. Where the controller's springs touch the profile cover, the light can be switched on, dimmed, and the color temperature changed by touching the cover with your finger.With spring 1, a short touch turns the LED light on and off. A long touch dims the LED light up and down - always alternating. With spring 2, the color temperature is changed in 5 steps - assuming the corresponding CCT LED strip is used.The springs are sensitive even through the cover (max. 2 mm). A small LED inside the spring clearly marks the corresponding touch point, even with opal covers.The Mini-CCT controller remembers the last setting even in the event of a power failure, so you can combine it with a normal on/off switch. However, it remains dark after the power is restored and must be reactivated by briefly pressing it so that the LEDs light up as before.
Suitable for profiles with an internal height (distance to cover) of min. 5 - max. 10 mm.
Technical specificationsVoltage range: 5 - 24VDCCurrent: max. 2 x 2APWM frequency: 2,000Hz Operating temperature: -10°C - +45°CDimensions: L77 x W8 x H10
Product number:
LK138tc2
