Matter over WiFi universal LED controller | 5 x 4A
€69.00
Matter over Wi-Fi Universal LED Controller, e.g., for control via Apple Home, Amazon Alexa, Google Assistant, and many other smart home systems. Matter is the new global standard in lighting control and promises compatibility across many manufacturers and system providers.
The LK156 is a universal controller that can be used for a wide variety of LED applications. Depending on the settings, it functions as:
- Matter over WiFi LED dimmer for white and single-color LEDs
- Matter over WiFi CCT controller for LED lighting with adjustable color temperature
- Matter over WiFi RGB controller for color effects
- Matter over WiFi RGBW controller for solutions with color effects and extra white
- Matter over WiFi RGB+CCT controller

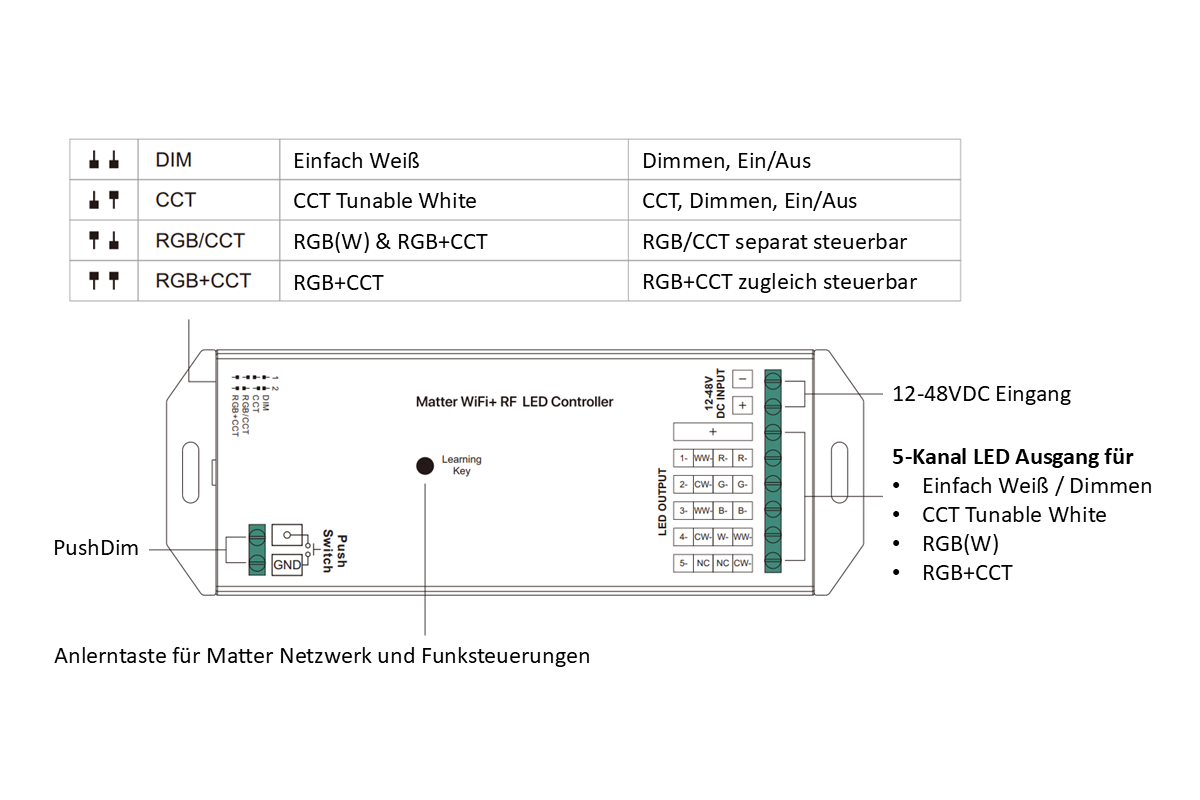

The desired function can be set at the beginning using a DIP switch.
The LK156 controller uses the Matter over Wi-Fi standard. This makes it compatible with established voice control and smart home systems, such as Apple Home, Amazon Alexa, and Google Assistant. It can also be integrated into popular complex systems such as Home Assistant, iO-Broker, and others.
The controller can be used to connect LED strips operating at 12V, 24V, or even 48V. It can also power LED spotlights, LED panels, and other components that use constant voltage and standard PWM control.
RGB+CCT Modes
- Exclusive Mode: RGB and CCT are always controlled separately and never light up at the same time
- Independent Mode: RGB and CCT are controlled separately but can also light up at the same time
- Modes: Dim | CCT | RGBW | RGB+CCT
- Voltage: 12V–48V
- DC Power: Power supply via external switching power supply (not included)
- Outputs: 12–24 VDC: 5 x 4 A | 48 V: 5 x 3 A
- Connections: Input (V+ | Ground) Output (5 channels | V+)
- IP Rating: IP 20
- Dimensions (L x W x H): 138 x 49 x 23 mm
