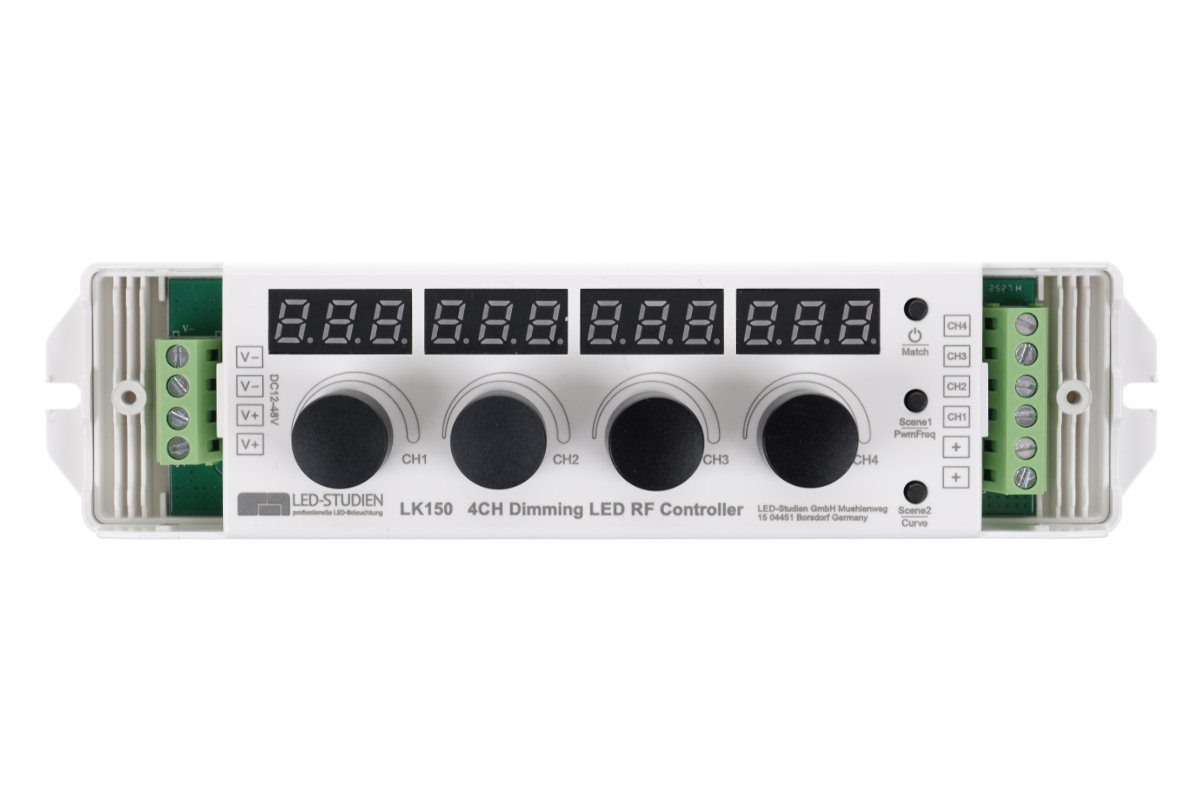

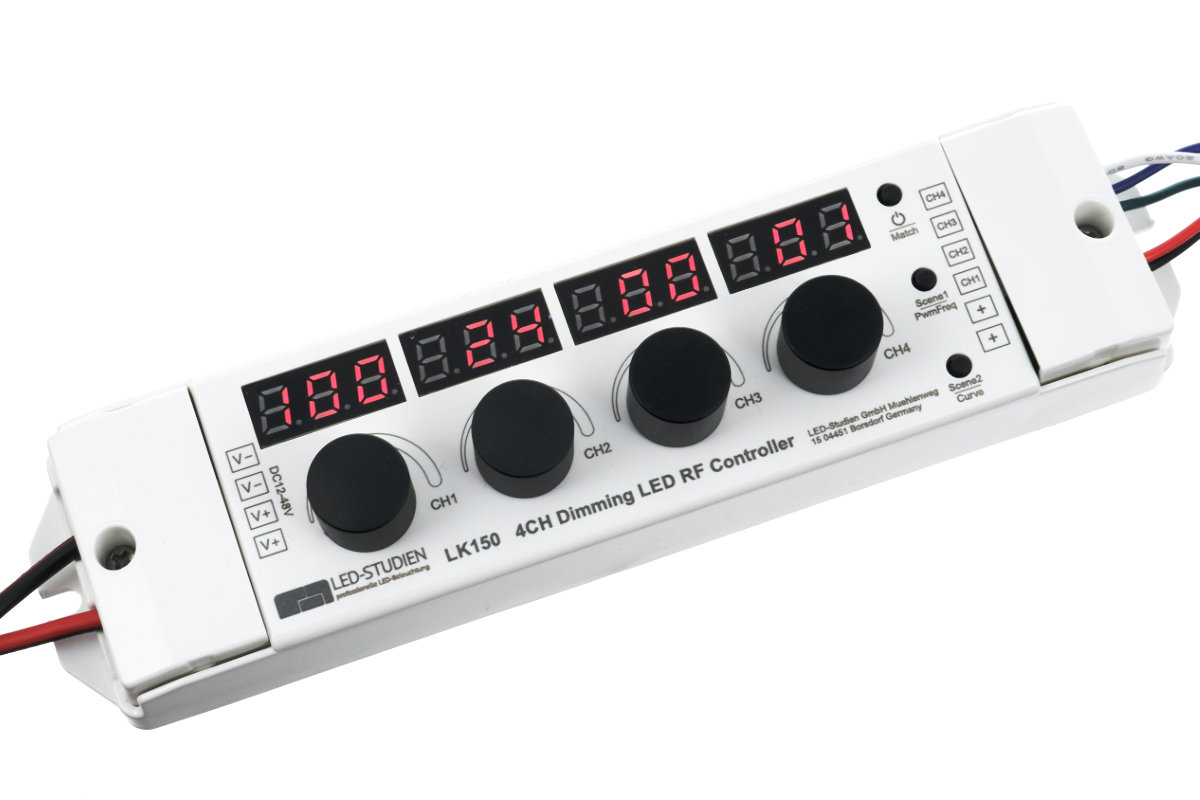

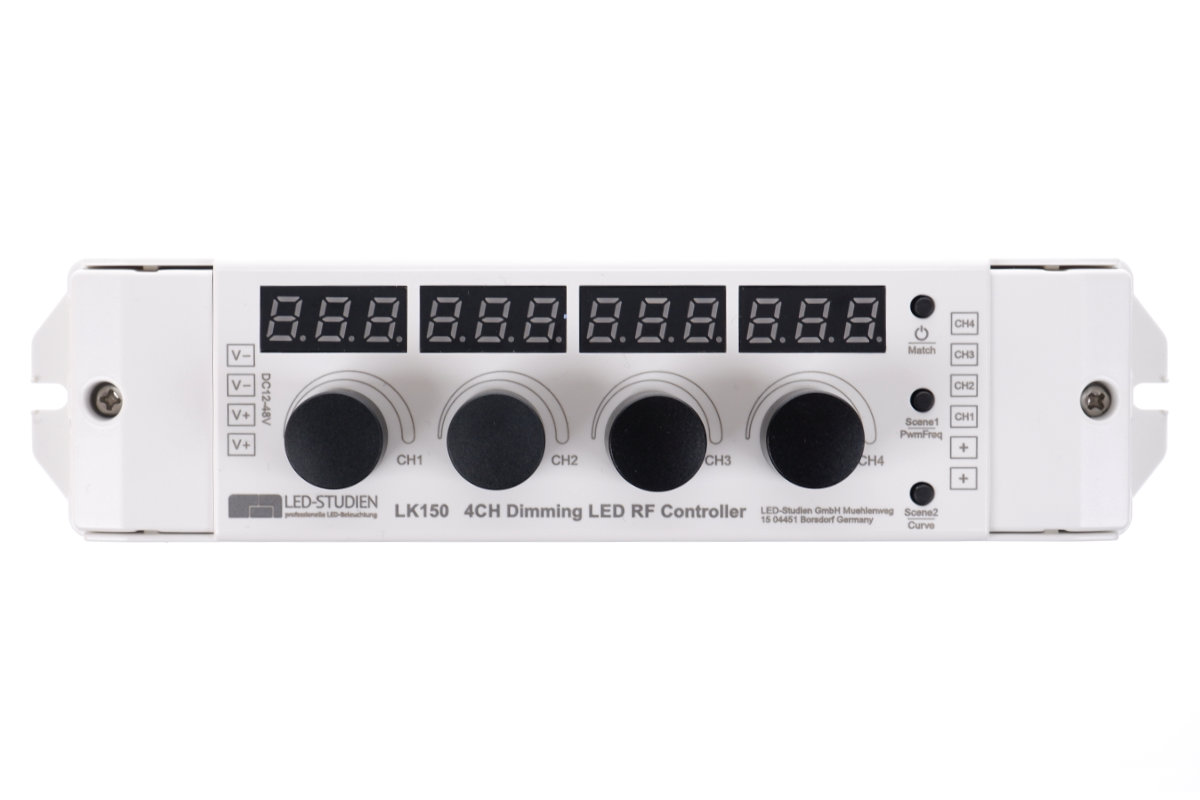

Inline dimmer 12-48V | 4x4A

48V enable particularly long LED lines20m with feed on one side40m with feed on both sides Brightness: 1000 lm/m Color rendering: High CRI>90 Power: 8 Watt/mWidth: 10mmDivisible every 1.67cm 48V LED stripsLED strips with a 48V design enable particularly long LED lines as the typical voltage and brightness drop is significantly reduced. Lengths of up to 20m are possible with a single-sided voltage supply. If fed in on both sides (or in the middle), a total length of 40m is even possible.Another advantage of this LED strip is its very narrow pitch of just 1.67 cm. This means that the LED line can be adapted to almost any situation. With 120 LEDs/m, the LED density is sufficiently high so that many aluminum profiles (from 10 mm installation depth) can be used for a perfectly homogeneous light line without spot formation.With CRI>90, the LED strip also achieves excellent color quality, even for demanding requirements.48V LED strips are the perfect solution for all installations where parallel cable routing is difficult or impossible. Typical examples areLong LED lines in corridors, stairwells, etc.Façade lighting (observe IP protection)Indirect lighting with very filigree light coves / stucco moldings Available variants By the meter IP20, connection cable optional All versions have a 3M adhesive tape on the back for mounting, can be split at any point and are available in various color temperatures (e.g. 3,000K warm white). Notes on accessories: A 48V power supply unit with at least 160 watts is required to operate 20m LED strips. 20m x 8W/m = 160 watts. A controller with at least 3.4 amps is required to control the brightness of the 20m. 160W / 48V = 3.4 amps. Frequently asked questions:   Is it safe to install 48V LED strips? Yes. Just like 24V or 12V, 48V belongs to the low voltage range and can be installed by anyone.   Are there any disadvantages of 48V LED strips compared to the familiar 24V LED strips? There is currently still a very limited selection of LED strips and LED controllers in the 48V range. This means that you have to make do with a few options for control.   Are 48V LED strips particularly efficient and generate less heat than 24V LED strips, for example? No. The efficiency and heat development are comparable. We therefore also recommend aluminum profiles for heat dissipation of the LEDs for 48V LED strips.    Further answers to frequently asked questions about LED strips can be found in our FAQ.

Switching power supply Meanwell HLG-60-48, 24 Volt, 1.3 Ampere, 60W Overload protection by current limitation, auto recovery protected against short circuit, overload, overvoltage built-in PFC circuit for indoor and outdoor use (IP65) adjustable output voltage adjustable current limitation Technical data:  Model HLG-60-48  Voltage 48V  Maximum power 60W  Current 1.3A  Adjustable voltage range 44 ~ 53V  Overcurrent protection 95...108%  Inrush current, max. 55A  Voltage input 90...264V AC (47...63Hz), 127...370V DC  Power factor 0,95  Working temperature -40...+80°C  Dimensions 171x61.5x36.8mm (LxWxH)  Weight 730g

Switching power supply Meanwell HLG-120-48, 48 Volt, 2.5 Ampere, 120W Overload protection by current limitation, auto recovery protected against short circuit, overload, overvoltage built-in PFC circuit for indoor and outdoor use (IP65) adjustable output voltage adjustable current limitation Technical data:  Model HLG-120-48  Voltage 48V  Maximum power 120W  Current 2.5A  Adjustable voltage range 43 - 53V  Overcurrent protection 95...108%  Inrush current, max. 65A  Voltage input 90...264V AC (47...63Hz), 127...370V DC  Power factor 0,95  Working temperature -40...+70°C  Dimensions 2220x68x38.8mm (LxWxH)  Weight 1,120g

Switching power supply Meanwell HLG-240-48, 48 Volt, 5 Ampere, 240W overload protection by current limiting, auto recovery protected against short circuit, overload, overvoltage built-in PFC circuit for indoor and outdoor use (IP65) adjustable output voltage adjustable current limitation Note on the connection of LED drivers The HLG-240-12 offers a lot of power and therefore a high current of up to 12.5 amps. If possible, use both voltage inputs on all drivers with dual voltage inputs (++--). All larger drivers usually have dual voltage inputs. It is best to order two 3-way WAGO distributors so that you can split the +/- output cables of the HLG-150 into 2 cables each, which you then run in parallel to the driver inputs. Alternatively, you can use a driver Y-connection cable in combination with luster terminals. Technical data:  Model HLG-240-48  Voltage 48V  Maximum power 240W  Current 5A  Adjustable voltage range 45 - 51V  Voltage input 230VAC  Overcurrent protection 95...108%  Inrush current, max. 75A  Voltage input 90...264V AC (47...63Hz), 127...370V DC  Power factor 0,95  Working temperature -40...+70°C  Dimensions 244.2x68x38.8mm (LxWxH)  Weight 1,300g

Switching power supply Meanwell HLG-320-48, 48 Volt, 6.7 Ampere, 320W overload protection by current limitation, auto recovery protected against short circuit, overload, overvoltage built-in PFC circuit for indoor and outdoor use (IP65) adjustable output voltage adjustable current limitation Technical data:  Model HLG-320-48  Voltage 48V  Maximum power 320W  Current 6.7A  Adjustable voltage range 43 - 52V  Overcurrent protection 95...108%  Inrush current, max. 75A  Voltage input 90...264V AC (47...63Hz), 127...370V DC  Power factor 0,94  Working temperature -40...+70°C  Dimensions 252x90x43.8mm (LxWxH)  Weight 1,880g

Switching power supply Meanwell HLG-480H-48A, 48 Volt, 10 Ampere, 480W - without fan! overload protection by current limiting, auto recovery, protected against short circuit, overload, overvoltage built-in PFC circuit for indoor and outdoor use (IP65) adjustable output voltage adjustable current limitation ​Note for the connection of LED drivers If the driver has 2 parallel inputs (++--) please use both parallel voltage outputs of the power supply and connect them to the parallel inputs of the driver.   Technical data:  Model HLG-480-48  Voltage 48V  Maximum power 480W  Current 10A  Adjustable voltage range 41 - 50V  Overcurrent protection 95...108%  Inrush current, max. 35A  Voltage input 90...264V AC (47...63Hz), 127...370V DC  Power factor 0,97  Working temperature -40...+90°C  Dimensions 262x125x43.8mm (LxWxH)  Weight 2,800g
