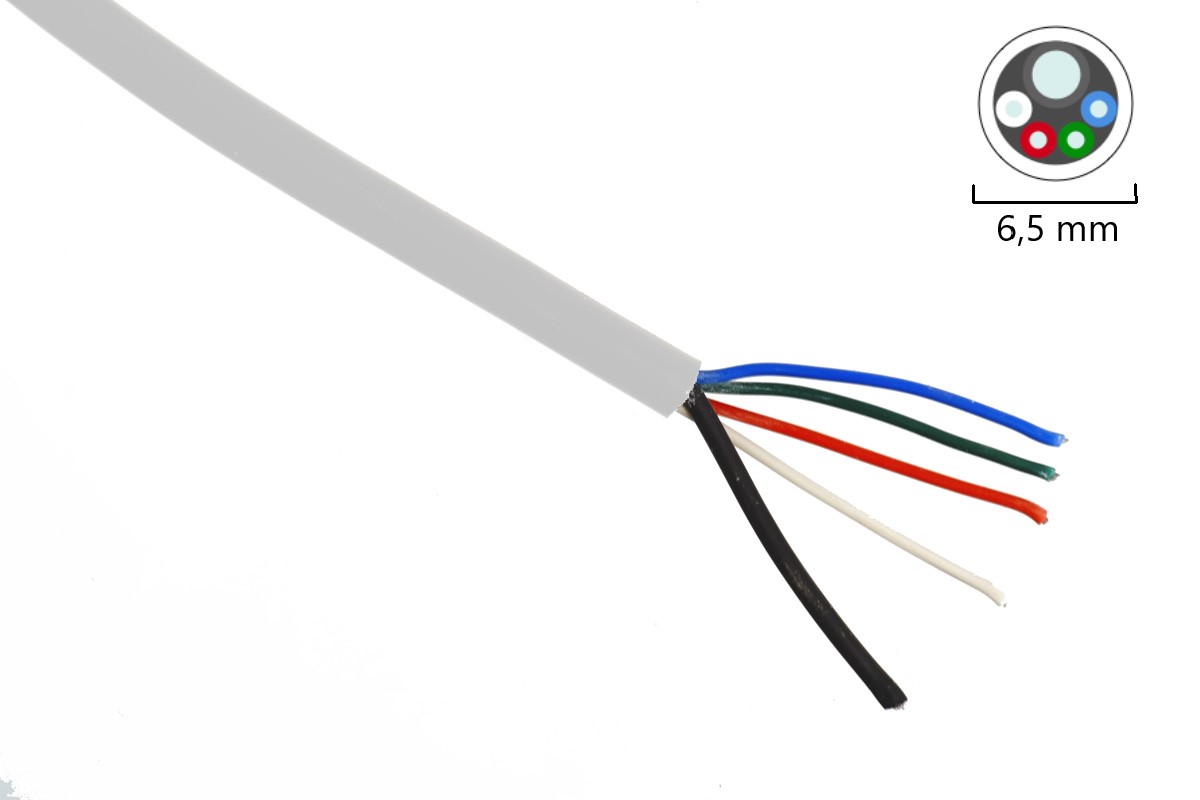

RGBW cable 4x0,35mm² + 1x1,0mm² - white
This cable is optimal suitable for our 4in1 RGBW LED strips. All color line power (RGB and white) have a diameter of 0.35mm². For the common voltage supply (common plus) 1.0mm² is available. This cable has a PVC jacket and is therefore more flexible than the halogen-free version.
Scope of delivery: RGBW cable - length according to your quantity specification
Note
It can be difficult to solder the common positive wire with 1.0mm² cross-section to the sometimes quite narrow solder pads of the LED strip. 2 solutions are available here:
1. after you have stripped the 1.0mm² wire, cut off about half of the individual copper wires again at this end. The now significantly reduced cross-section of the wire is much easier to solder to the LED strip.
2. take a short piece (10cm) of wire with a smaller cross-section, e.g. 0.5mm². Solder this to the LED strip and then connect it to the 1.0mm² positive wire of the RGBW cable. For the connection, you can use a WAGO clamp or you lead both cables into a wire end sleeve, crimp them and (before!) slide a heat shrink tube over them for insulation.
Technical data:
Max. Current load: 10A total, 3.5A per channel
Temperature range: -5° to +70°C
Outer diameter: 7mm
PVC sheathing
| Cable version: | 5-core |
|---|
