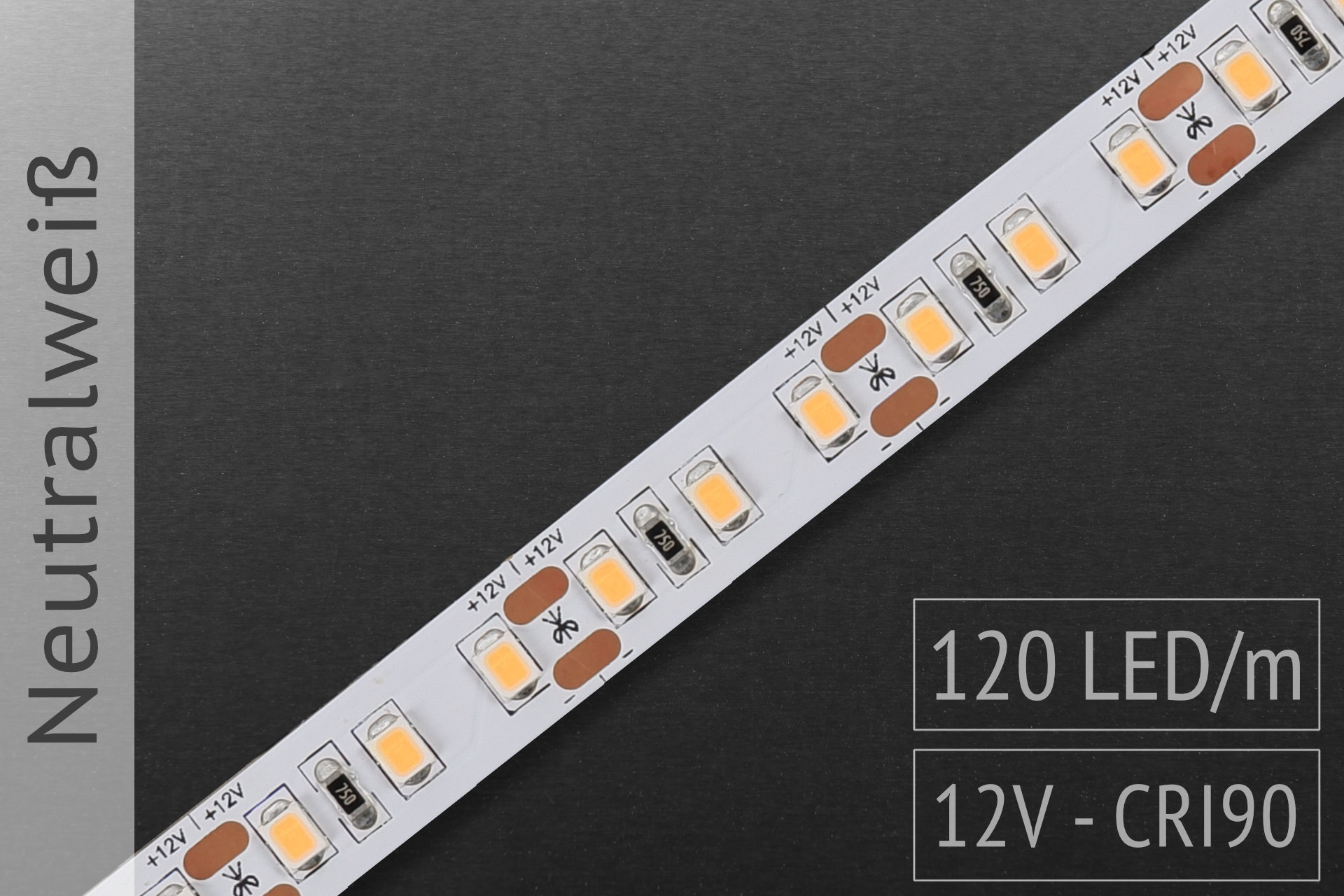

Sale: LED Strip 2835 - 120LEDs/m - 2.000lm/m - 4.000K neutral white
€42.50*
% €85.00* (50% saved) previously €85.00*
Content:
5 Meter
(€8.50* / 1 Meter)
Available, delivery time: 3-5 days
Product number:
LK04-14-40
Available stock:
20
- LED type: 2835 - 120LED/m
- Brightness: approx. 2,000 lm/m
- Color rendering: High CRI>90
- Voltage: 12 Volt
- Power: 19,2 Watt/m
- Width: 10mm
Price for 1 roll = 5 meters
An LED strip with optimal price/performance ratio and high CRI>90 (color rendering index), suitable for many applications. Whether it is luminaire construction, indirect lighting or cove installations. With approx. 2,000lm/m, the LED strip is more than sufficiently bright and is the standard variant in our range.
All variants have a 15cm connection cable, 3M adhesive tape on the back for mounting and can be split every 2.5cm.
Notes on accessories:
To operate 5m (1 roll) of LED strips, a 12V power supply with min. 106 Watt is required. 5m x 19.2W/m + 10% safety = 106 Watt.
For brightness control of 5m a driver with min. 9 Ampere is needed. 106W / 12V = 9 Ampere.
Answers to frequently asked questions can be found in our FAQ.
Properties "Sale: LED Strip 2835 - 120LEDs/m - 2.000lm/m - 4.000K neutral white "
| Beamangle (θ | FWHM): | 120° |
|---|---|
| Brightness lm/m: | 2000 |
| Color consistency: | SDCM < 3 |
| Color rendering: | CRI>90 |
| Color rendering CQS: | 92 |
| Color rendering TLCI: | 95 |
| Color rendering TM30-20 Rf: | 91 |
| Color rendering TM30-20 Rg: | 99 |
| Color temperature: | 4000K neutral |
| Connecting cable: | 10 cm |
| Dimmable: | Yes, with PWM LED drivers |
| Energy efficiency class (EEK): | F |
| LED stripe hight: | 2 |
| LED stripe length: | 5m (max. 30m available) |
| LED stripe width (mm): | 10 |
| LED type / size: | 2835 |
| Lifetime: | 50.000h (L70/B10) |
| Mounting: | Integrated 3M adhesive tape |
| Nominal power: | 20 |
| Operating temperature: | -20°C to +40°C |
| PCB colour: | white |
| Seperatable every (cm): | 2,5 cm |
| Voltage: | 12V |
| Water protection: | IP20 without waterprotection |
| LED/m: | 120 |
Data according to manufacturer. Errors and changes reserved.
Manufacturer
LED-Studien GmbH
Mühlenweg 15
04451 Panitzsch
info@led-studien.de
datasheet
Skip product gallery
Power Supply
Power supply 12V - 12.5A - 150Watt
€64.00*
Meanwell switching power supply HLG-150, 12V / 12.5A / 150W
Overload protection by current limitation, auto recovery
protected against short circuit, overload, overvoltage
built-in PFC circuit
for indoor and outdoor use (IP65)
adjustable output voltage
adjustable current limitation
Note on the connection of LED drivers
The HLG-150-12 offers a lot of power and therefore a high current of up to 12.5 amps. If possible, use both voltage inputs on all drivers with dual voltage inputs (++--). All larger drivers usually have dual voltage inputs. It is best to order two 3-way WAGO distributors so that you can split the +/- output cables of the HLG-150 into 2 cables each, which you then run in parallel to the driver inputs. Alternatively, you can use a driver Y-connection cable in combination with luster terminals.
Technical data:
Model
HLG-150-12
Voltage
12V
Maximum power
150W
Current
12.5A
Adjustable voltage range
10,8 - 13,5V
Voltage input
230VAC
Overcurrent protection
95...108%
Inrush current, max.
65A
Input voltage range
90...305V AC (47...63Hz), 127...431V DC
Power factor
0,92
Working temperature
-40...+70°C
Dimensions
228x68x39mm (LxWxH)
Weight
1,150g
Product number:
LED1165
Skip product gallery
Recommended Drivers
Radio dimmer LK55-2 | 1 x 8A
€36.00*
The 1 x 8 amp driver offers only one output and is therefore only suitable as a dimmer. Due to the 8 amps, however, very powerful LED components can be connected. At 24 volts, for example, LED components up to 170 watts are possible. The driver is installed between the power supply and the LED component.
It is ideally suited for small and medium installations, as well as a supplement for larger installations. The driver belongs to the LK55 series and can be combined with all dimmer remote controls available there.
NOTES:
All drivers of our LK55 series remember the last setting even in case of power loss.
RGBW and CCT color temperature remote controllers have no function on the LK55-2 LED dimmer.
Technical data:
Voltage: 12V-48V DCPower: Power connection via external switching power supply (not included)Load: 1 x 8A (1 x 4A at 48V DC)Min. dim level: <1% (for RGB/W <3%)Connection: input: V+/ground, push button; output: V+/groundIP class: IP 20
Dimensions: LxWxH 95x37x20mm
Operation via pushbutton input
The LK55-2 offers 2 green screw terminals on the back for a button input. For example, a simple pushbutton can be connected to this and thus control the light without radio. Short keystroke switches the LEDs on and off. Long keystroke dims the LEDs up and down. Instead of a pushbutton, in principle only 2 cables can be connected, which are then held together short or long.
Video tutorial for dimming via radio
Video tutorial for dimming via cable with PUSH DIM
Product number:
LK55-2
Skip product gallery
Suitable Radio Control for Drivers
Handheld remote control touch wheel | 4 zones
€49.00*
Brightness control
up to 4 light zones operateable
Touch wheel for adjusting the brightness
1 Channel
3 memory keys for individual settings
All remote controls can operate all drivers / receivers of the LK55 series and, if required, also the WiFi driver LK35.
It is also possible for several remote controls to operate one driver. E.g. a handheld remote control and an additional wireless wall panel or several wireless wall panels at different positions in the room. If required, up to 8 remote controls can operate 1 driver.
NOTICE:
The LK55 remote control for pure dimming should not be used in combination with CCT LED strips (adjustable color temperature) or RGBW LED strips, but only for pure white LED strips with fixed color temperature. Background: When dimming via you would lose all color settings here, because the LED drivers drive all outputs (RGBW or WW/KW) down or up identically. Instead, dim via the appropriate CCT or RGBW remote controls.
Technical data:
Item no.
LK55FB1
Power supply
3 x 1,5V AAA batteries
Dimensions (LxWxH)
120x55x17mm
Operation:
This video explains the functions of the LK55FB1:
Product number:
LK55FB1
Remote control with rotary knob | wall mounting
€34.00*
Color:
white
for 1-channel receivers of the LK55 series Controllable zones: 1 Battery operation: 3V DC, CR2025
All remote controls can operate all drivers / receivers of the LK55 series and, if required, also the WiFi driver LK35.
It is also possible for several remote controls to operate one driver. E.g. a handheld remote control and an additional wireless wall panel or several wireless wall panels at different positions in the room. If required, up to 8 remote controls can operate 1 driver.
The range of the radio signal is up to 30m. Visual contact is not necessary. Solid walls made of concrete, brick or similar naturally weaken the radio signal.
Power supply:
Note that some models are powered by a battery (coin cell) that must be replaced every 1-2 years. This applies to all pushbutton and potentiometer models.
All models with touch field can be supplied via the 230V house network, so that no battery change is required.
Combination with switch series of well-known manufacturers
The housing frame of the controls measures 86x86mm with a depth of 12mm. In case you want to combine the wall control with light switches, sockets etc., the following switch series are similar in design and dimensions:
MERTEN M-Plan
GIRA E2 (flat installation)
JUNG Serie A Creation
KOPP HK i8
ROHDE+ROHDE
Check the exact dimensions directly with the manufacturers.
NOTICE:
The LK55 remote control for pure dimming should not be used in combination with CCT LED strips (adjustable color temperature) or RGBW LED strips, but only for pure white LED strips with fixed color temperature. Background: When dimming via you would lose all color settings here, because the LED drivers drive all outputs (RGBW or WW/KW) down or up identically. Instead, dim via the appropriate CCT or RGBW remote controls.
Technical data:
Item no.
LK55W
Power supply
110-240VAC
Dimensions (BxWxD)
86x86x12mm, Installation depth: 20mm
Product number:
LK55Ww
Remote control with button | 1 zone | wall mounting
€39.00*
Select variant:
Button
Pushbutton/dimmer for wall mounting or, thanks to the ultra-flat design, directly for gluing or screwing onto the wall.
for universal driver of the LK55 series
Operateable zones: 1
Power supply: 3V CR2430 battery
Use in a standard switch series
Since the stylus uses the standardized 55mm dimension (55x55mm), another frame can also be used. The central pushbutton can be removed and inserted into the frame of a known switch series, e.g. JUNG AS 500, MERTEN M, GIRA System 55 or GIRA E2. All major manufacturers have switch series in their program that fit the 55 standard dimension.
LK55 series
All remote controls can operate all drivers / receivers of the LK55 series and, if required, also the WiFi driver LK35.
It is also possible for several remote controls to operate one driver. E.g. a handheld remote control and an additional wireless wall panel or several wireless wall panels at different positions in the room. If required, up to 8 remote controls can operate 1 driver.
The range of the radio signal is up to 30m. Visual contact is not necessary. Solid walls made of concrete, brick or similar naturally weaken the radio signal.
NOTICE:
The LK55 remote control for pure dimming should not be used in combination with CCT LED strips (adjustable color temperature) or RGBW LED strips, but only for pure white LED strips with fixed color temperature. Background: When dimming via you would lose all color settings here, because the LED drivers drive all outputs (RGBW or WW/KW) down or up identically. Instead, dim via the appropriate CCT or RGBW remote controls.
Technical data:
Item no.
LK55K1w
Power supply
3V CR2430 batteries
Dimensions (BxWxD)
86x86, Installation depth: 13mm
Installation:
Product number:
LK55K1w
