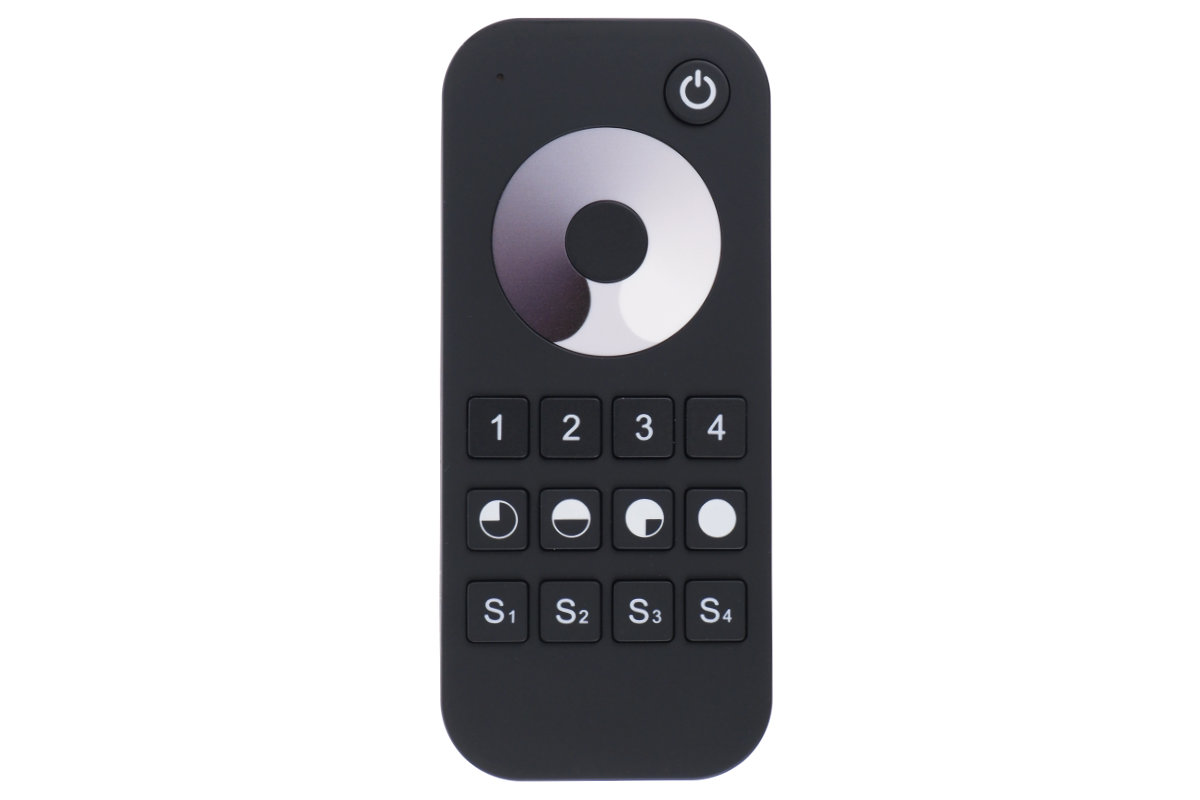

Handheld remote for LK146 dimmers | 4 zones
Product number:
LK146FB2
Available stock:
50
RF hand-held remote control for the LK146 dimmer. 4 zone, 4 memory locations.
Incl. wall bracket.
Technical data:
- Dimensions (LxWxH): 127 x 53 x 18mm
- Range: up to 30m in free field
- Power supply via 2 x AAA battery
Manufacturer
LED-Studien GmbH
Mühlenweg 15
04451 Panitzsch
info@led-studien.de
Skip product gallery
Suitable drivers
Inline dimmer 12-48V | 1x20A
€42.00*
This inline LED dimmer can be easily connected between the power supply unit and LED strips and allows convenient dimming via a rotary potentiometer. In the end position, the LEDs are completely switched off.The dimmer can control LED components such as LED strips from 12 - 48V. It also allows dimming of the new 48V LED strips for particularly long installation lengths.The PWM frequency can be set in 4 steps between 500Hz, 2KHz, 8 KHz and 16 KHz via DIP switches. With 8 and especially 16 KHz, the dimmer is also ideally suited for flicker-free video recordings, for example. A further DIP switch allows you to switch between linear and logarithmic (gamma 1.6) dimming behavior.Depending on the choice of PWM frequency and voltage range, the controller can process different currents between 8A (16KHz PWM, 48V) and 20A (500Hz PWM, 24V). More detailed information can be found directly on the housing.A small display shows the set dim value. This can also be used to set the fade on/off time to 0.5 or 3s. If required, an additional RF remote control (see recommended accessories) can be linked to the dimmer.
Technical data:
Dimensions (LxWxH): 117 x 75 x 20mm (+ 13mm potentiometer)Voltage range: 12 - 48VDCMax. Current: See housing imprintPWM frequency: 0.5 - 16 KHzShort-circuit and overload protection
Product number:
LK146-1
PushDim LED dimmer 12-48V | 1x15A
€42.00*
This PushDim LED dimmer can be easily connected between the power supply unit and LED strips and allows convenient dimming via PushDim, e.g. an usual pushbutton. In the end position, the LEDs are completely switched off.The dimmer can control LED components such as LED strips from 12 - 48V. It also allows dimming of the new 48V LED strips for particularly long installation lengths.The PWM frequency can be set in 4 steps between 500Hz, 2KHz, 8 KHz and 16 KHz via DIP switches. With 8 and especially 16 KHz, the dimmer is also ideally suited for flicker-free video recordings, for example. A further DIP switch allows you to switch between linear and logarithmic (gamma 1.6) dimming behavior.Depending on the choice of PWM frequency and voltage range, the controller can process different currents between 6A (16KHz PWM, 48V) and 15A (500Hz PWM, 24V). More detailed information can be found directly on the housing.A small button allows to change the fade on/off time to 0.5 or 3s. If required, an additional RF remote control (see recommended accessories) can be linked to the dimmer.
Technical data:
Dimensions (LxWxH): 175 x 46 x 27mmVoltage range: 12 - 48VDCMax. Current: See housing imprintPWM frequency: 0.5 - 16 KHzShort-circuit and overload protection
Product number:
LK146-2
