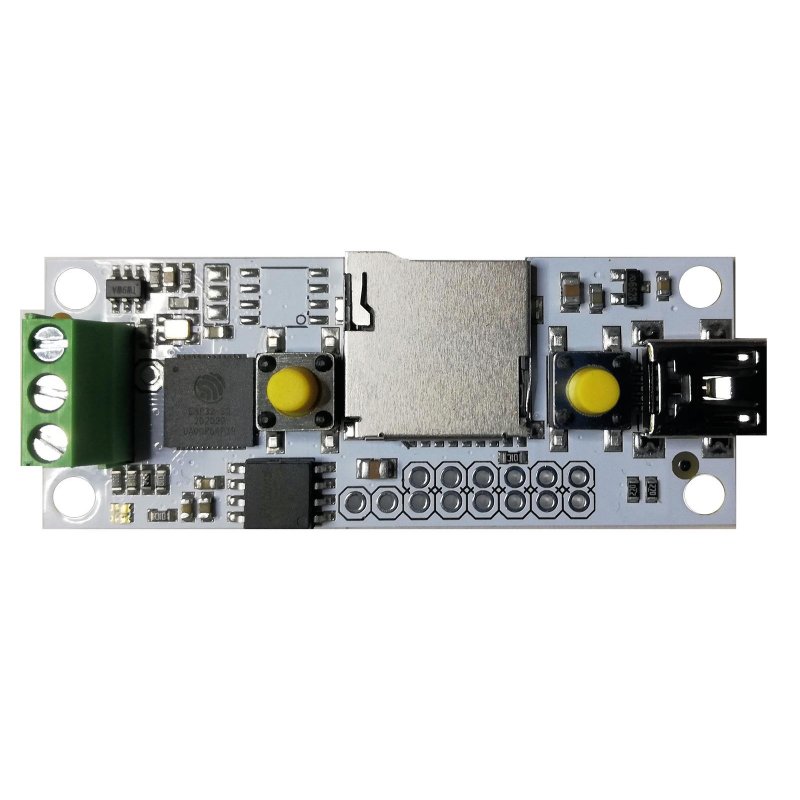

LED pixel driver up to 600 pixels for TPM2 from USB/SD card

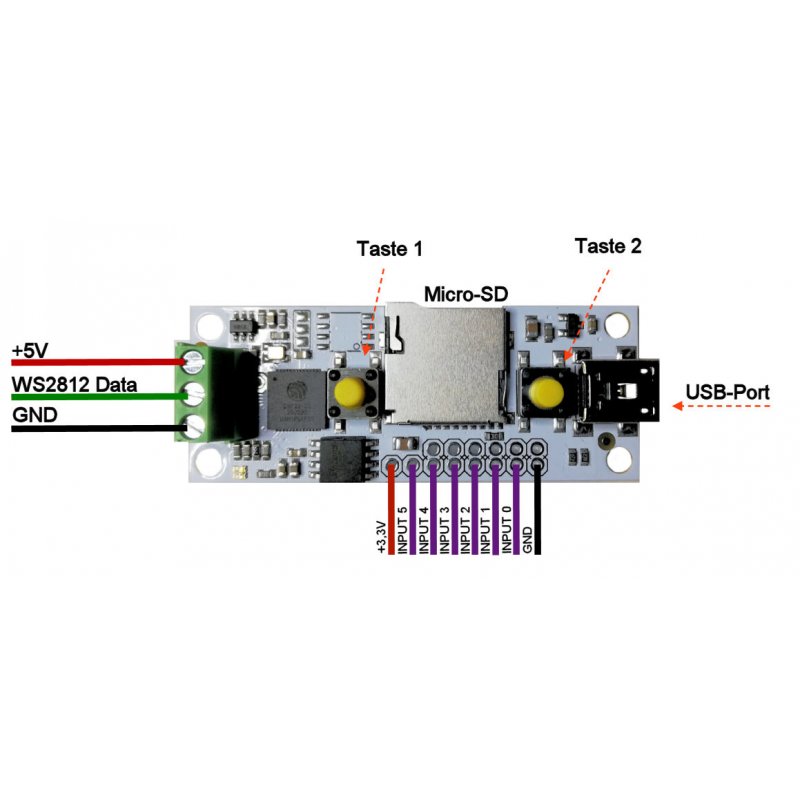

With this driver LED strips/matrixes with up to 600 pixels can be controlled via an output. The animations in TPM2 format are created by software (e.g. J!NX) and can either be output directly via a PC via USB or stored and retrieved on an SD card. The keys can be used to switch between the animations stored on the SD card. The sequence of the animations can also be specified in a configuration file. In this file it is also possible to define the number and color sequence of the pixels, autoplay behavior and brightness. Furthermore, up to 63 animations can be started from the SD card via GPIO pins (e.g. actuated via buttons, microdrivers, etc.).
Scope of delivery:

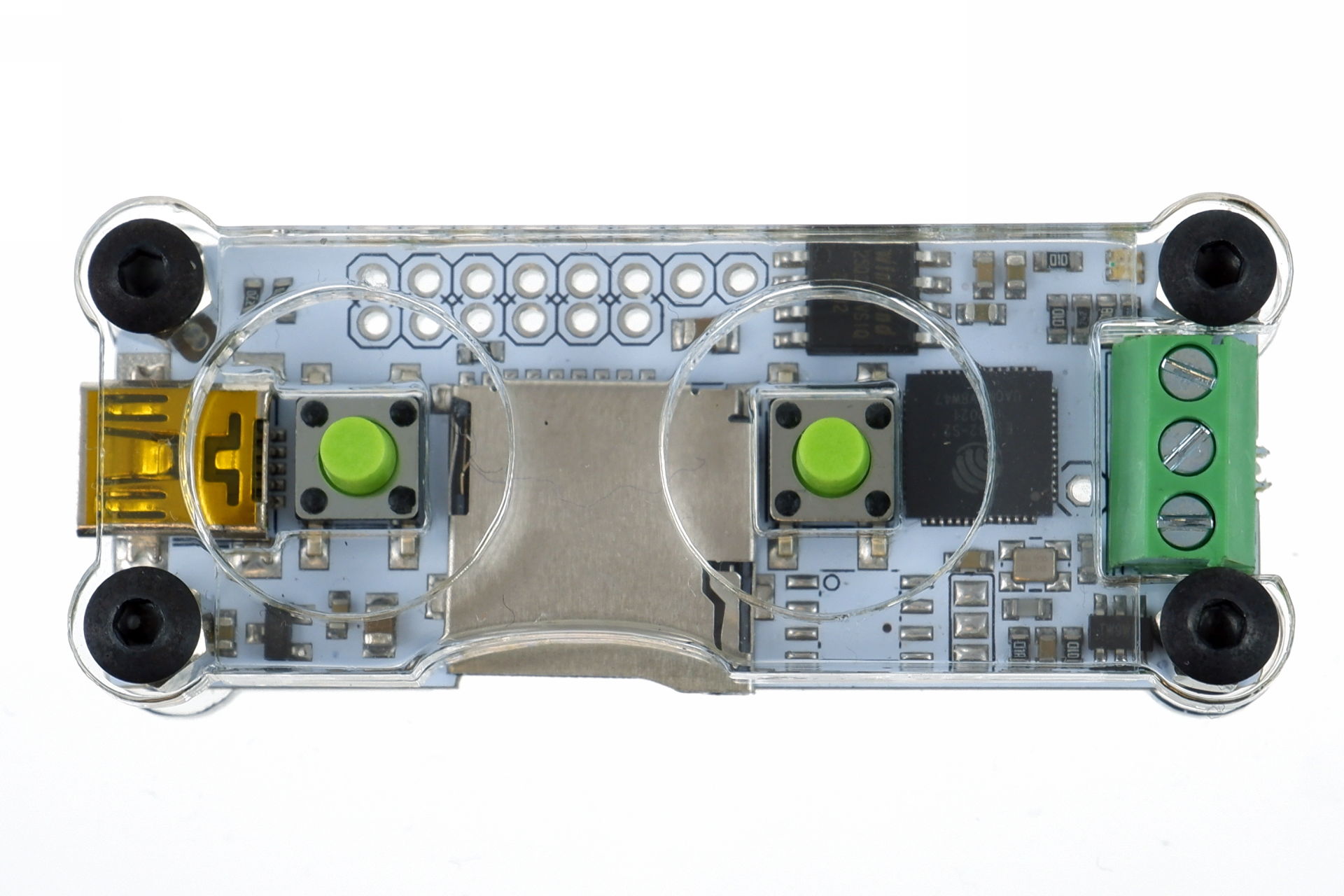

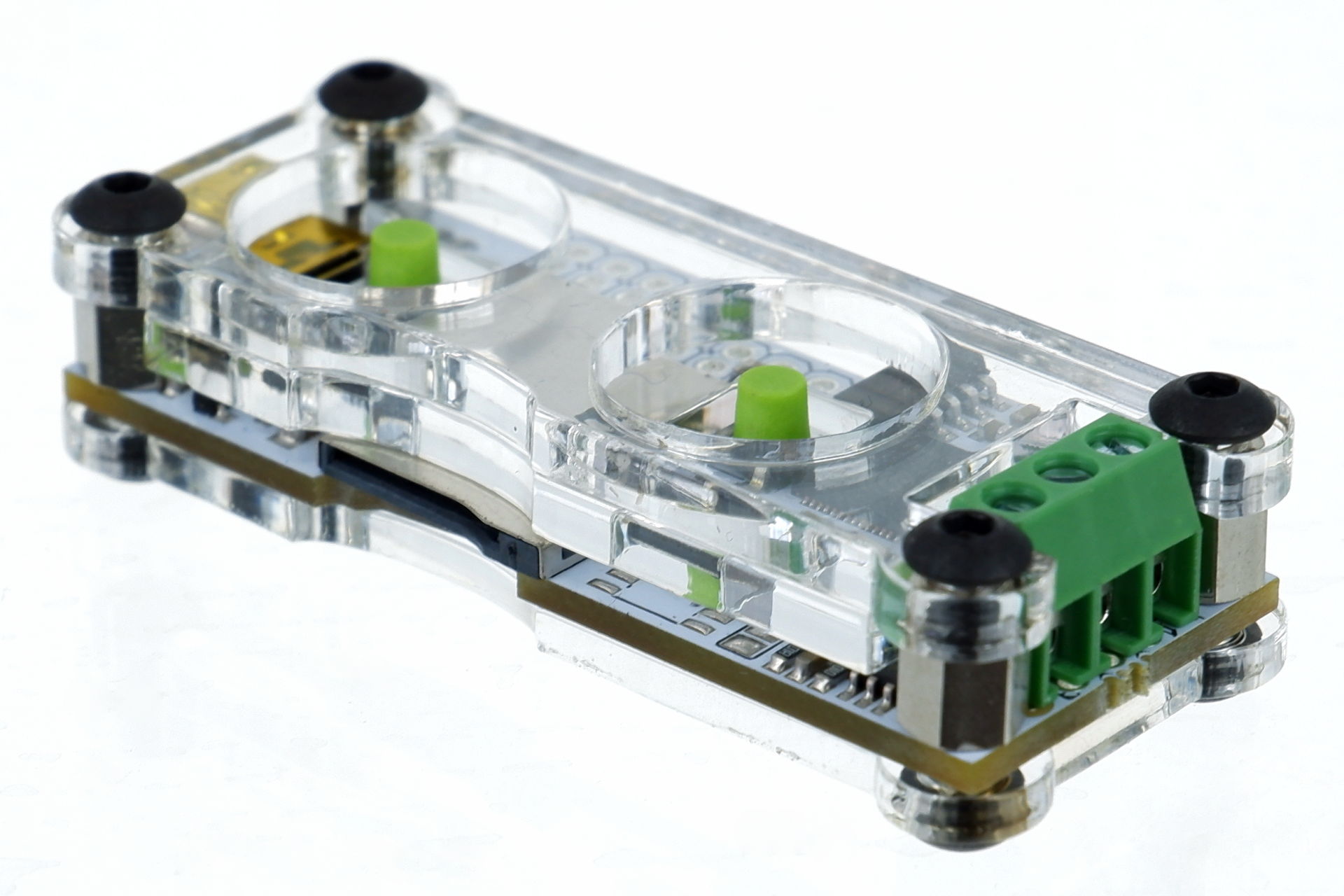

1x LED Pixel-driver ready installed in acyl housing
Technical data:
| Item no. | LK128 |
| Controllable pixels | 1 x 600 |
| Controllable ICs | WS281X / PL9813 / APA106 / SK6812 (RGBW) |
| Voltage input | 5 VDC via mini-USB |
| Output | 1 x 600 pixels |
| Dimensions | L55×W22×H mm |

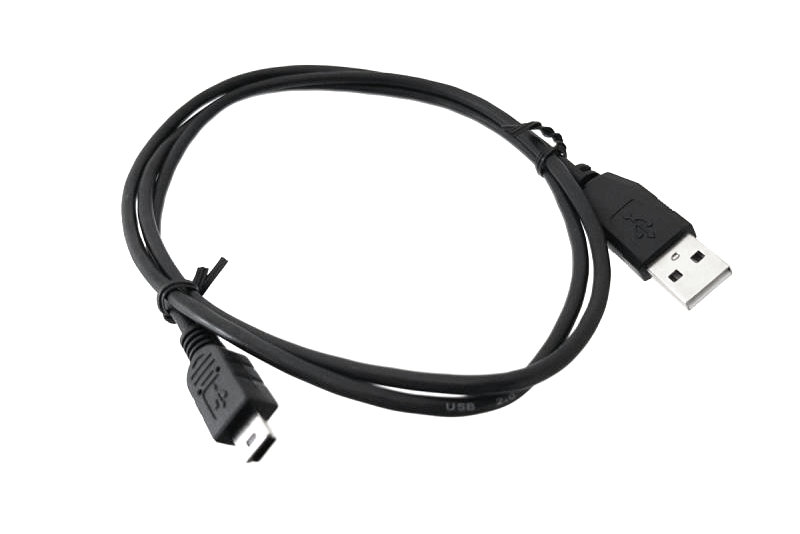

Recommended accessories
