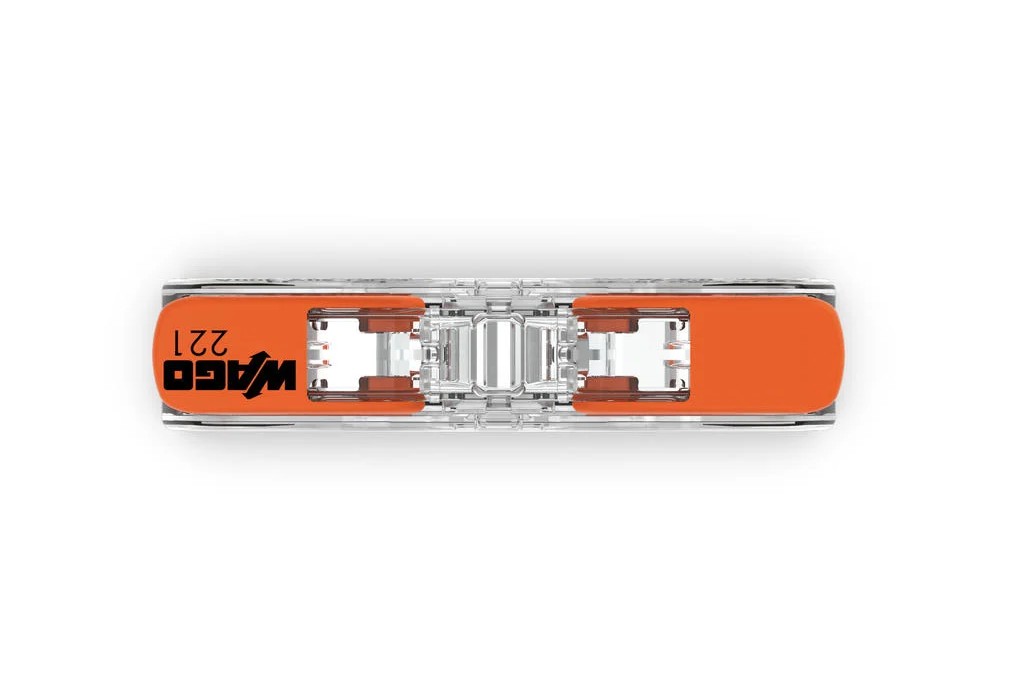

WAGO 221 Terminal 2-pole, narrow
WAGO's new COMPACT connection terminal 221 is suitable for all types of conductors. The operating levers move smoothly, yet you have a wide range for the cross-section and a secure connection.
Technical data:
| Total number of potentials | 1 |
| Color | transparent |
| Design data according to 1 | EN 60664 |
| Rated voltage EN (1) [V] | 450 |
| Rated surge voltage (1) [kV] | 4 |
| Rated current (1) [A] | 32 |
| Connection technology (1) | CAGE CLAMP® |
| Ladder type 1 | solid + stranded |
| Cross section from | 0.2 mm² / 24AWG |
| Cross section until | 4 mm² / 12 AWG |
| Ladder type 2 | finely stranded |
| Cross section from | 0.14 mm² / 24 AWG |
| Cross section until | 4 mm² /12 AWG |
| Stripping length from | 11 mm |
| Wiring type | Passage |
| Flammability class according to UL 94 | V2 |
| Weight [g] | 2,5 |
| Width | 8.1 mm |
| Height | 8.3 mm |
| Depth | 35.5 mm |
