Power supply HLG 24V - 20A - 480 Watt, extremely silent

Meanwell

€155.00*

Prices incl. VAT plus shipping costs

Available, delivery time: 3-5 days

Product number: LED1158

Available stock: 7

Switching power supply Meanwell HLG-480H-24A, 24 Volt, 20 Ampere, 480W - without fan!

overload protection by current limiting, auto recovery, protected against short circuit, overload, overvoltage
built-in PFC circuit
for indoor and outdoor use (IP65)
adjustable output voltage
adjustable current limitation

Note for the connection of LED drivers

If the driver has 2 parallel inputs (++--) please use both parallel voltage outputs of the power supply and connect them to the parallel inputs of the driver.

Technical data:

Model	HLG-480-24
Voltage	24V
Maximum power	480W
Current	20A
Adjustable voltage range	20.4 - 25.2V
Overcurrent protection	95...108%
Inrush current, max.	35A
Voltage input	90...264V AC (47...63Hz), 127...370V DC
Power factor	0,97
Working temperature	-40...+90°C
Dimensions	262x125x43.8mm (LxWxH)
Weight	2,800g

Properties "Power supply HLG 24V - 20A - 480 Watt, extremely silent"

IP protection:	IP65
Power:	480 Watt
Power supply type:	HLG
Voltage:	24V

Data according to manufacturer. Errors and changes reserved.

Manufacturer

MEAN WELL EUROPE N.V.

Langs de Werf 8

1185XT Amstelveen

The Netherlands

^{info@meanwell.eu}

Recommended accessories

WAGO 221 Terminal 2-pole

WAGO terminal: 2-fold

WAGO's new COMPACT connection terminal 221 is suitable for all types of conductors. The operating levers move smoothly, yet you have a wide range for the cross-section and a secure connection. Technical data: Total number of potentials 1 Color transparent Design data according to 1 EN 60664 Rated voltage EN (1) [V] 450 Rated surge voltage (1) [kV] 4 Rated current (1) [A] 32 Connection technology (1) CAGE CLAMP® Ladder type 1 solid + stranded Cross section from 0.2 mm² / 24AWG Cross section until 4 mm² / 12 AWG Ladder type 2 finely stranded Cross section from 0.14 mm² / 24 AWG Cross section until 4 mm² /12 AWG Stripping length from 11 mm Wiring type Side wiring Flammability class according to UL 94 V2 Weight [g] 2,5 Width 13.1 mm Height 8.3 mm Depth 18.6 mm

Product number: W221-2

€0.49*

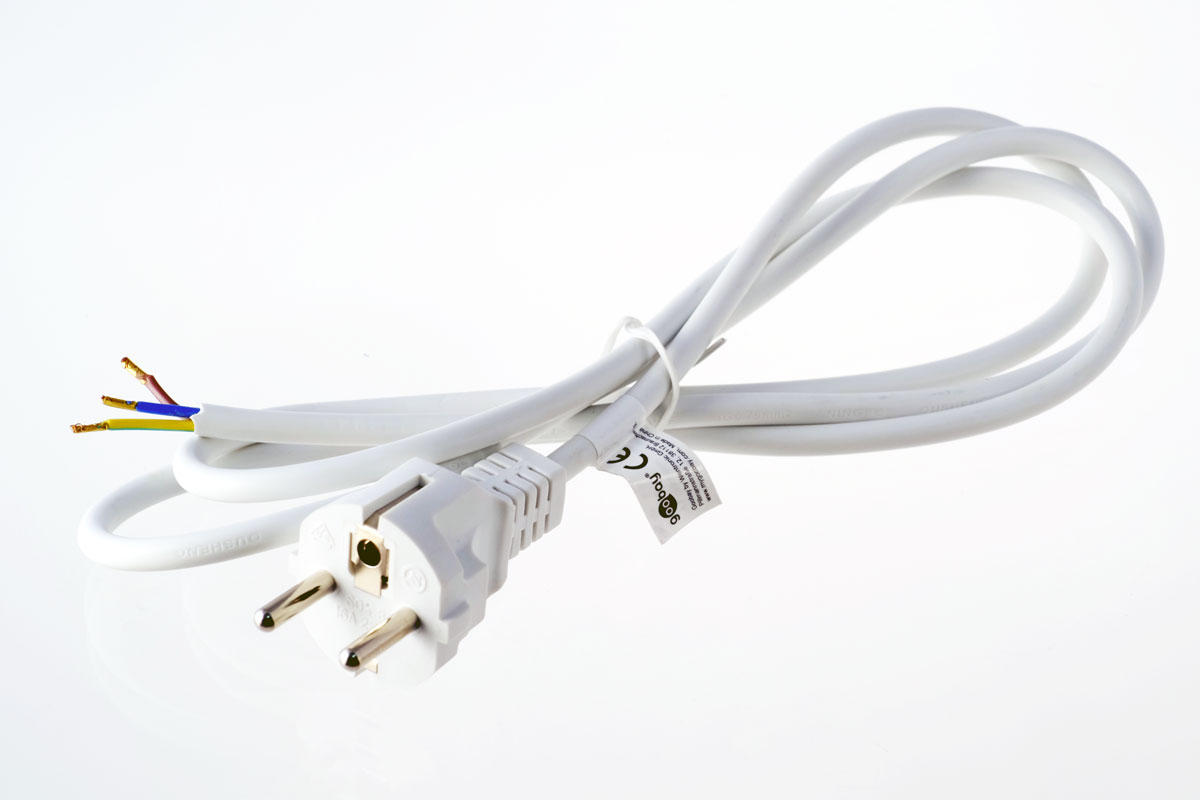

Schuko connection cable, 3-wire, 150cm, white

For all larger power supplies with protective contact leads, such as the entire Meanwell HLG series. Straight grounding plug (CEE 7/4) and open end with wire end ferrules. Notice: The connection of 230V supply lines must never be carried out under current and must be carried out by a qualified electrician. There is a danger to life here!

Product number: K12w

€4.90*

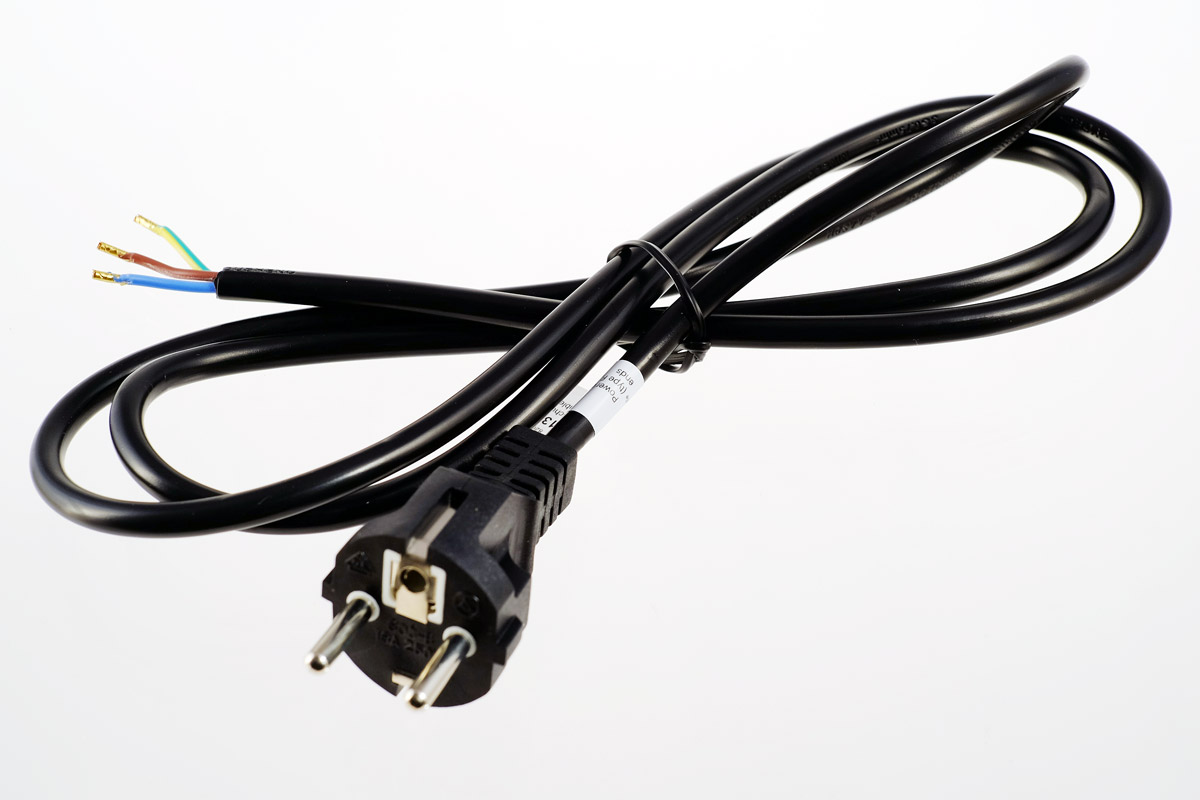

Schuko connection cable, 3-wire, 150cm, black
