2m Tile LED Profile FP5

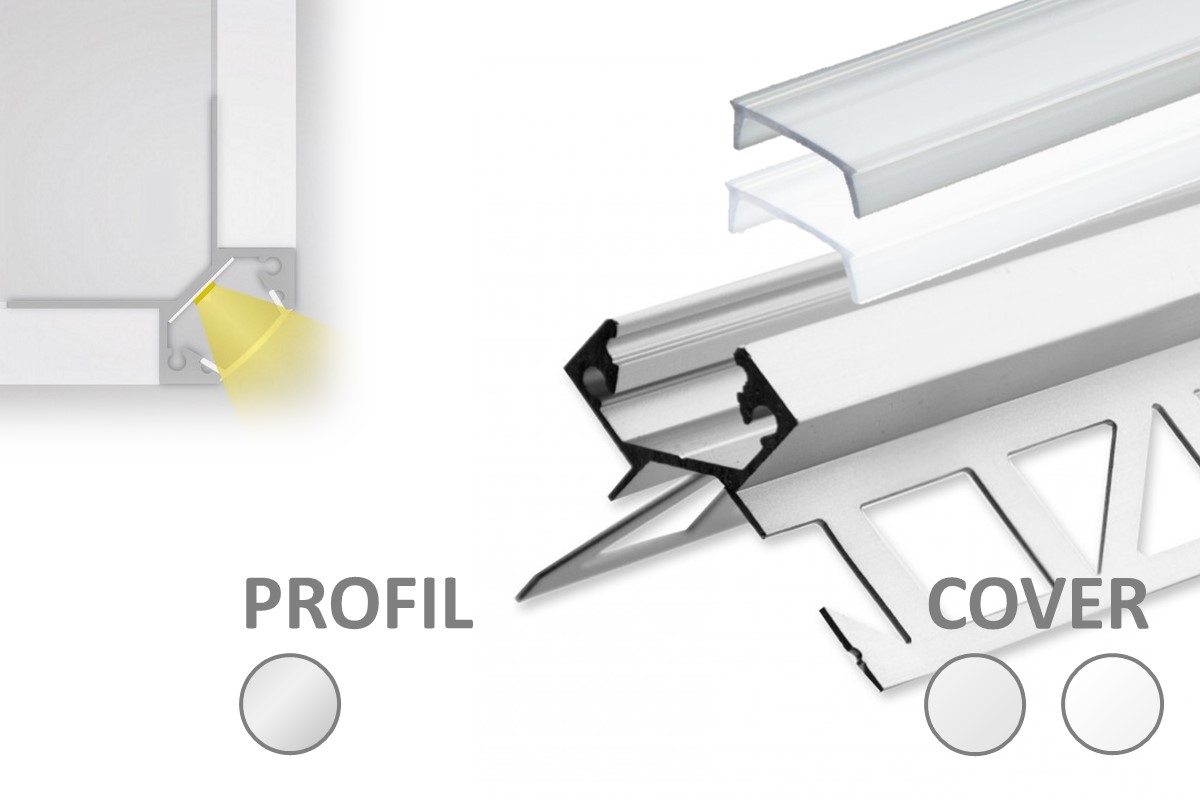

Tile LED profile FP5 for installation in the outer corner of a tile mirror. The profile can accommodate LED strips up to 12mm wide.
Can be supplemented with opal/matt (C1) or transparent (C2) cover.
LED tile profile for LED strips up to 12mm wide for integration into the outside corner of a tile backsplash.
Mounting
This profile system has large-area wings (20mm wide) that can be filled with tile adhesive and thus integrated as the outside corner of a tile mirror. The tiles are glued to the wings.
The self-adhesive LED strip is glued into the LED profile. For excellent adhesion of the self-adhesive LED strip, we recommend thorough cleaning and degreasing of the inside of the profile with a cleaner such as isopropanol or extraction petrol.
After the profile cover has been clicked flush into the profile, the open ends are sealed with silicone. Then the LED profile is filled with tile adhesive to the building structure and finally connected to the LED lighting and control technology (power supply unit / controller).
The LED profile covers (opal/satin - light transmittance 65 % | transparent : light transmittance 85 %) are made of unbreakable and hardly combustible polycarbonate (classification flammability UL94V-2) and close flush.
Moisture protection
Use in wet rooms or outdoors is only possible in sealed form. Special protection against moisture and water is provided by silicone, which is applied to the joints for sealing. Absolute watertightness is achieved with LED profile systems by casting with Wepuran casting resin based on polyurethane resin (PUR).
Technical data:
Width: 27.8mm
Height: 11mm
Width inside for LED strips: 12.4 mm
| Aluprofil Typ: | tile profile |
|---|---|
| Strip width in mm: | 12 |
