KNX LED driver 4-channel | 4x4A - top-hat rail

€149.00*

Available, delivery time 3-5 days

Product number: LK85-H
Available stock: 14

This KNX driver is designed for 4-channel LED applications and can therefore be used e.g. to control RGBW LED systems, for adjustable color temperature or to dim 4 independent zones with white LEDs.  Each of the 4 outputs can be loaded with 4A, which makes even very large installations feasible.

The LED driver works with all known KNX drivers and fits on a common top-hat rail.



Standalone operation

Via the 4 buttons A, B, C, D the channels can also be switched (short press) and dimmed (long press) directly. This makes it possible, for example, to test the LED installation even before the driver is integrated in KNX.



Scope of delivery:

1x Receiver LK85-H

Download EPS application:  https://www.led-studien.de/lk85h-ets



Technical data:

Channels: 4
Voltage: 12V-36V DC
Power: Power connection via external switching power supply (not included)
Load: 4A per output port
Connection: input (V+/ground, KNX) output (4xLED channel, V+)
IP class: IP 20

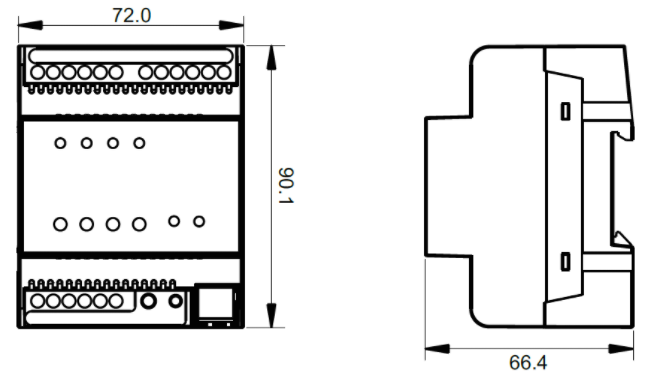

Dimensions: WxHxD 72x91x67mm




Note: The driver has double voltage inputs (++--). For high connected load (> 200 Watt), use our special connection cables for high connected loads (> 200 watts) in order to divide the current load between the two inputs. The large power supplies HLG-480 and HLG-600 already have double voltage outputs, so that both voltage inputs of the driver can be used directly here.
